Page 3Version 2022-12-20 FDMR - Fire damper
TPM 165/22
I. GENERAL
Description
Working conditions
■ Exact damper function is provided under the following conditions
■ maximum air velocity 12 m/s
■ underpressure max. -1200 Pa
■ the air circulation in the whole damper section must be secured as steady on whole surface.
■ Dampers can be installed in position with horizontal or vertical blade axis.
■ Dampers can be installed in position with actuating mechanism on top or on the side of damper.
■ Dampers are suitable for systems without abrasive, chemical and adhesive particles.
■ Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3, class 3K22.
■ Temperature in the place of installation is permitted to range from -30°C to +50°C.
Fire dampers are shutters in ducts of air-conditioning devices
that prevent spreading the fire and combustion products
from one fire segment to the other one by means of closing
the duct in the points of fire separating constructions.
Dampers blade automatically closes air duct using a shutting
spring or an actuating mechanism back spring. Closing spring
is released either by pushing of the button or by thermal fuse.
The back spring of the actuating mechanism is started when
the thermoelectrical starting mechanism BAT is activated,
when a reset button on BAT is pushed or when a power
supply of the actuating mechanism is stopped.
The damper is sealed with a silicon packing against smoke
penetration after closing the blade. At the same time, the
damper blade is bedded in a material which enlarges its
capacity and air proofs the air duct.
Dampers have one inspection hole, as the shutting device and
the inspection hole can be set to the most advantageous
position with respect to operation and handling of the control
device by turning the damper a little in case of the spiro
model of the dampers.

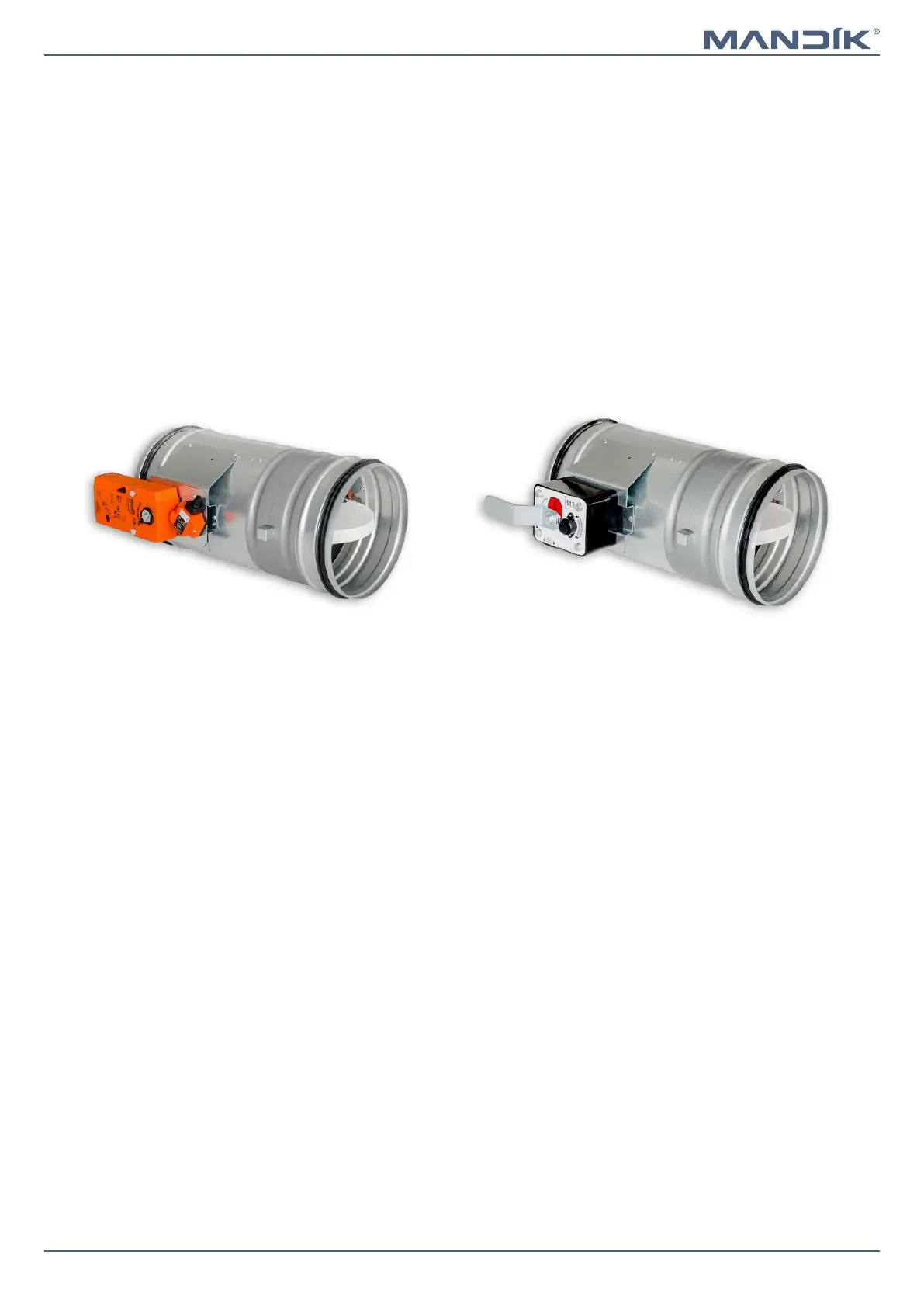

Damper FDMR with actuating mechanism Damper FDMR with mechanical control
Damper characteristics
■ CE certified acc. to EN 15650
■ Tested in accordance with EN 1366-2
■ Classified acc. to EN 13501-3+A1
■ External Casing leakage class min. C acc. to EN 1751
■ Internal leakage min. class 3 acc. to EN 1751
■ Cycling test in class C
10000
acc. to EN 15650
■ Corrosion resistant acc. to EN 15650
■ Certificate of constancy of performance UKCA No. TBD* & UKNI No. TBD*
■ Certificate of constancy of performance CE No. 1391-CPR-2021/0145
■ Declaration of Perfomance UKCA & UKNI No. PM/FDMR/02/22/1
■ Declaration of Perfomance CE No. PM/FDMR/01/22/1
■ Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19c
* Document in process
