Page 5Version 2022-12-20 FDMR - Fire damper
TPM 165/22
Nominal voltage and maximal current AC 230V / 5A
Class of protection IP 67
Working temperature
-25°C … +120°C

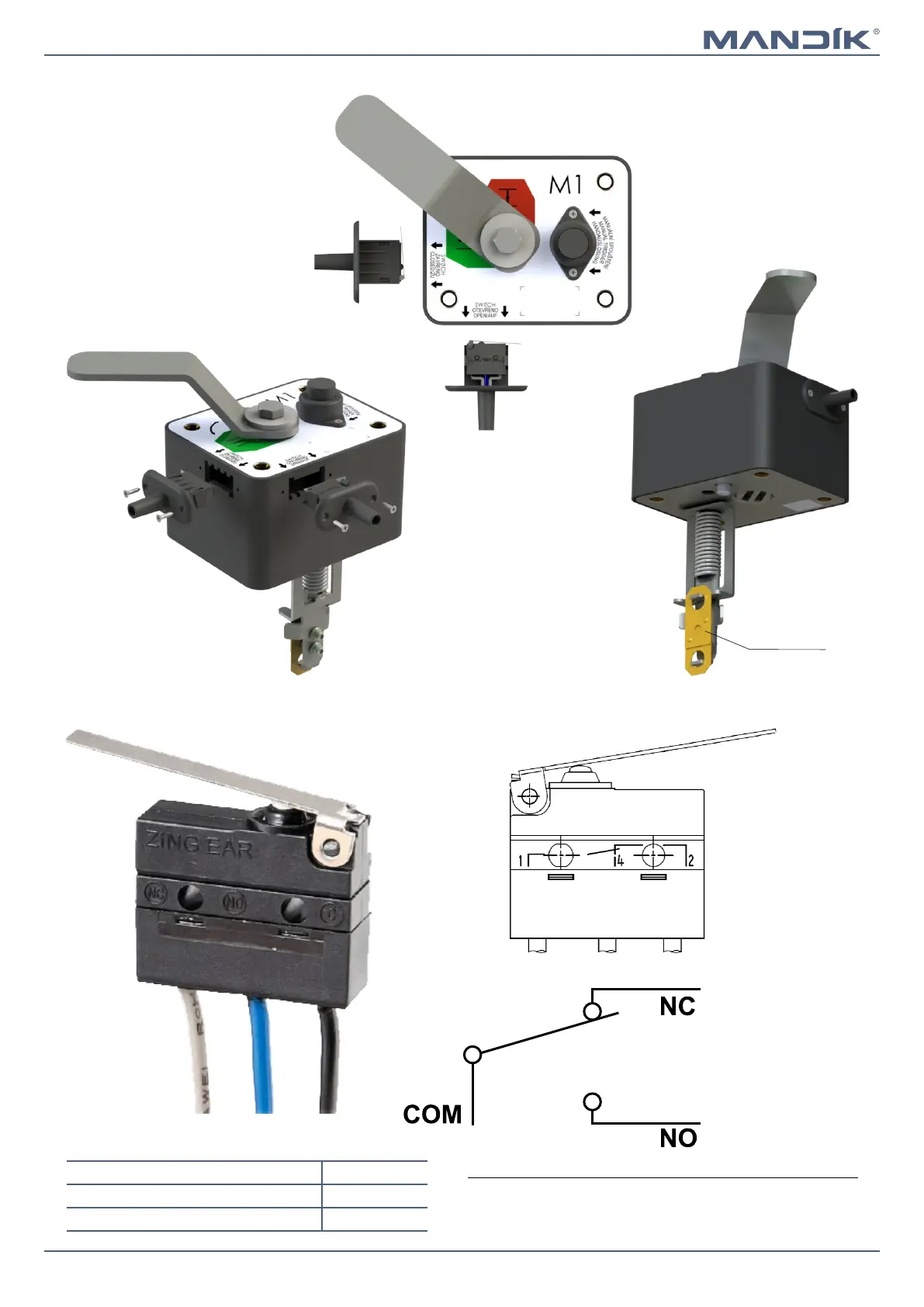

Limit switch G905-300E03W1
This limit switch is possible to connect in following two versions
■ CUT-OFF if the arm is moving … connect wire 1+2
■ SWITCH-ON if the arm is moving … connect wire 1+4
1(COM) - black wire
2(NC) - gray wire
4(NO) - blue wire
Mechanical control
Fusible link
