Page 19Version 2022-12-20 FDMR - Fire damper
TPM 165/22
300
190 5050 50
400
400
240 50 110

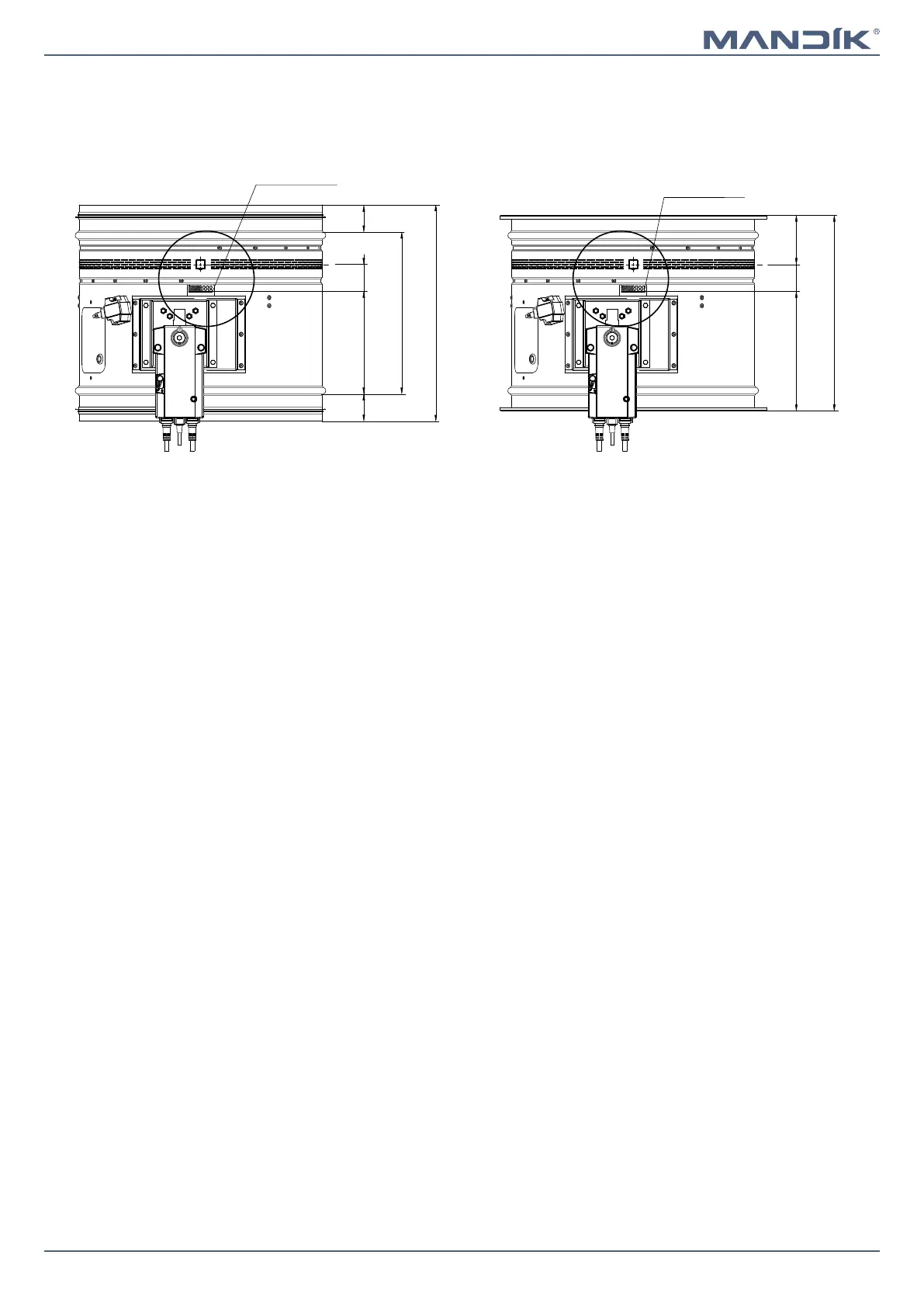

Built in edge
"Wall BUILT IN EDGE sticker" indicates the recommended edge of installation of fire damper into the fire partition structure (wall).
The damper must be installed so that the entire damper blade - in the closed position - is located inside the fire separating structure (wall)
and at the same time the control mechanism and inspection openings are freely accessible.
Built in edge
X
Damper SPIRO
Built in edge
X
Damper FLANGE
