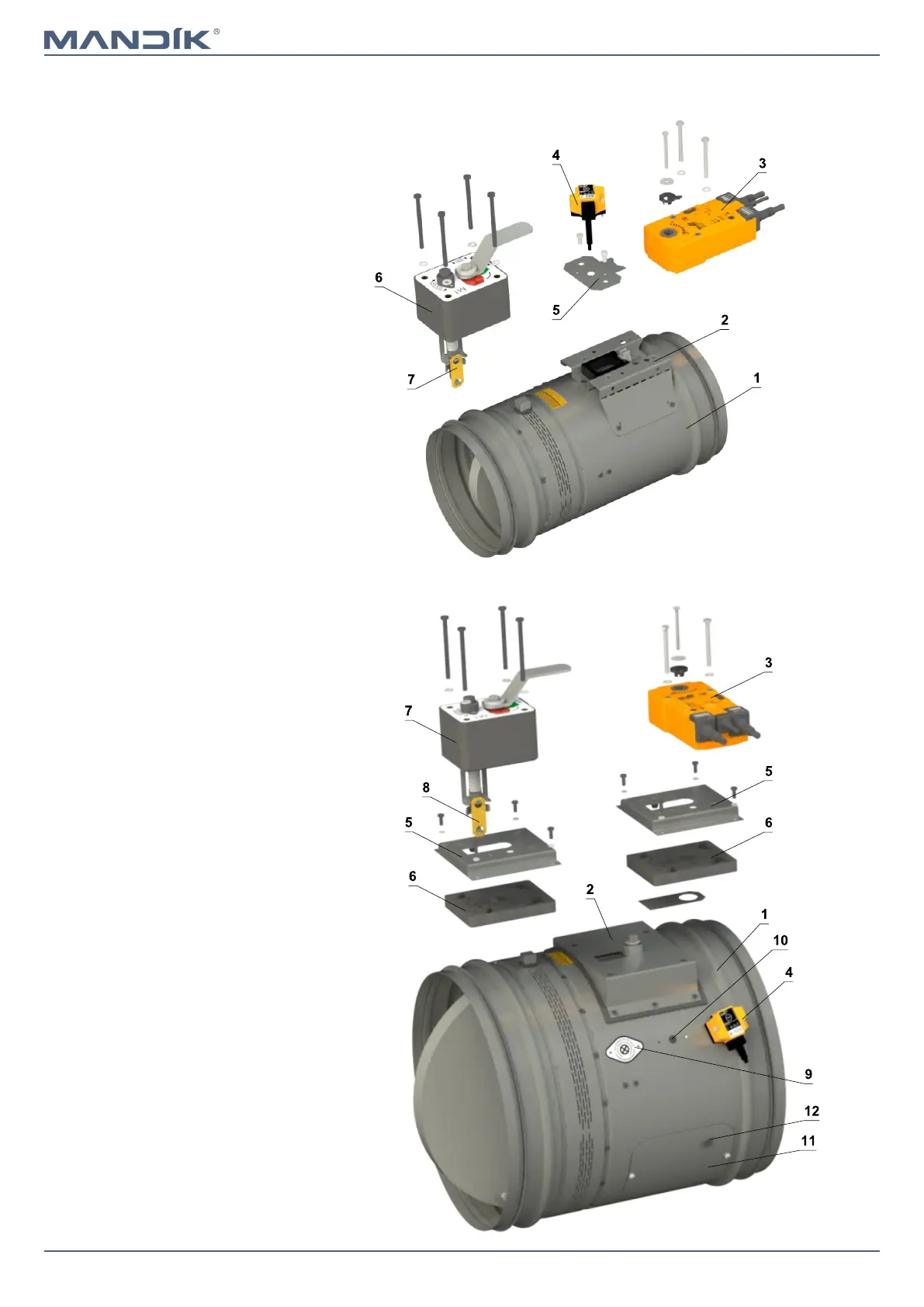

FDMR - Fire damperPage 34 Version 2022-12-20
TPM 165/22
1 Damper
2 Mounting plate
3 Actuating mechanism
4 Temperature sensor
5 Mounting plate cover
6 Seal plates
7 Mechanics
8 Fusible link
9 Sensor sticker
10
Hole for temperature sensor / Sensor sticker
11 Inspection hole covering
12 Hole for camera
Change of mechanical design for the motorised one or vice versa
DN 100 - DN 315
DN 350 - DN 800
1 Damper
2 Mounting plate
3 Actuating mechanism
4 Temperature sensor
5 Mounting plate
6 Mechanics
7 Fusible link
