V.033114
64 M&R Companies 1N 372 Main St. Glen Ellyn, IL 60137 USA
Tel: +630-858-6101 Fax: +630-858-6134 www.mrprint.com | store.mrprint.com
WARNING: To prevent possible injury to personnel and/or damage to the equipment, lock out and tag
the electrical service and compressed air supply to the equipment.

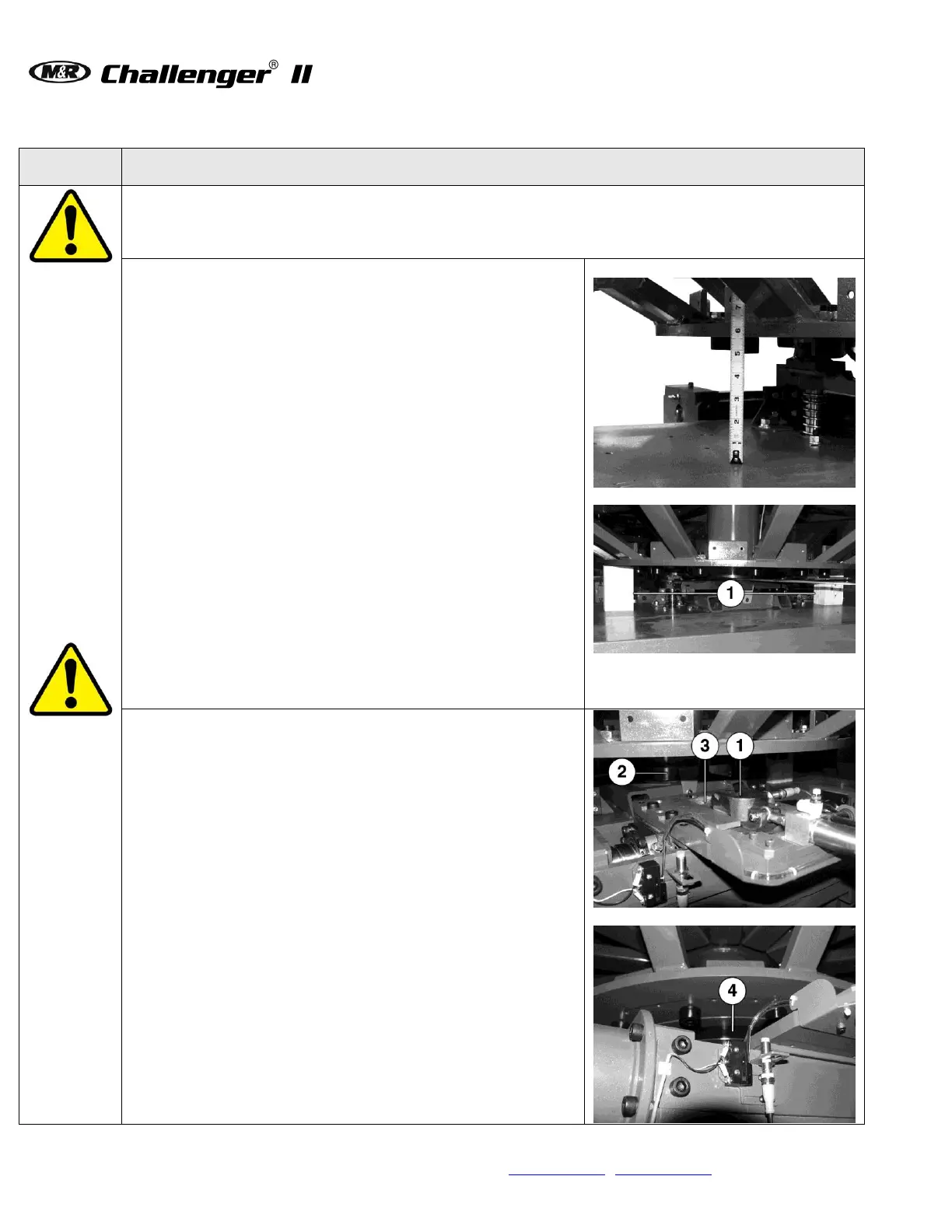

Lubricate Index Clevis Fork, Clevis Plate and Lower
Carousel Plate
Items required:
2 - 4" X 4" Wooden Blocks
1 - Tape Measure
1 - Permatex Super Lube with Teflon Grease
(M&R Part No. 7018034)
1 - Small Brush
1 –Towel
IMPORTANT: This procedure requires electrical power and
compressed air to be connected to the press.
1. With the carousel in the "UP" position, measure the
distance between the bottom carousel plate and the
chassis top plate as shown. Cut 2 pieces of 4" X 4"
wood slightly smaller than the measured distance.
2. Place the wooden blocks on either side of the carousel
center shaft as shown (1).
WARNING: Do not continue until the blocking procedure,
outlined in the previous steps, has been performed. Failure to do
so could result in severe or fatal personal injuries.
3. Use a towel to remove the old grease from the inside
surface of the Index Clevis (1), Index Cam Follower
Bearings (2), and Clevis Plate (3). Use a small brush to
apply a thin coat of new grease to these areas.
4. Use a towel to remove old grease from the bottom
surface of the lower carousel plate. Apply a thin coat of
grease to the bottom of the lower carousel plate where
the Index Pusher Pads make contact (4).
IMPORTANT: If this step is not performed as specified, the
Index Pusher Pads may score a groove into the surface of the
carousel plate.
5. Remove wooden blocks.
To Next Page
