3-24

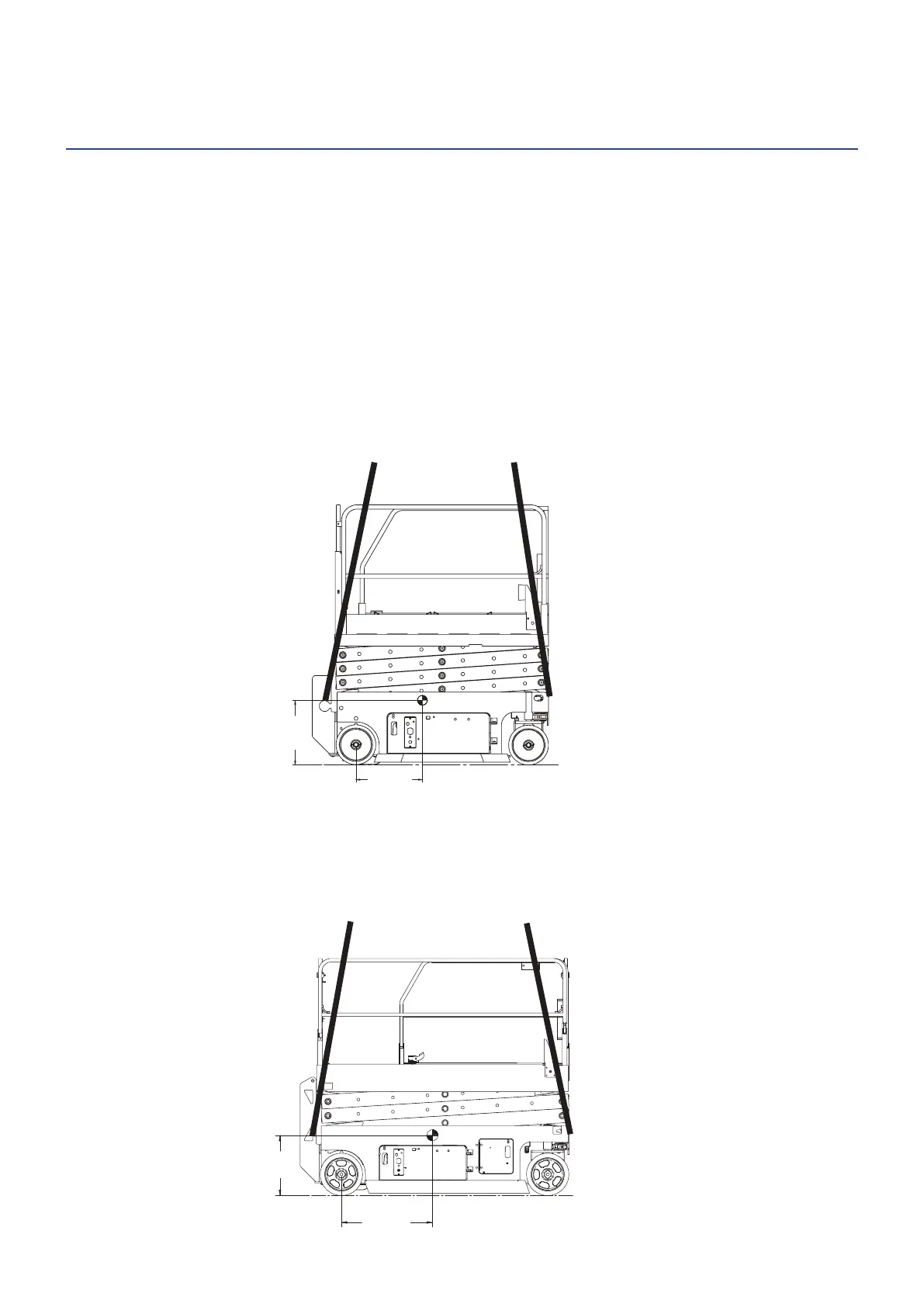

H3 - Fitting slings on the lifting platform
FITTING SLINGS
- Keep in mind the position of the lifting platform’s centre of gravity for lifting it.
- Insert hooks in the anchoring points provided for this purpose.
- Lower the lifting platform completely. Ensure that the extension, the controls and the cowls are all secured. Remove any elements not
fastened to the machine.
- Determine the machine’s centre of gravity using the table and the illustration on this page.
- Attach the tying elements only to the lifting points specified on the machine.
- Adjust the assembly to avoid damaging the machine and to keep it level.
Centre of gravity Axis X Axis Y
78 SEC 50,8 cm 49,5 cm
100 SEC 82,2 cm 59,3 cm
120 SE 83,7 cm 59,9 cm
Axe Y
Points
de levage
sur le châssis
Points
de levage
sur l’échelle
Points
de levage
sur l’échelle
Points
de levage
sur le châssis
Axis
X
Axe Y
Axis
X
78 SEC
100 SEC
120 SE
Lifting
points
on the ladder
Lifting
Points
on the chassis
Lifting
points
on the ladder
Lifting
Points
on the chassis
Axis Y
Axis
X
Axis Y
Axis
X
78 SEC
100 SEC
120 SE
647369 (01/03/2017) 78/100 SEC 2 / 120 SE 2
