Manitou 78 SEC 2 User Manual

2-30
BASE CONTROL INSTRUMENTATION
1- 7 A BREAKER FOR THE ELECTRICAL CIRCUITS
- Location of the 7A breaker

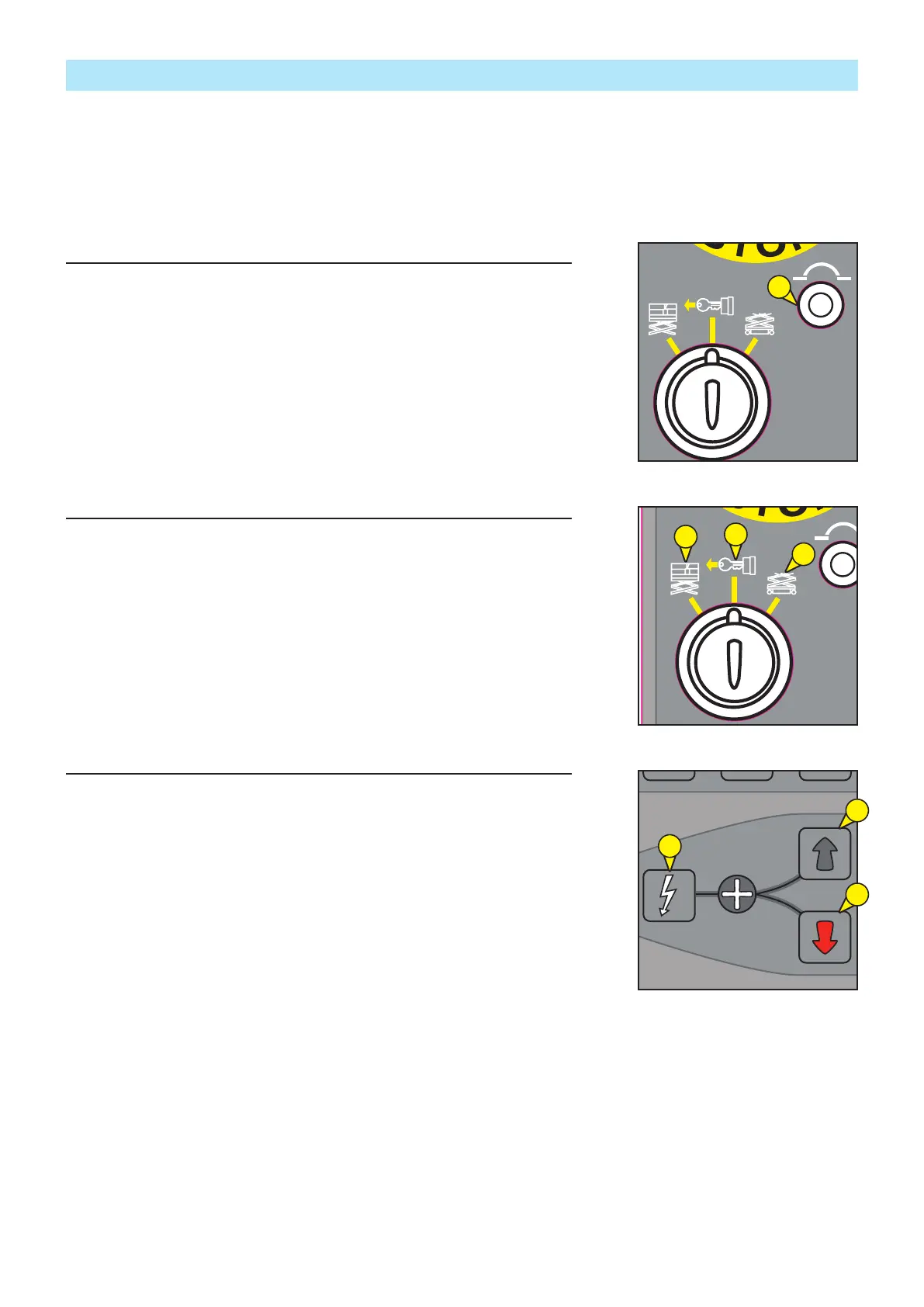

2- 3-POSITION KEY-OPERATED SWITCH (LIFTING PLATFORM/STOP/GROUND)
- Set the ignition switch to Lifting Platform controls (2-a) to switch on the lifting platform
controls.
- Set the ignition switch to the OFF position to switch off the machine (2-b).
- Set the ignition switch to Ground controls to switch on the ground controls (2-c).
NB: Ensure that the red Emergency Stop knobs for the ground controls and the lifting
platform are pulled out to the ON position.
3- PLATFORM LIFTING / LOWERING SELECTOR SWITCH
To activate the lifting platform lowering function:
- Hold down the “Dead Man’s” button (3-a) together with the button (3-b) for activating
the platform lifting function.
- Hold down the “Dead Man’s” button (3-a) together with the button (3-c) for activating
the platform lowering function.
NB:
- Releasing the “Dead Man’s” button stops the selected movement.
- The anti-pothole protection systems must be deployed when performing a lifting
movement.
2b
2c
1
2a
3a
3c
3b
647369 (01/03/2017) 78/100 SEC 2 / 120 SE 2
