Manitou 78 SEC 2 User Manual

2-19
SAFETY
TILT

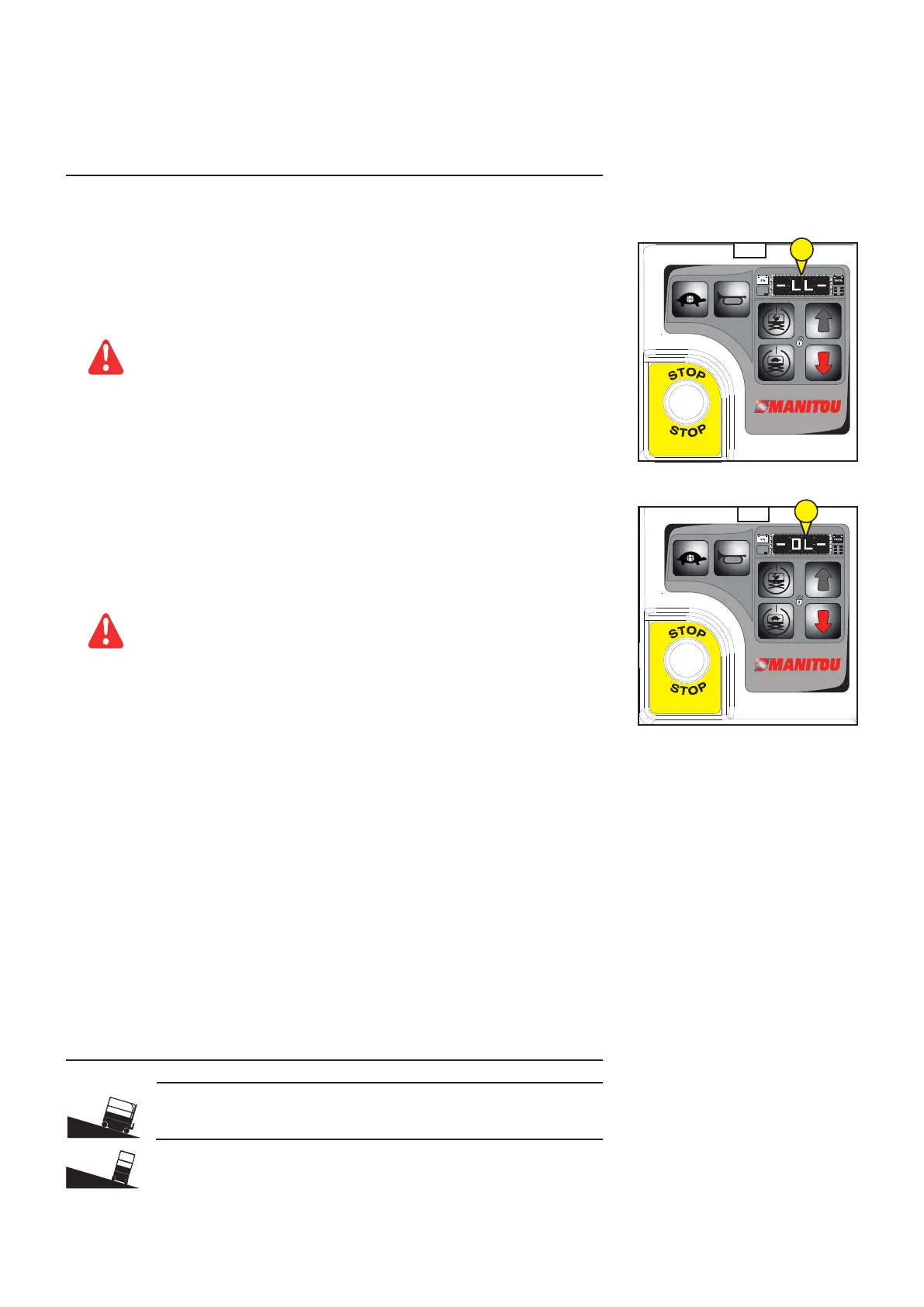

When the lifting platform reaches the maximum authorised level of tilt (see the
CHARACTERISTICS chapter, pages 2-12 to 2-16), the diagnostics display 14* (Fig. A) on the
basket console shows “LL”. The lifting controls alarm should also sound intermittently.
Any “AGGRAVATING” lifting movements are forbidden, as a safety measure.
To resume control, simply perform movements that do not aggravate the
situation:
- Reposition the platf
orm on a more horizontal surface so that you can make
lifting and extension movements.
OVERLOAD
When the lifting platform reaches the maximum authorised weight in the basket (see the
CHARACTERISTICS chapter, pages 2-8 to 2-10), the diagnosis display 14* (Fig. B) on the basket
console shows “OL” intermittently.
No function works. An alarm should sound.
To resume control:
- Relieve the weight in the basket by removing the item or items causing the
overload,
- Push in and then pull out the red Emergency Stop knob to re-initialise the
system.
- If the lifting platform is still overloaded, the indicator light will continue to
flash.
OR,
- Ask someone on the ground to perform a manual basket descent (see the
end of the “Rescue Procedure” in the chapter and “Safety Stickers” in Chapter
1 “Safety instructions and advice”).
* : The above numbers also correspond to those used in the description of these
components on the following pages.
OVERLOAD RECOVERY
If the ground controls LCD diagnostic readout displays Overload Recovery, the emergency
lowering system has been used while the platform was overloaded. For information on how
to reset this message, please consult the appropriate Genie Service Manual.
DRIVING OVER A SLOPE
Take note of the permissible longitudinal and lateral inclinations for the machine and
determine the percentage of slope.
Do not drive the machine over a slope whose angle is greater than the permissible longitudinal
and lateral inclinations for the machine. The permissible inclination applies to machines in the
folded position.
78 SEC - 100 SEC - 120 SE
Max permissible longitudinal inclination,
in folded position
25% (14°)
Max permissible lateral inclination,
in folded position
25% (14°)
Remark: the permissible inclination is subject to the condition of the ground and appropriate
traction.
12
4
3
12
4
3
14
14
A
B
647369 (01/03/2017) 78/100 SEC 2 / 120 SE 2
