Manitou 80 VJR - Dimensions and Diagrams

2 - 6

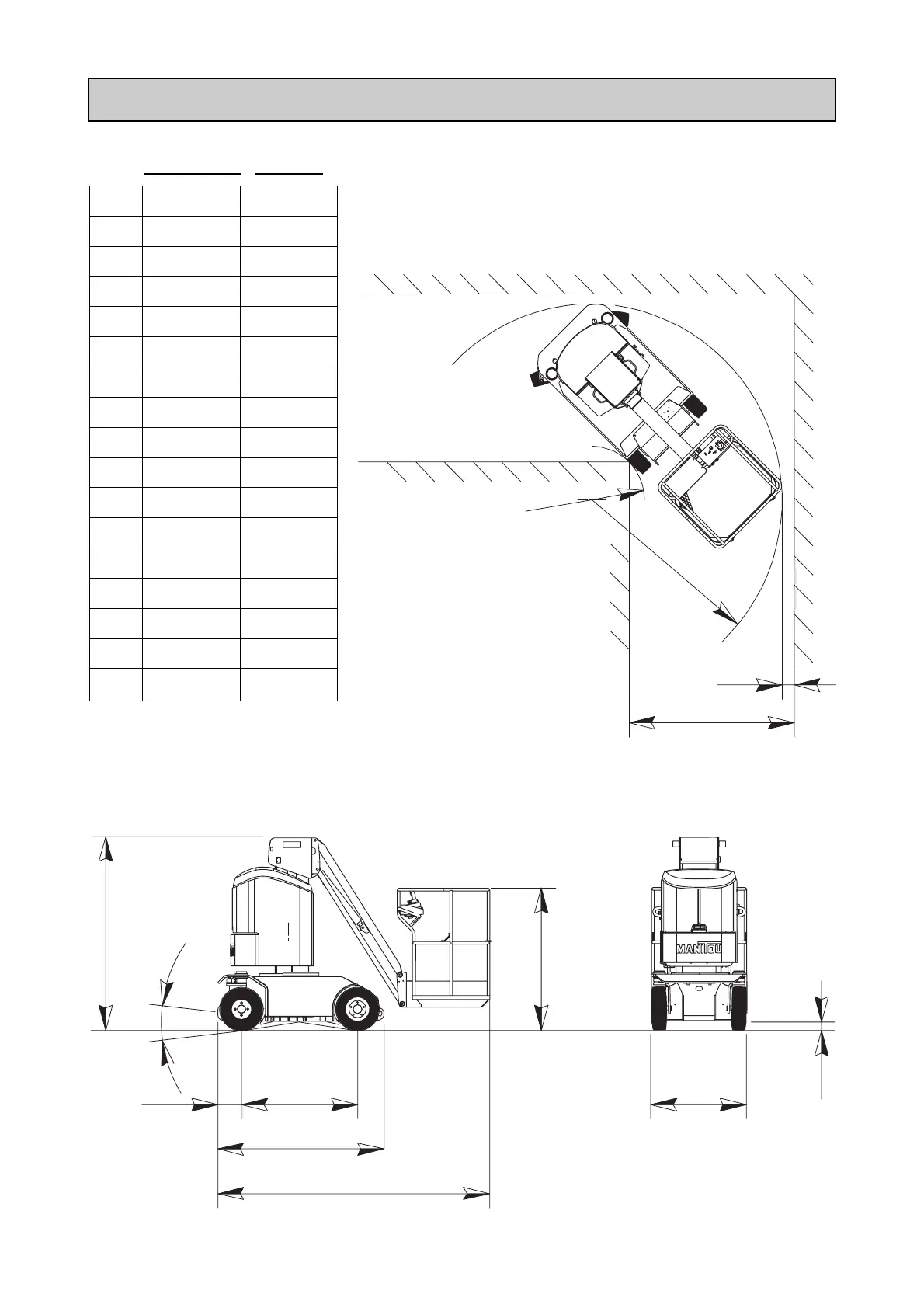

DIMENSIONS
105 VJR 2 80VJR
A 2813 2813
B 1200 1200
C 1990 1990
D85 85
E 244 244
F 1716 1716
G 990 990
H 1467 1467
I 29% 29%
J 1771 1771
K 100 100
L 2026 2026
M 520 520
N 1753 1753
O 2811 2811
P 6795 4347
Q 8320 5870
A
B
C
D
E
F
G
H
I
J
K
L
M
