3 - 9

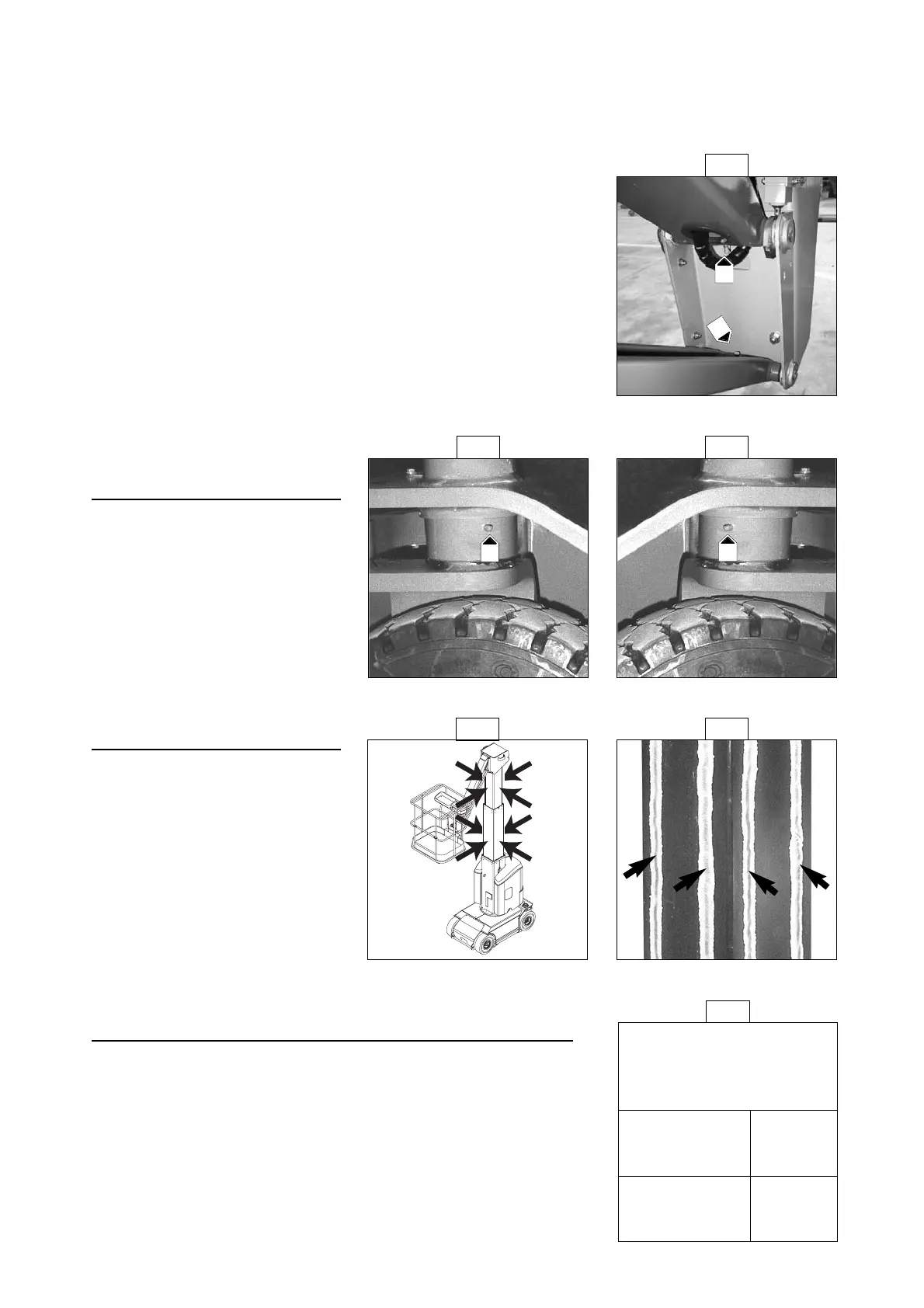

- LUBRICATOR 5 (FIG. C2/3) OF THE AXLE OF THE HEAD OF THE
LOWER PENDULAR ARM.
- LUBRICATOR 6 (FIG. C2/3) OF THE AXLE OF THE HEAD OF THE
UPPER PENDULAR ARM
C3 - GREASE THE
STEERING BEARINGS
- Clean and grease the following parts
with grease, (See chapter
"LUBRICANTS") and take off the
excess.
- LUBRICATOR 7 (FIG. C3/1) OF
THE LEFT STEERING BEARING.
- LUBRICATOR 8 (FIG. C3/2) OF
THE RIGHT STEERING BEARING.
C4 - GREASE THE MAST
- Degrease the mast with a solvent
(Fig. C4/1).
- Apply the lubricant (See chapter
"Lubric
ants") (Fig. C4/2).
C5 - CHECK THE WHEEL NUTS ARE TIGHT.
- Check the wheel nuts are tight (Fig. C5).
Not applying this recommendation can lead to the deterioration and breaking
of the wheel bolts, as well as the deformation of the wheels.
18 daN/m
± 10%
18 daN/m
± 10%
C5
TIGHTENING TORQUE OF THE
WHEEL NUTS
FRONT WHEELS
REAR WHEELS
C2/3
C3/1
C4/2
7
C4/1
C3/2
8
5
6
