Manitou 80 VJR - D3 - Drain and Replace the Hydraulic Oil; D4 - Clean the Strainer of the Hydraulic Circuit

3 - 11

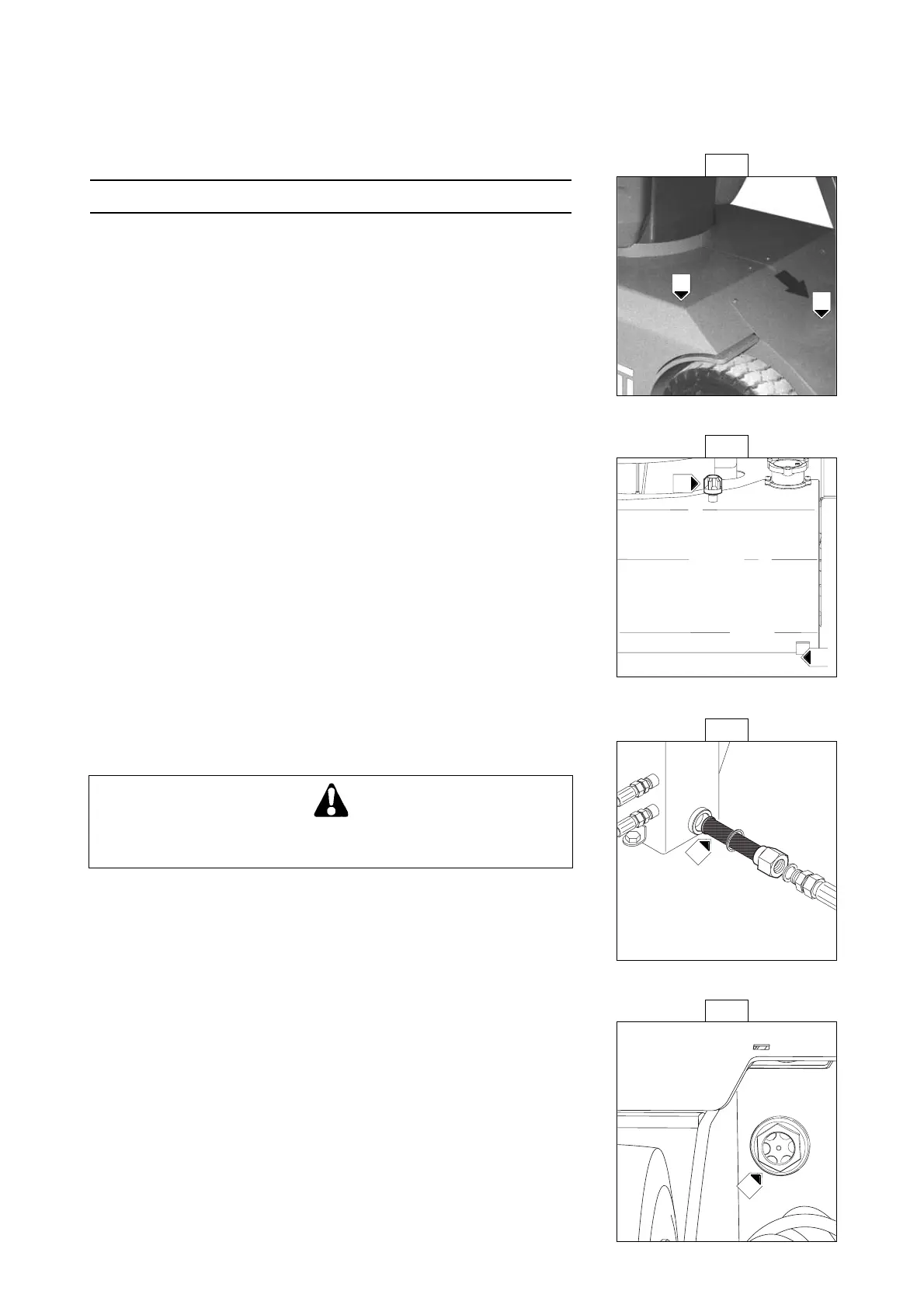

D3 - DRAIN AND REPLACE THE HYDRAULIC OIL
D4 - CLEAN THE STRAINER OF THE HYDRAULIC CIRCUIT
- Place the platform on level ground and in the transportation position.
- Remove the rear chassis cover (Ref.1, Fig. D3/1)
- Remove the left chassis cover (Ref.2, Fig. D3/1)
DRAIN THE OIL
- Place a tray underneath the drain orifice (Ref.3, Fig. D3/2), and unscrew the
drain plug.
- Remove the fill cap (Ref.4, Fig. D3/2), in order to facilitate the drainage
process.
CLEANING THE STRAINER
- Unscrew the strainer 5 (Fig. D3/3) of the tank and clean it using a
compressed air jet.
- Screw the strainer back into position.
FILLING WITH OIL
- Replace and screw up the drain plug (Ref.3, Fig. D3/2).
- Fill up with hydraulic oil (See "Lubricants" section) via the fill orifice (Ref.4,
Fig. D3/2).
- The oil level should reach the middle level of the indicator (Ref.6, Fig. D3/4).
Dispose of the waste oil ecologically. Use a very clean funnel and tray, and
clean the underside of the oil can before filling.
D3/2
3
D3/1
1
2
D3/3
4
5
D3/4
6
