3 - 8

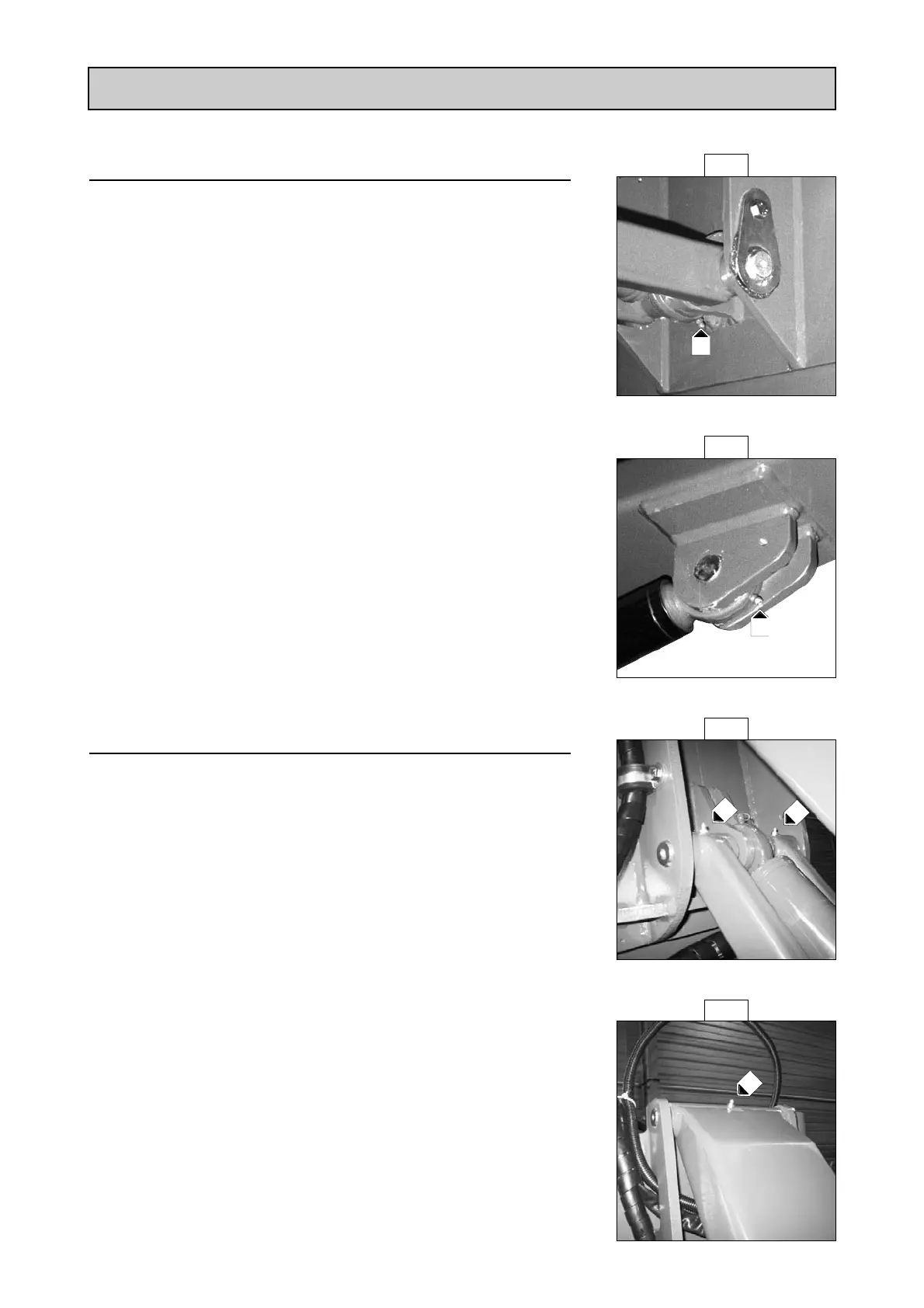

C1 - GREASE THE PENDULAR CYLINDER AXLES
.
- Clean and grease the following parts with grease, (See chapter
"LUBRICANTS") and take off the excess.
- LUBRICATOR 1 (FIG. C1/1) OF THE AXLE OF THE FOOT OF THE
CYLINDER OF THE PENDULAR ARM
- LUBRICATOR 2 (FIG. C1/2) OF THE AXLE OF THE HEAD OF THE
CYLINDER OF THE PENDULAR ARM.
C2 - GREASE THE AXLES OF THE ARMS
- Clean and grease the following parts with grease, (See chapter
"LUBRICANTS") and take off the excess.
- LUBRICATORS 3 (FIG. C2/1) OF THE AXLE OF THE FOOT OF THE
LOWER PENDULAR ARM.
- LUBRICATOR 4 (FIG. C2/2) OF THE AXLE OF THE FOOT OF THE
UPPER PENDULAR ARM.
C - EVERY 50 HOURS OF OPERATION
C1/2
C2/2
2
C2/1
C1/1
1
3
4
3
