Manitou 80 VJR - D - Every 100 Hours of Operation; D: Every 100 Hours of Operation; D1 - Grease the Turret Orientation Crown Wheel; D2 - Check the Tightness of the Screws of the Turret Orientation Crown Wheel

3 - 10
D1 - GREASE THE TURRET ORIENTATION CROWN
WHEEL
- Greasing of the bearing and lubrication channels of the crown wheel should
be carried out every 100 hours of operation, and also before and after long
periods of non-use.
- Grease required: (see "Lubricants" section).

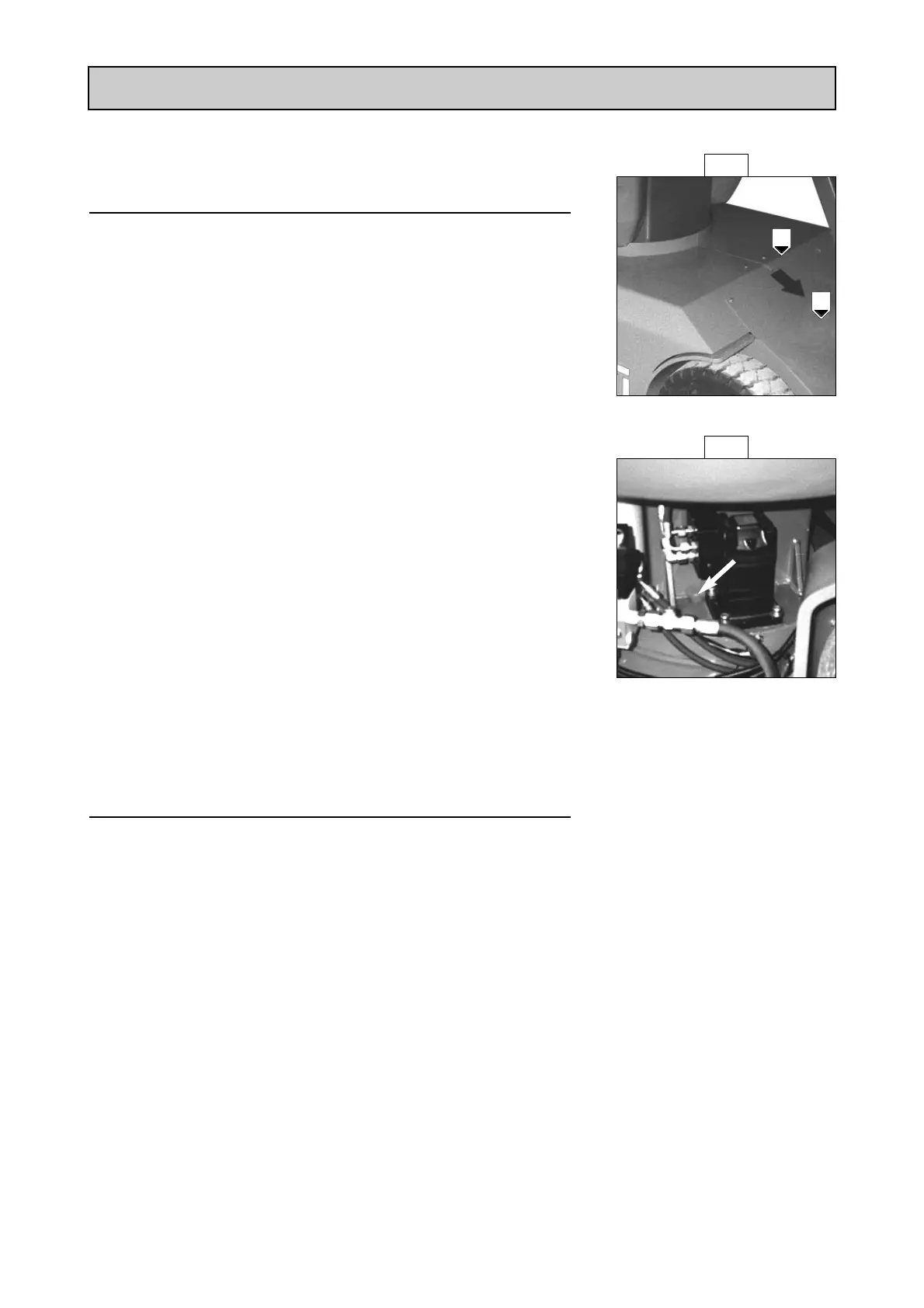

- Remove the rear chassis cover (Ref.1, Fig. D1/1).
- Remove the right chassis cover (Ref.2, Fig. D1/1).
- Reach in to the 2 grease points via the turret orifice provided for this
purpose (Fig. D1/2).
- Remove the roller path casing and apply the lubricant on the roller path and
gear teeth with a brush.
- Lubricant required: (see "Lubricants" section).
D2 - CHECK THE TIGHTNESS OF THE SCREWS ON
THE TURRET ORIENTATION CROWN WHEEL
- This check on the tightness of the screws should be performed no later than
after 50 hours of operation. Thereafter, it should be performed once every
100 hours of operation.
- The theoretical tightening torque of the screws is 12 daN/m ± 10%.
- 1 daN = 1 kg.
D - EVERY 100 HOURS OF OPERATION
D1/1
D1/2
1
2
