3 - 14
E3 - HOISTING THE PLATFORM

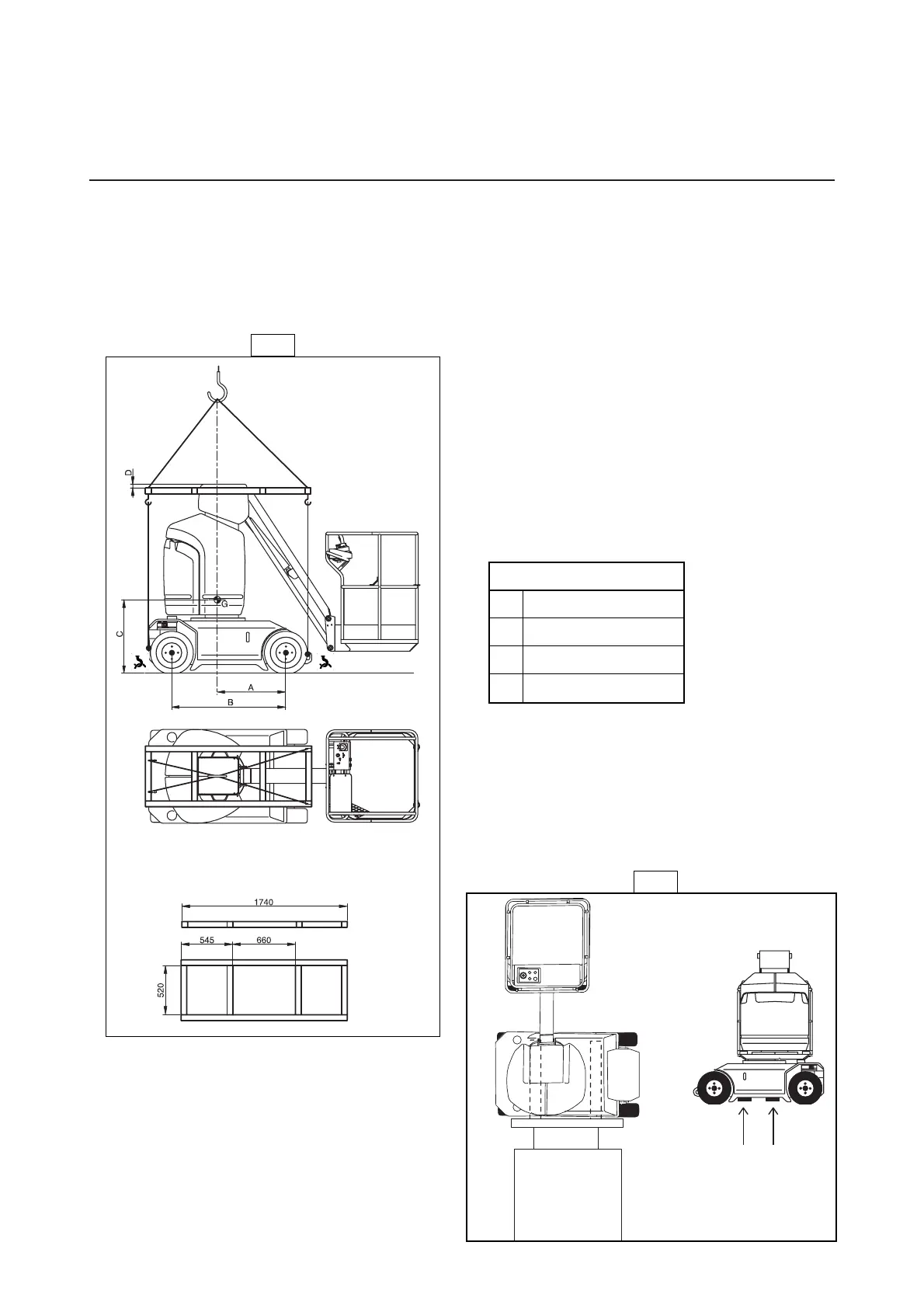

- When lifting the platform, be conscious of its centre of gravity (Fig. E3/1)
- Place the hooks into the lifting eyes provided for this purpose (Ref.A, Fig. E3/1).
- Slightly raise the extension arm so that the cables will not bear upon the platform during the lift.
E3/2
Lift points of
the machine
Forklift
machine
E3/1
105 VJR2 80VJR
A 722 mm
B 1200 mm
C 774 mm
D 40 mm
LIFTING THE PLATFORM.
- When moving the platform using a forklift truck, turn the
turret 90° so as to position the counterweight as close as
possible to the truck and reduce moving out of the load
centre.
Detail of the lift fixture
Dimensions for information
