The Dorado is capable of being internally adjusted from 203mm of travel to 190 or 180mm of travel. This may be done with no change to
the spring rate for a given spring air pressure.

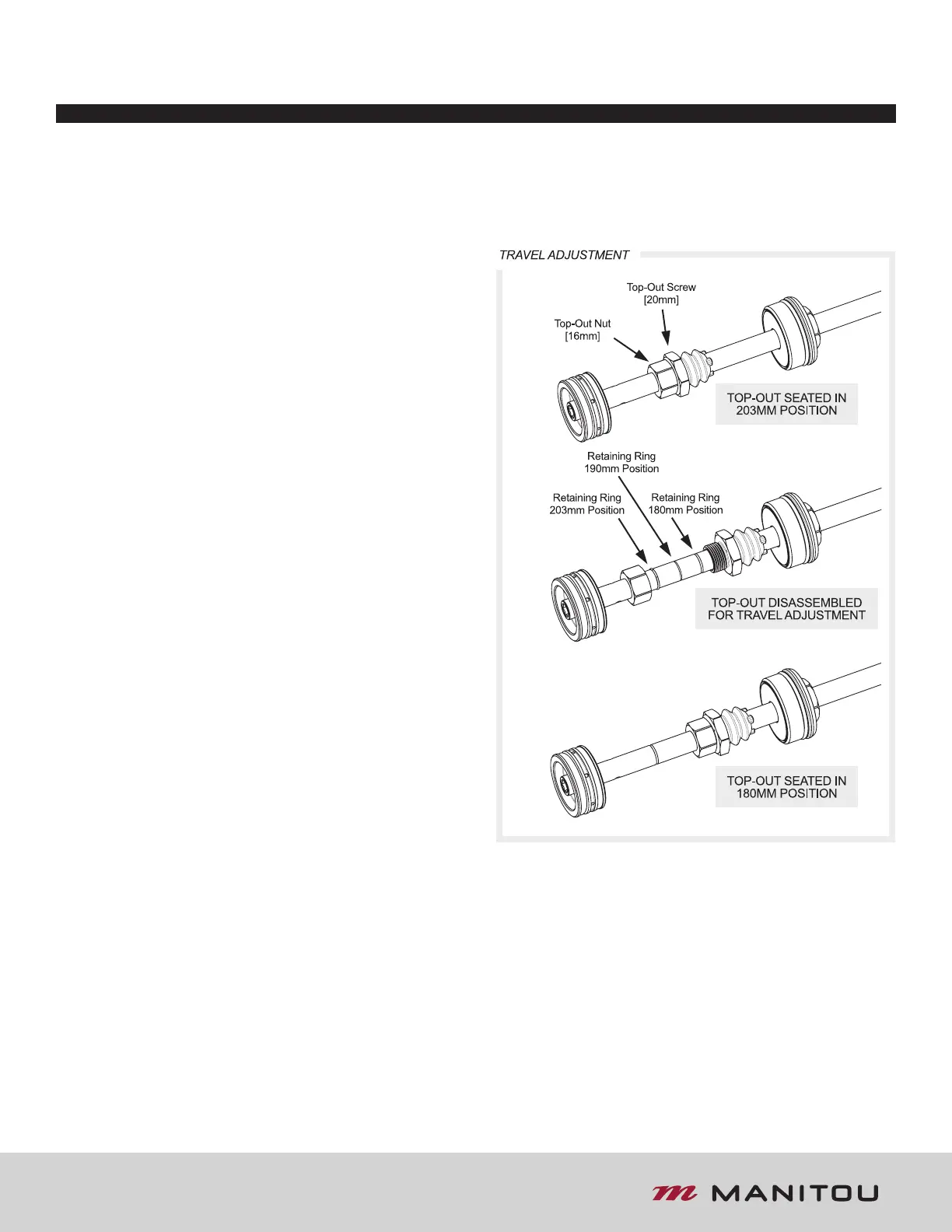

Wiith the comp-rod assembly removed locate the top-out
nut (16mm) and screw (20mm) on the comp-rod. Loosen and
unthread the nut from the screw, then slide apart to reveal
the retaining ring. Lightly splay the retaining ring to remove
from groove and move to groove corresponding to the desired
travel position; 203mm is the position closest to the air piston,
180mm is the position closest to the end cap. Rethread the
top-out screw and bolt over the retaining ring, torque to 3,4
N-M [30 IN-LB].
NOTE: Consult pages 16-22 for air leg assembly and
reassembly.
