DORADO PRO 37MM SERVICE GUIDE
4
5

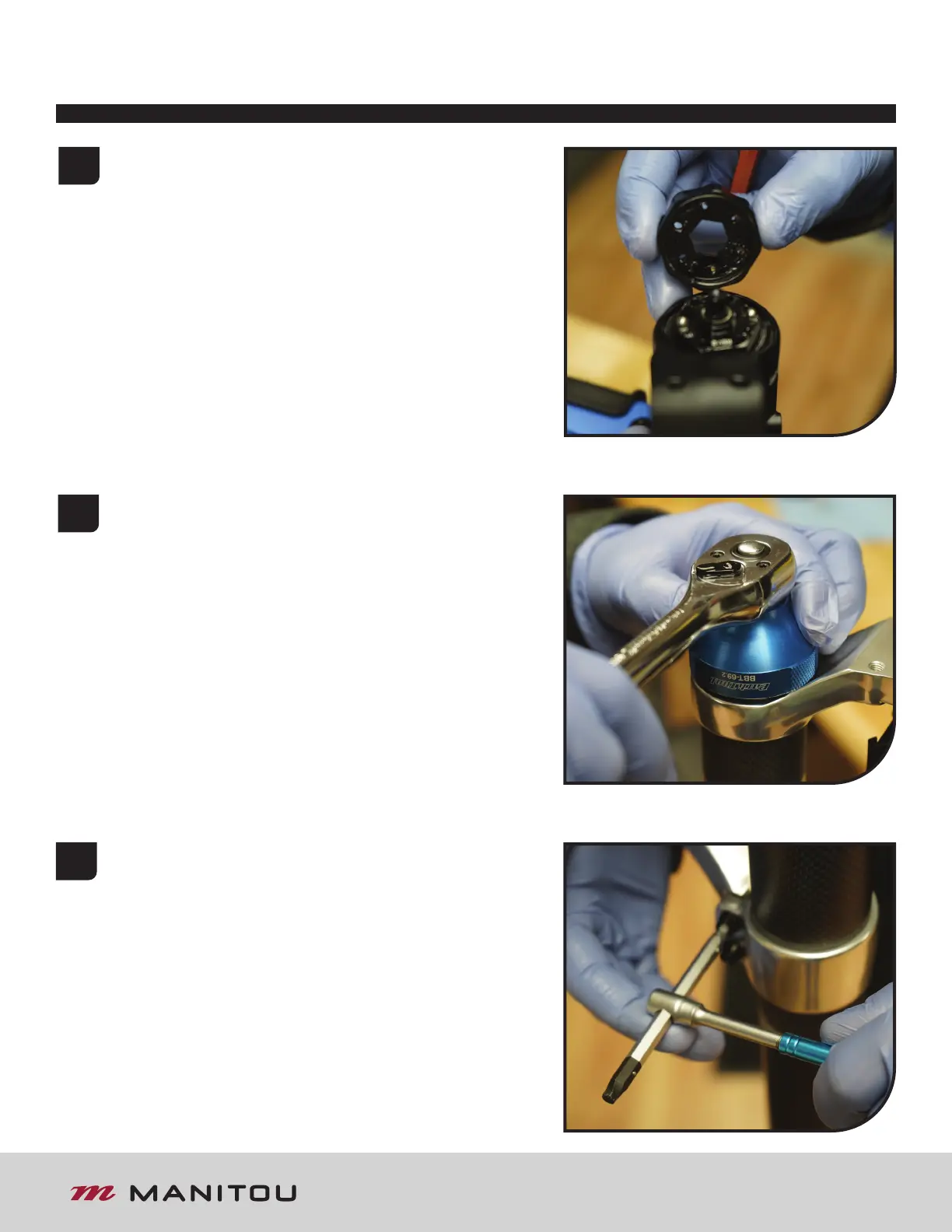

With the forks steerer tube clamped in a bike stand
oriented upright. Loosen the upper clamp while
leaving the lower tight. (This will allow the top cap
to be loosed without the leg spinning.) Loosen the
damping leg top cap using a 16 notch Bottom Bracket
Tool. Only loosen the top cap at this point. Do not
remove it.
Loosen the pinch bolts on the lower crown and remove
the damping leg from the fork. You will need to remove
the frame bumpers to do so. Put them in a safe place
so you do not misplace them.
TIP: The ends of the Dorado sag guide can be used to
spread the clamps apart and aid in leg removal.
6
Once the c-clip is removed pull the knob up. Be sure to
capture the O-ring, 2 detent balls and springs under the
knob.
DAMPING LEG DISASSEMBLY
