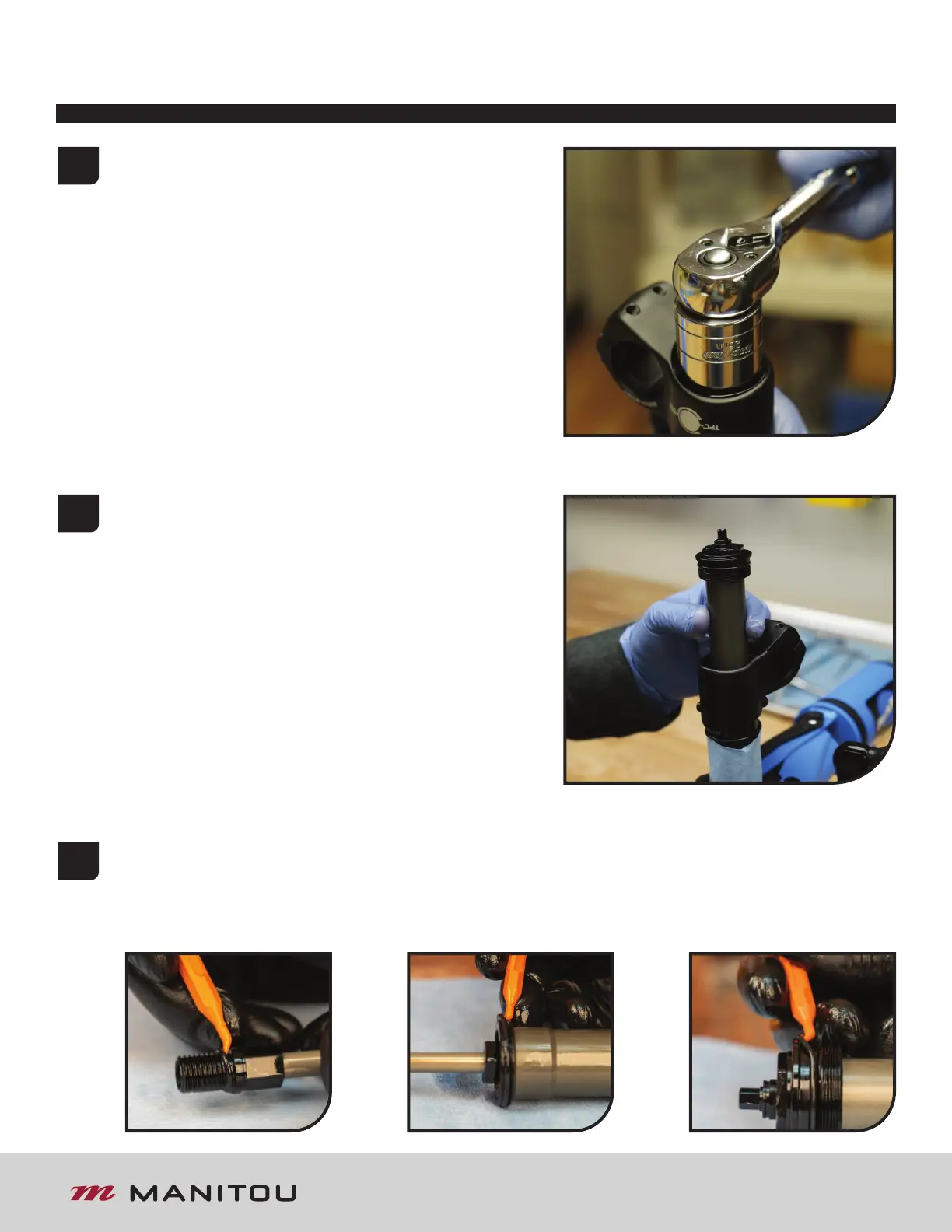

DORADO PRO 37MM SERVICE GUIDE
Wrap the inner leg in a rag and lightly clamp it into
a bike stand with the rebound shaft pointing down
towards the floor. Remove the damping cartridge
from the inner leg using a 26mm socket.
10
11
11
Pull the damping cartridge completely out of the
inner leg.
Replace the following O-rings on the rebound damper assembly.
A. O-ring #100-012 - The O-ring above the threads on the end of the damper assembly.
B.
O-ring #100-122 - The larger O-ring on the bottom out end cap.
C.
O-ring # 100-026 - The O-ring that is around the outside of the compression assembly top cap.
A B C
DAMPING LEG DISASSEMBLY
To Next Page
