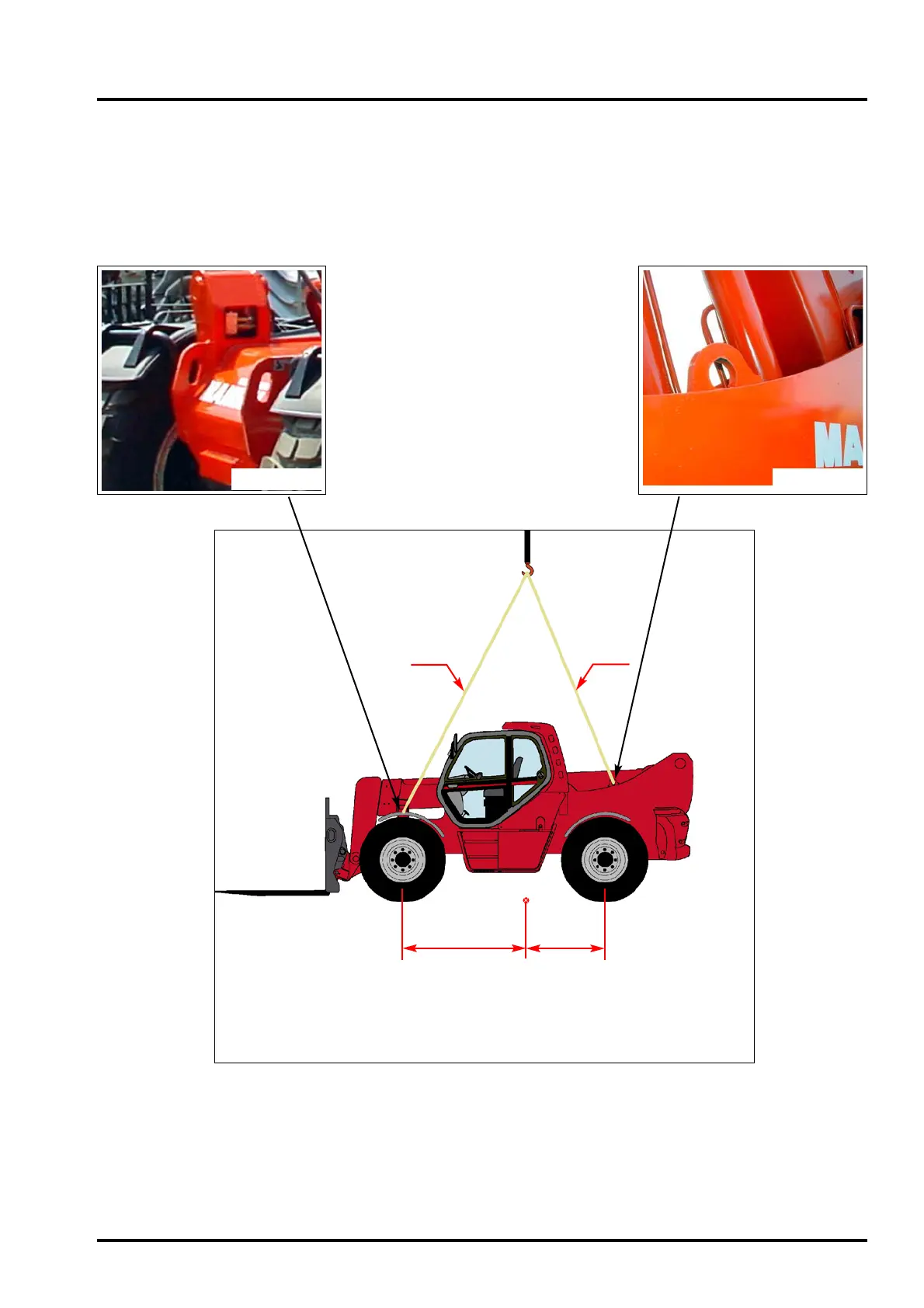

- SLING THE LIFT TRUCK
- Take into account the position of the lift truck gravity center for lifting (Fig. G3/1).
- Place the hooks in the fastening points provided (Fig. G3/2 and G3/3).
Fig. G3/1
FIG. G3/3FIG. G3/2
A = 2060 mm
B = 1240 mm
C = 3975 mm
D = 2960 mm
G = Position of the center of gravity
A
B
G
C
D
MHT 10120 L M
S
eries
33
3
(81.1 in.)
(48.8 in.)
(156.5 in.)
(116.5 in.)
