D - Laying a high load.
Under no circumstances should you lay down a load if the lift truck is not a horizontal
position. (See paragraph : G - HORIZONTAL POSITION OF THE LIFT TRUCK in the
chapter : LOAD HANDLING).

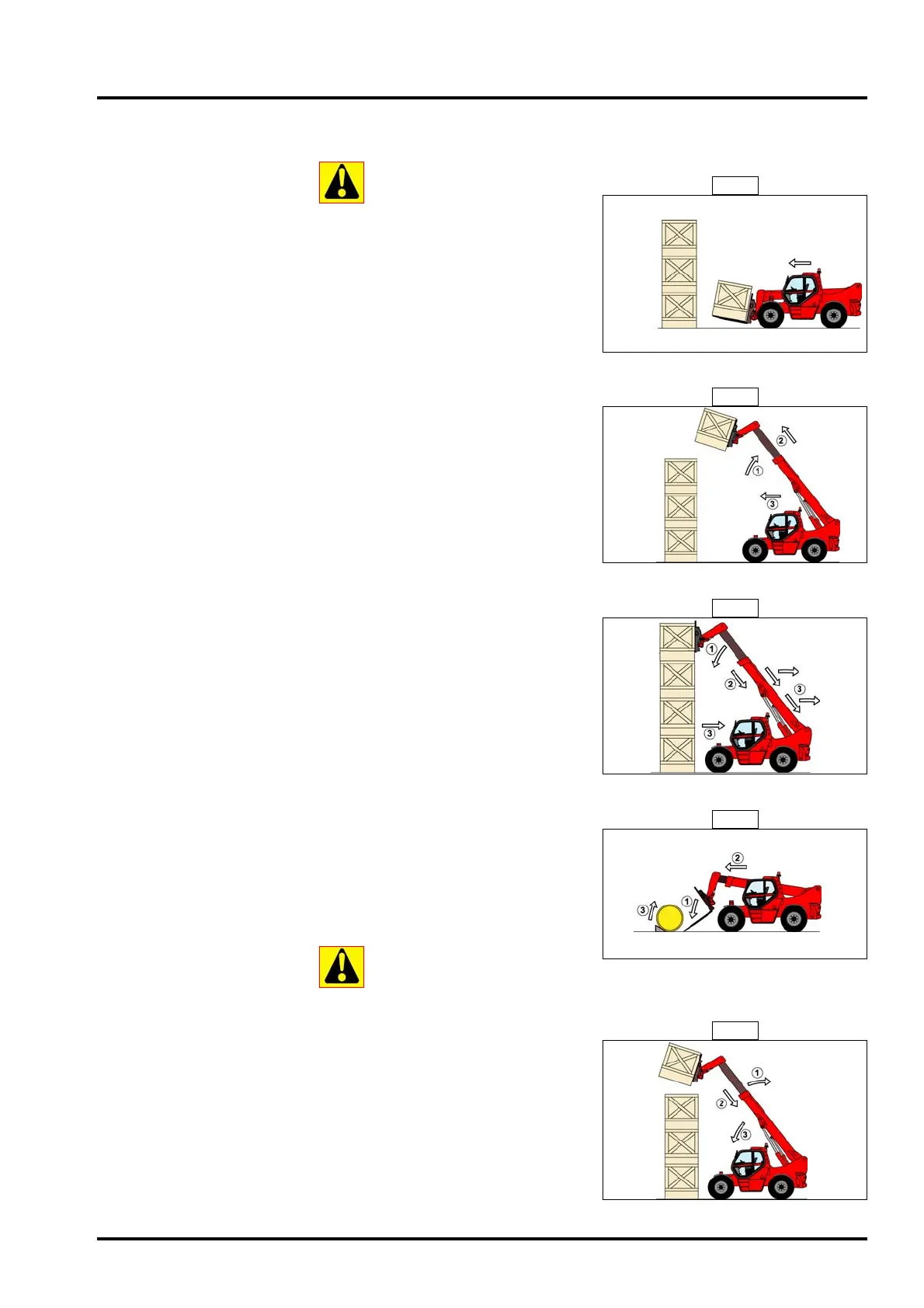

- Approach the load in the transportposition in front of the pile (Fig. L).
- Lift and extend the jib (1) (2) until the load is above the pile, if necessary move the lift
truck forward (3) (Fig. M) manoeuvring very gently and carefully (See paragraph : E -
VISIBILITY in the chapter : HANDLING INSTRUCTIONS for visibility of the road). Apply
the parking brake and place the forward/reverse lever in neutral.
- Place the load in a horizontal position and lay it down on the pile by lowering and
retracting the jib (1) (2) in order to position the load correctly (Fig. N).
- Free the forks by alternately retracting and lifting the jib (3) (Fig. N) or, if possible, by
reversing the lift truck (3) (See paragraph : E - VISIBILITY in the chapter : HANDLING
INSTRUCTIONS for visibility of the road). Then bring the jib into the transport position.
E - Taking up a load without pallet
- Tilt the carriage (1) forwards and extend the jib (2) while simultaneously crowding the
carriage backwards to slip the forks under the load (Fig. O).
If necessary, wedge the load.
F - Load status indicator.
- Always watch the load status indicator while handling a load.
If the load status indicator alarm is actived, do not carry out:
A - Extend the jib.
B - Lower the jib.
- If the load status indicator alarm is actived, carry out in all security movements in the
following order (Fig. P) :
1 - Fully retract the jib.
2 - If it’s necessary lift the jib.
3 - Lower the jib in order to lay the load.
The device reading may be false if the steering is turned to the maximum or if the rear
axle is swung to the maximum. Before lifting a load, always make sure the steering is
not turned all the way and that the rear axle is not swung completely.
