Manitou M Turbo Series User Manual

2
2
MHT 10120 L M
Series
Transmission
- Type Hydrostatic
- Type Pump and motor with variable displacement
- Gear box hydraulically operated
- N° of forward speeds 2
- N° of reverse speeds 2
- Reverser Electrohydraulic
Hydraulic circuit
- Lifting, tilting of telescopic
boom and device
- Type of pump Piston type-load sensing
- Delivery 165 l/min
- Pressure 350 bar
Steering circuit
- Type of pump Load sensing
- Delivery 165 l/min
- Pressure 190 bar
Leveling circuit
- Type of pump Gear pump
- Delivery 25 l/min
- Pressure 205 bar
Cooling circuits
Water and intercooler by hydraulic motor
- Type of pump Gear pump
- Delivery 25 l/min
- Pressure 175 bar
Hydraulic oil
- Electrical fan Number 4

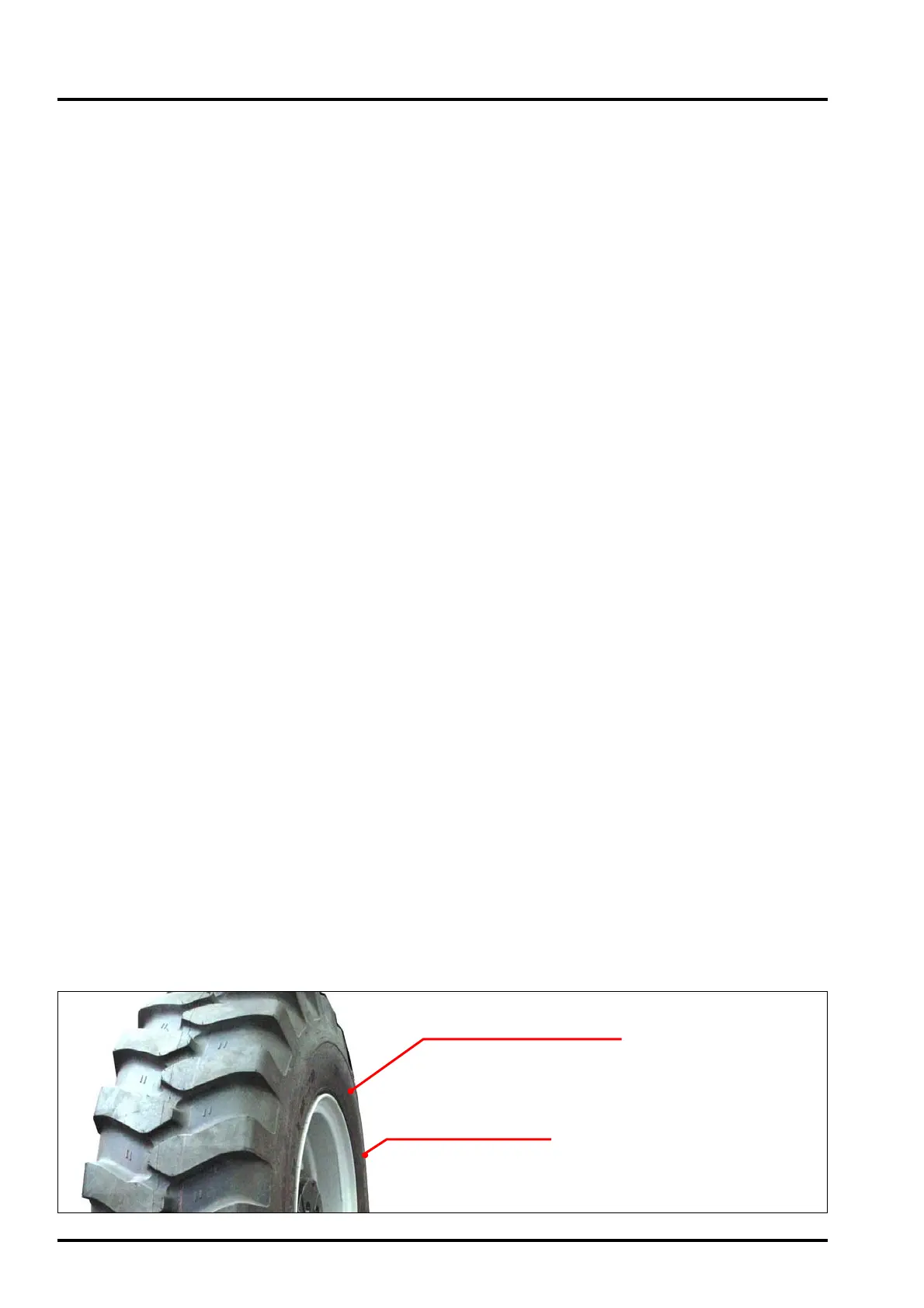

Front and rear tyre:
Tyre size and type:
17.5 R25 EM 20 TL
Tyre pressures:
7 bars
(43.6 gpm)
(5075 psi)
(43.6 gpm)
(2755 psi)
(6.6 gpm)
(2973 psi)
(6.6 gpm)
(2538 psi)
(101 psi)
