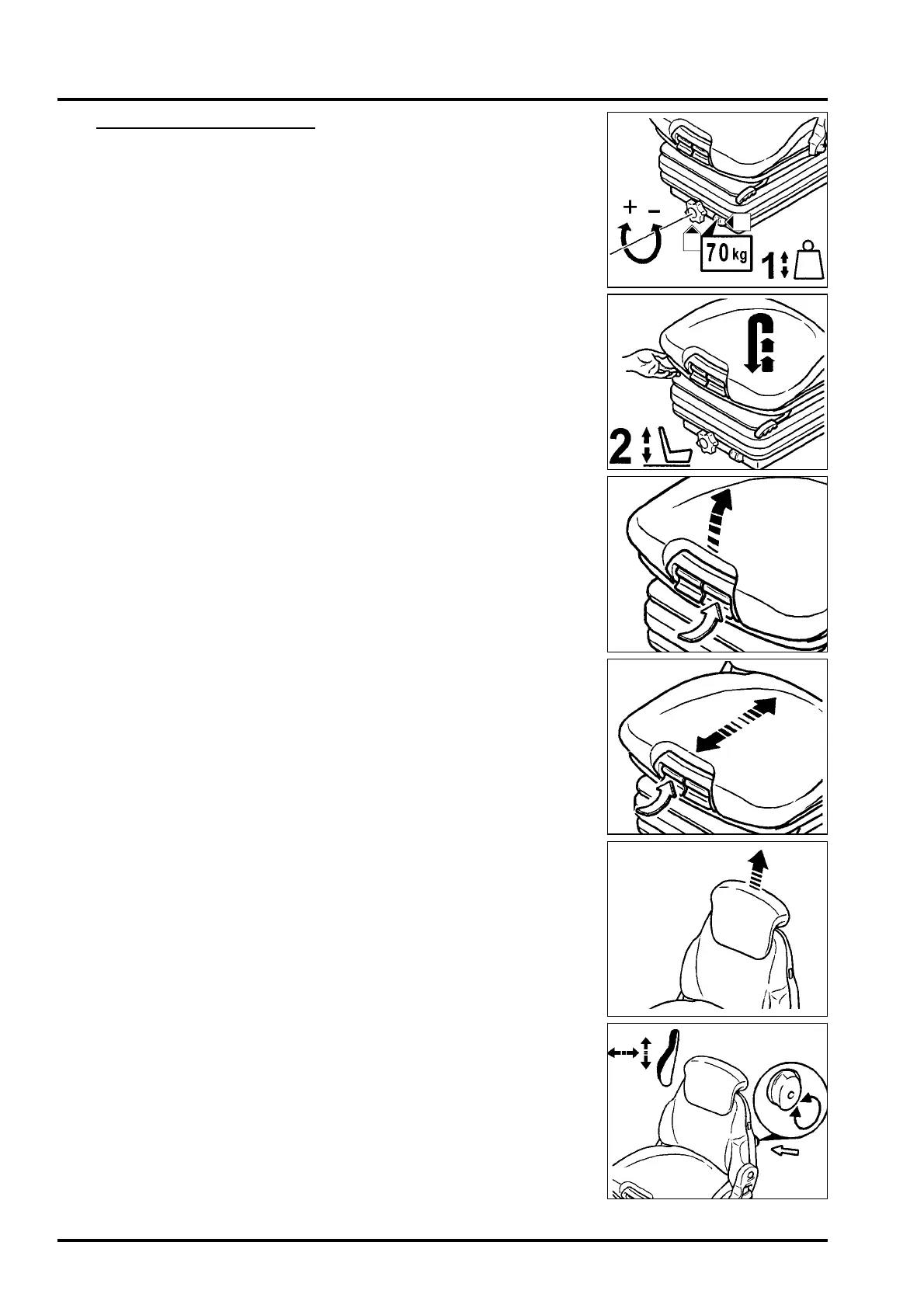

DRIVER’S SEAT (STANDARD)
FOR ENHANCED COMFORT, THIS SEAT ALLOWS VARIOUS
ADJUSTMENTS.
WEIGHT ADJUSTMENT
The seat should be adjusted to the driver’s weight with no-one sitting on it.
- Take the seat notch 1 as reference.
- Turn the knob 2 as appropriate to the driver’s weight.
N.B. : To avoid health problems, the weight setting should be checked and
adjusted before the truck is put into operation.
ADJUSTING THE SEAT HEIGHT
Bring the seat to the desired position, until the catch is heard to engage. If the
seat is raised above the last catch, it will return to the lowest position.
ADJUSTING THE SEAT ANGLE
The seat angle can be regulated individually.
- Press the button on the left and at the same time push or release the seat to
obtain the position desired.
ADJUSTING THE SEAT POSITION
The seat position can be regulated individually.
- Press the button on the right and move the seat forward or
back to obtain the position desired.
SEAT BACK EXTENSION
- The height of the seat back extension can be adjusted (the catches can be
heard) until the stop is reached.
- The seat back extension can be removed by pulling until it moves beyond the
last stop.
BACK SUPPORT
This allows adjustment of both the seat conform level and the driver’s freedom
of movement.
- Turn the knob to the right or left to adjust the height and depth of the back
support.
