D - EVERY 500 WORKING HOURS
D
D
1
1 - CHANGING THE TRANSMISSION OIL FILTER

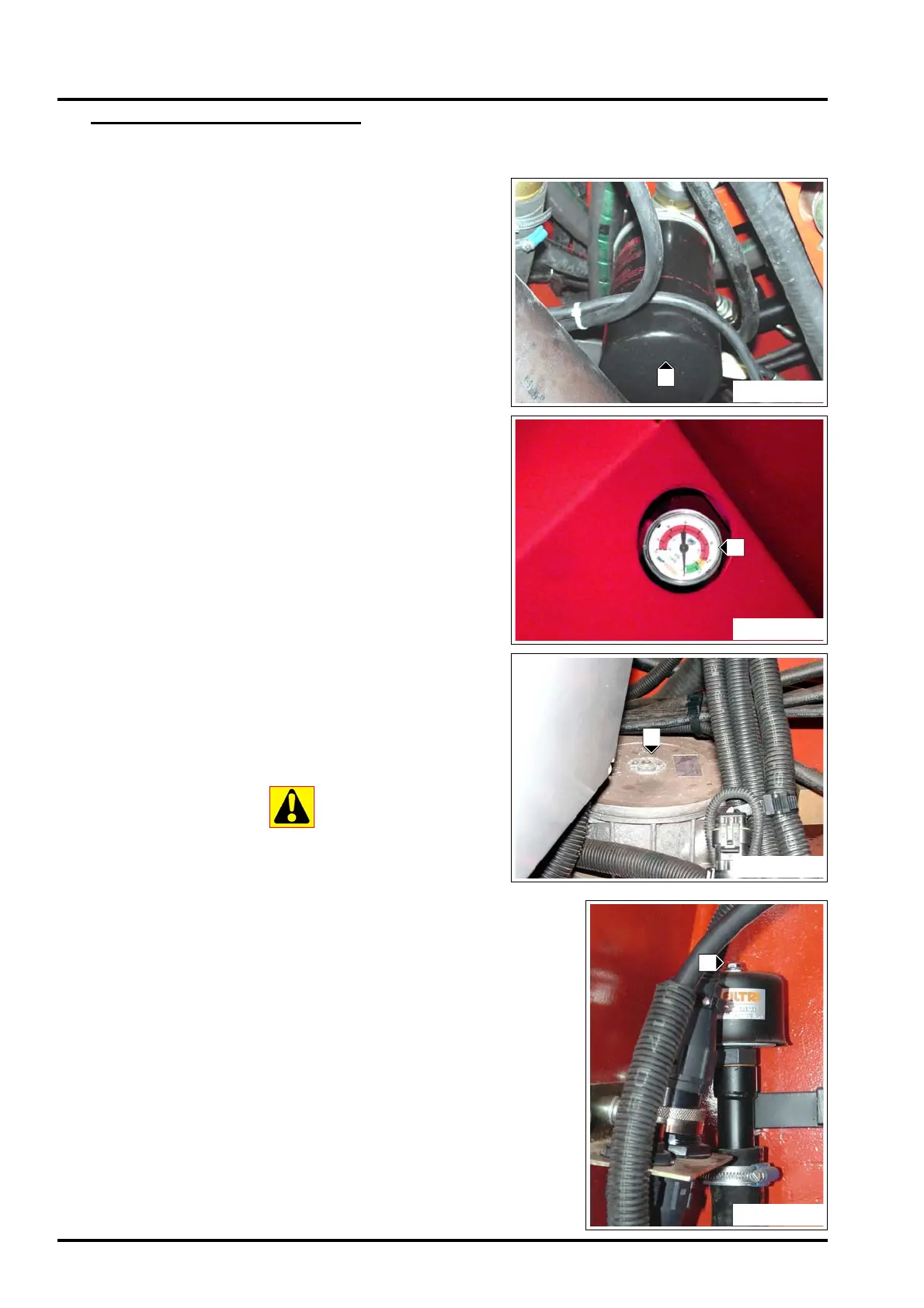

Use a collar wrench to remove the transmission oil filter “1” (fig.
D1/1) and throw it away together with the gasket.
Clean the filter support with a clean cloth which does not leave
threads.
Fit the new filter of the same characteristics, see table (“FILTER
ELEMENTS AND BELTS”) using your hands only, taking care
that the gasket (lubricated before fitting) is properly positioned.
Start the truck and check that there are no leaks.
To check the efficency of the filter see the indicator “2” (fig.
D1/2).
If the indicator reach the “red” zone before 500 working hours
change immediately the filter.
D
D
2
2 - CHANGING THE HYDRAULIC OIL EXHAUST FILTER
CARTRIDGE
Slacken the 4 screws that fix the cover of filter “1” (fig. D2),
remove the old cartridge.
Fit the new filter of the same characteristics, see table (“FILTER
ELEMENTS AND BELTS”), taking care that the gasket (lubricat-
ed before fitting) is properly positioned.
Start the truck and check that there are no leaks.
Before fitting the cover of filter “1” (Fig. D2), check that the car-
tridge has been correctly installed.
D
D
3
3 - REPLACING THE BREATHER FILTER
Unscrew the filter “1” (fig. D3) in the back of the cab and replace it
with a new one of the same characteristics, see table (“FILTER
ELEMENTS AND BELTS”).
Fit the new filter, tightening it by hand.
MHT 10120 L M
