50 HOUR AIR CAN & PISTON GUIDE
AIR CAN service
4
5
6

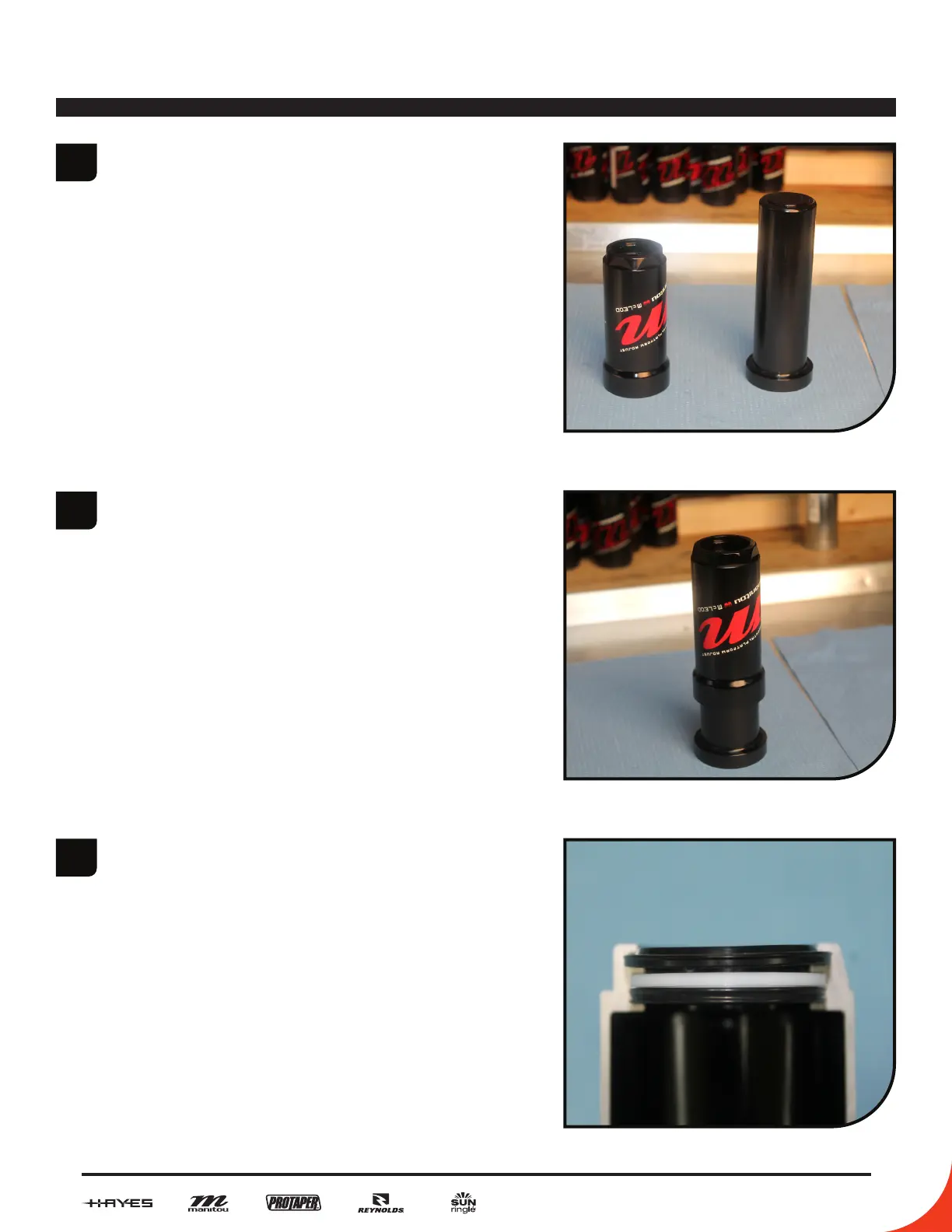

To make air can seal
installation easier use the Air
Can Seal Install tool, Manitou
part number 172-32193-K001.
Place the air can onto the seal
tool or onto a at surface.
This cut away of the air can
shows the seal placement
for reference. The air can
quad seal is the bottom seal
followed by the white glide
ring. They both sit in the lower
groove. The air can wiper seal
sits in the upper groove.
