MATTOC PRO SERVICE MANUAL
Mattoc travel change
In order to change the travel of your Mattoc Pro/Comp (26-27.5-29+), rst
remove the compression rod assembly. For instructions on how to do this

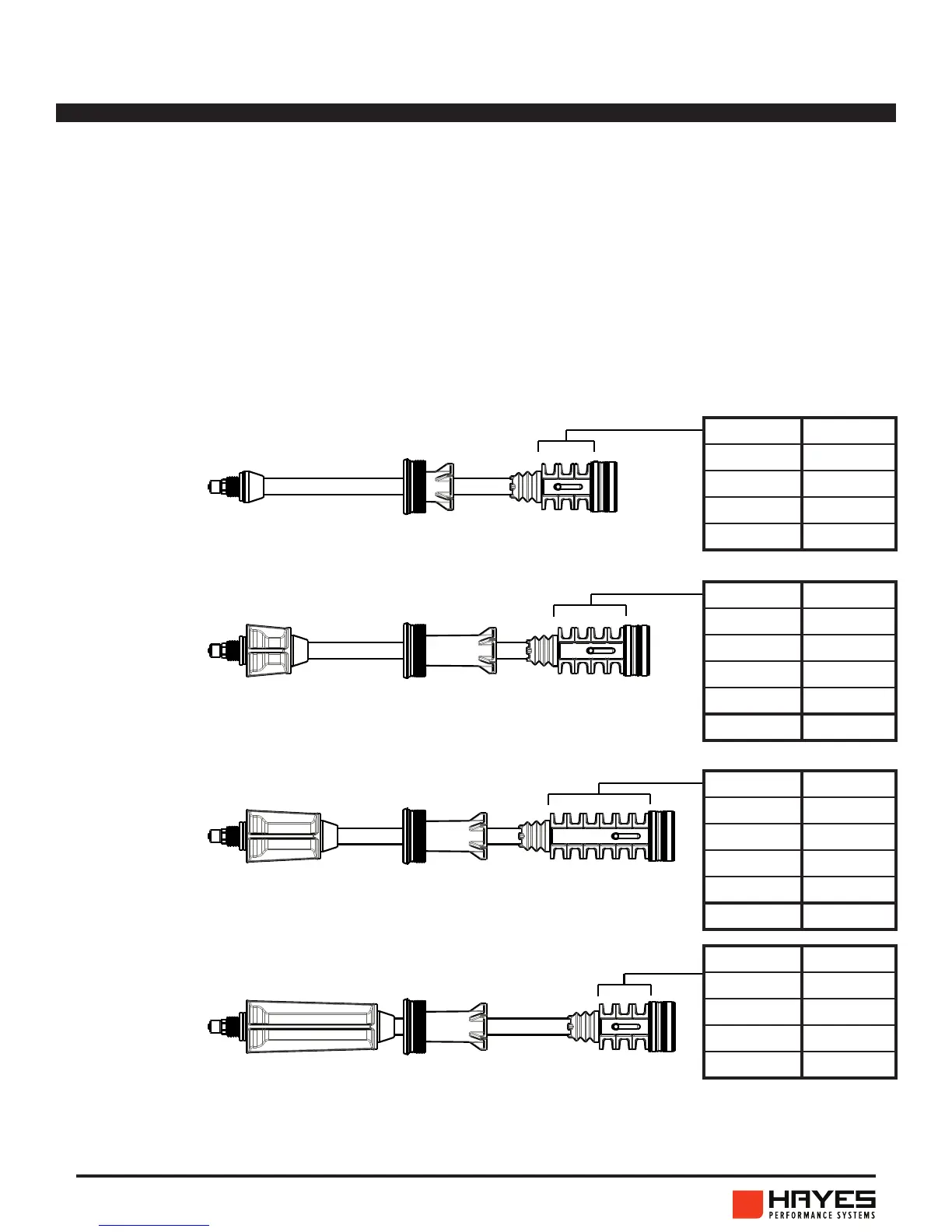

refer to page 16. Once the rod is removed arrange the travel spacers into
the desired amount of travel using the following charts.
2017 Mattoc 110mm “Boost” Hub Spacing
1
2
2
1
1
2
TRAVEL SPACERS
170 0
160 1
150 2
140 3
TRAVEL SPACERS
110 0
100 1
90 2
80 3
TRAVEL SPACERS
140 0
130 1
120 2
110 3
100 4
TRAVEL SPACERS
120 2
110 3
100 4
90 5
80 6
27.5”
27.5+/29”
29+
29+ TREK

Manitou Mattoc Pro Specifications

General

Spring Type	Air
Travel	160mm
Wheel Size	27.5", 29"
Adjustments	Rebound, low-speed compression
Axle	15mm thru-axle
Steerer Tube	1.5" tapered
