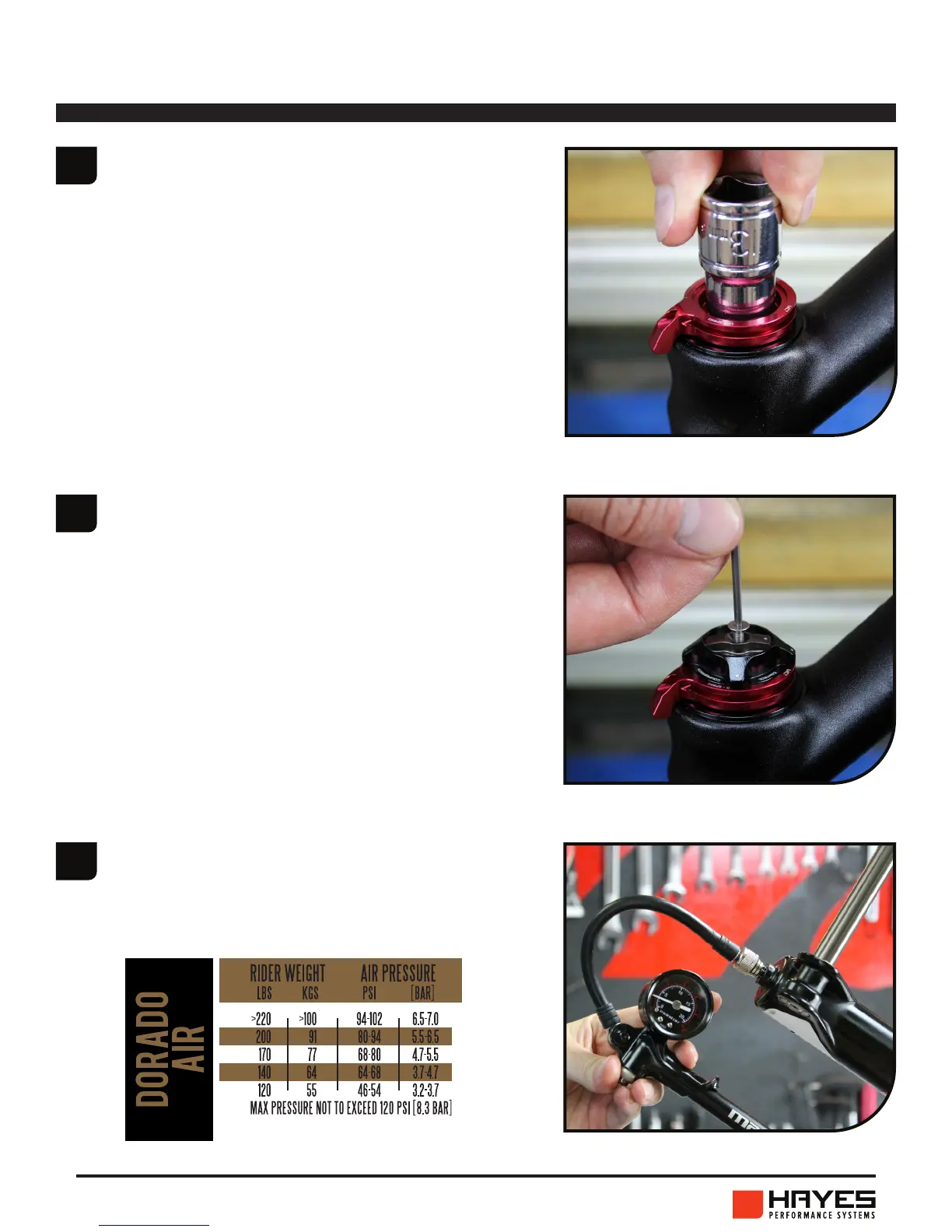

MATTOC PRO SERVICE MANUAL
7
8
9
Place high speed and HBO knob
assembly onto the red low speed
adjustment knob. Tighten down screw
with 2mm Hex wrench.
Note: Be sure to hold the HBO knob still
while removing the screw/nut. These
tend to move and can damage the
damper if the knob is over turned.
Clean fork and use a shock pump to
set to desired pressure. Lightly pull the
casing away from the CSA as you add
air. Pressure chart below for reference.
COMPRESSION DAMPER INSTALL
Place red low speed adjustment knob
onto damper assembly. With a 13mm
socket, tighten down the nut nger tight
Note: Be sure to hold the knob still while
removing the screw/nut. These tend to
move and can damage the damper if the
knob is over turned.
