- Slightly lift the load (1) (fig. E3).
- Incline the carriage (2) backwards to stabilize the load (fig. E3).

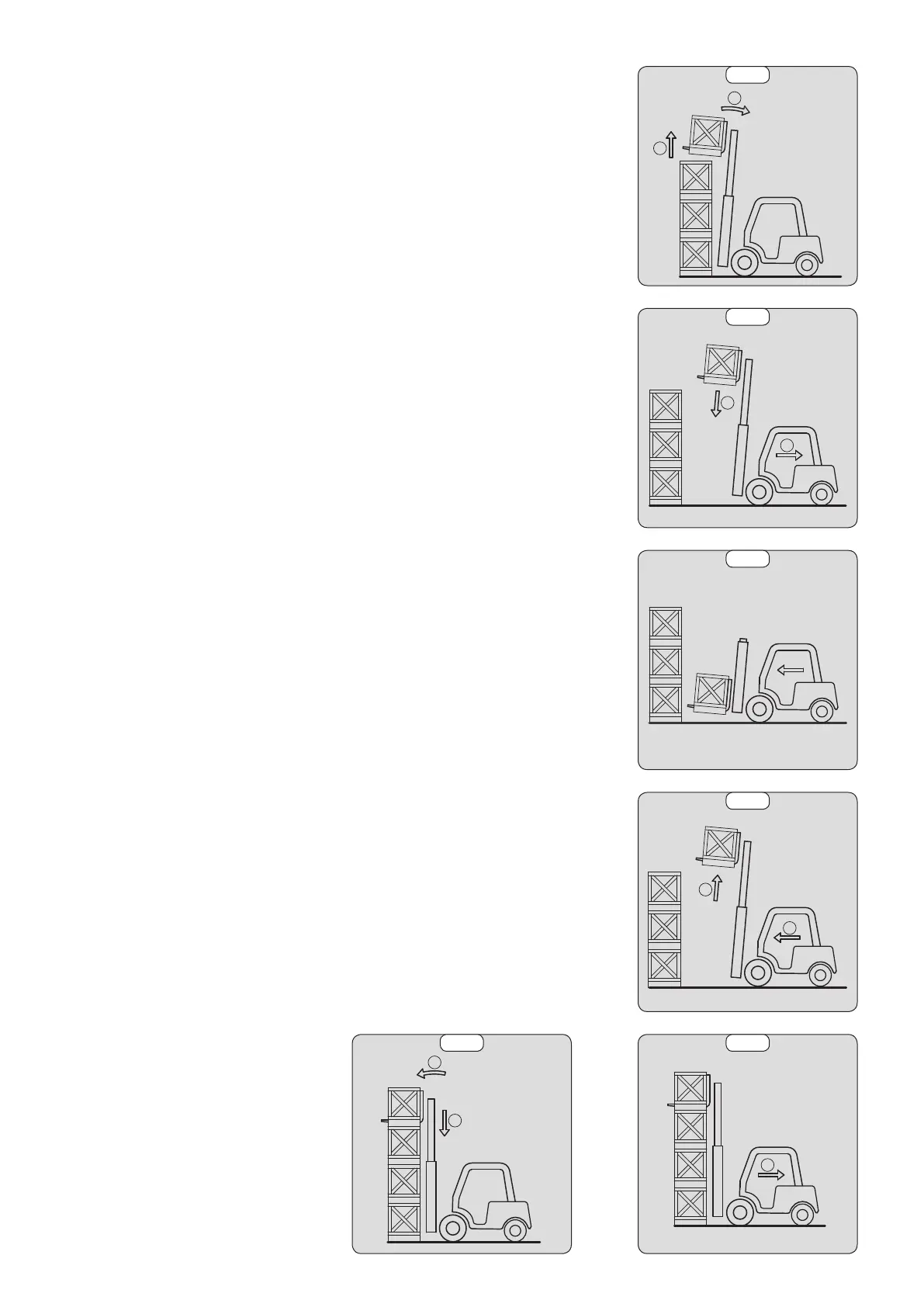

LAYING A HIGH LOAD ON TYRES
- Approach the load in the transport position in front of the pile (fig. E5).
- Raise the mast (1) until the load is higher than the pile and move the lift
truckforward(2) (fig. E6) very carefully and gently, until the load is over the pile.
- Apply the parking brake and place the forward/reverse selector in neutral.
- Place the load in a horizontal position by tilting the mast forwards (1) and lay
itdown on the pile (2) while checking the correct positioning of the load (fig. E7).
- Reverse the lift truck (1) very slowly and carefully to free the forks (fig. E8).
- Set the forks in the transport position.
- Reverse the lift truck (1) very carefully and gently to free the load.
- Lower the mast (2) to bring the load into the transport position (fig. E4).
