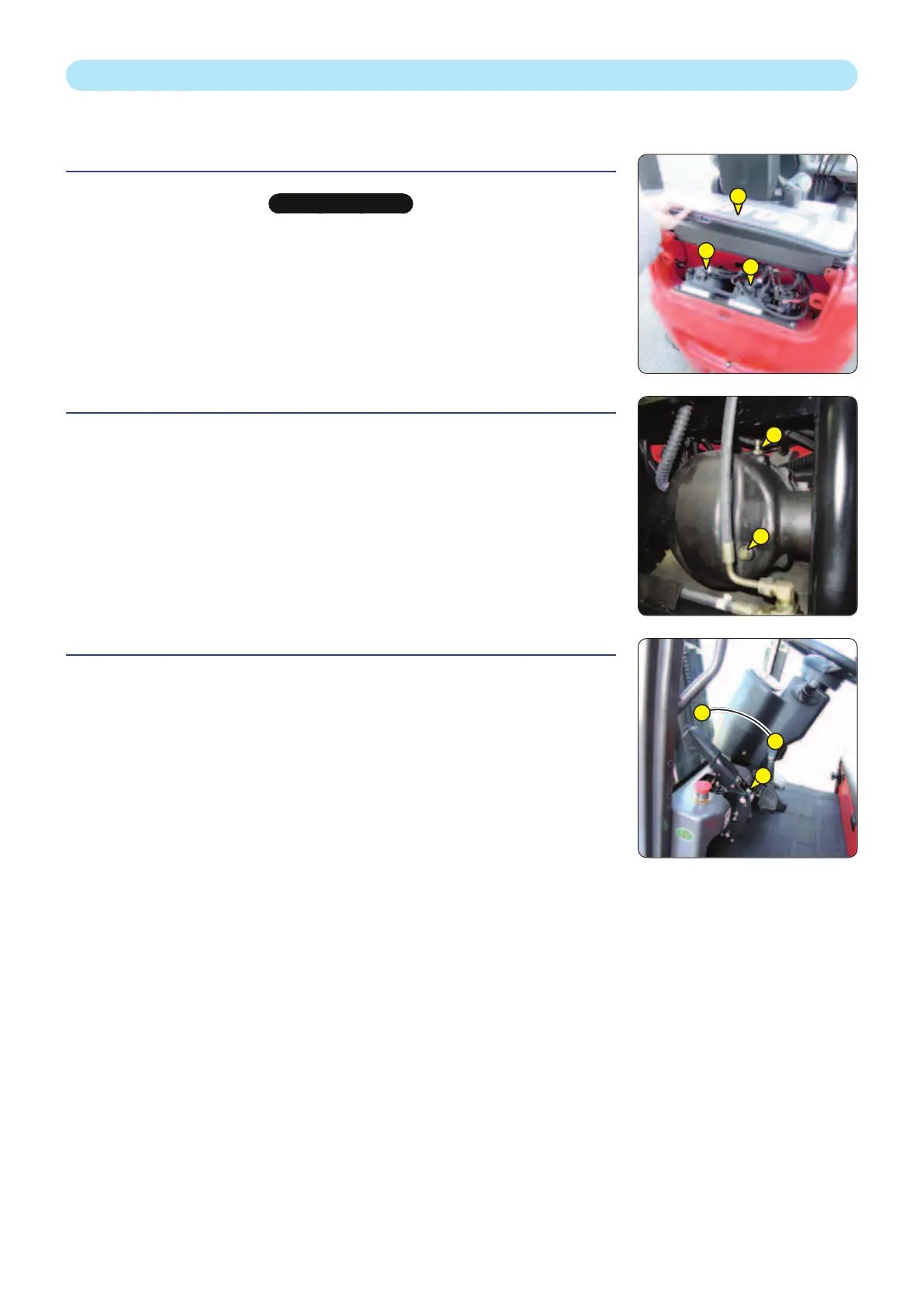

C - EVERY 250 HOURS OF SERVICE
Carry out the operations described previously as well as the following operations.
C1 – CONDITION OF CONTROL PANELS
CHECK
IMPORTANT
In case of technical faults, consult your dealer.
- Remove the access panel 1.
- Check the connections and the general condition of the control panels (2) (oxidation,
bared wires, etc.).
C2 – TRANSFER GEARBOX OIL
CHECK
Place the lift truck on level ground with the engine stopped.
- Remove the level plug 1, the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) via the filler
port (2).
- Refit and tighten level plug 1.
- Visually check that there is no leakage or seepage of oil from the transmission.
C3 – PARKING BRAKE
CHECK - ADJUST
Place the lift truck on a slope of at least 15% with the rated load in the transport position.
- Check the tightening adjustment by locking the parking brake in position A.
- The adjustment is correct when the lift truck remains stationary on the slope.
- Adjust if necessary.
- Leave the parking brake in position B.
- Progressively tighten the screw 1 and recheck the braking.
- Repeat the operation until the correct braking adjustment is obtained.
3-16
2
1
1
2
2
B
A
1
647503 (10/05/2017)
M
E 418/420/425C 48V S3
