CLEANING THE STRAINER

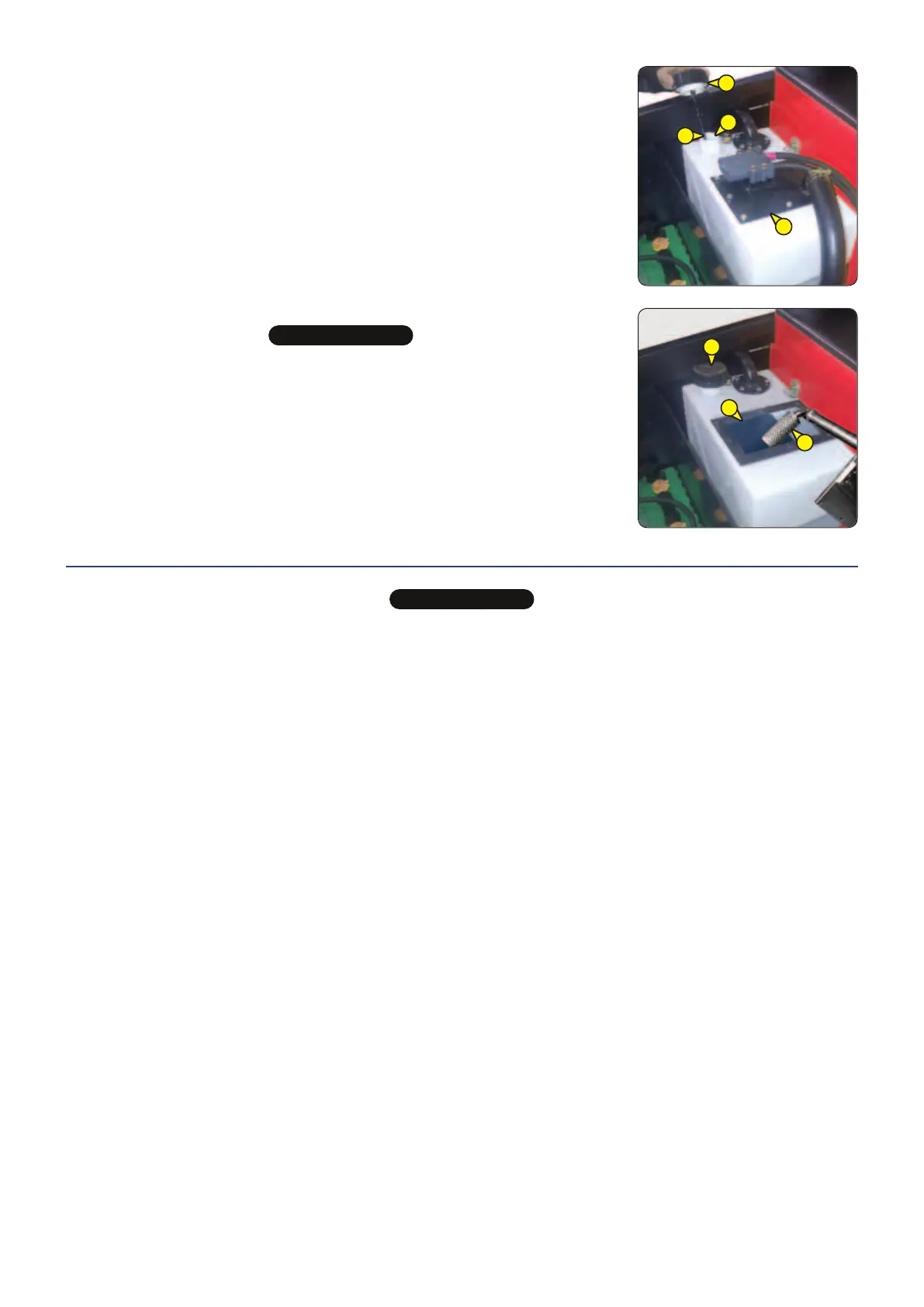

- Unscrew the locking screws of the access panel 3.
- Lift the access cover, unscrew the suction strainer 4, clean it with a compressed air
jet, check its condition and replace if necessary (see: 3 - MAINTENANCE: FILTERS
AND CARTRIDGES).
- Refit the suction strainer 4.
REPLACEMENT OF THE RETURN FILTER
- Unscrew the hydraulic return oil filter 5 and replace with a new one (see: 3 -
MAINTENANCE: FILTERS AND CARTRIDGES).
- Refit the access cover 3.
FILLING WITH OIL
- Clean and refit the drain plug (1).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS) via the filler port (6).
IMPORTANT
Use a clean container and funnel and clean the underside of the oil drum before filling.
- Wipe the dipstick 7 and check the correct level between the MIN and MAX marks.
- Check for any possible leaks at the drain plug.
- Refit the filler plug 2.
E5 – SEAT BELT
CHECK
IMPORTANT
In no event should the lift truck be used if the seat belt is defective (fixing, locking, cuts, tears, etc.).
Repair or replace the seat belt immediately.
- Check the following points:
• Fixing of the anchoring points on the seat.
• Cleanness of the strap and the locking mechanism.
• Triggering of the locking mechanism.
• Condition of the strap (cuts, curled edges).
• Correct winding of the belt.
• Condition of the reel guards.
• Roller locking mechanism by giving the strap a sharp tug.
NOTE: After an accident, replace the seat belt.
3-21
6
3
2
7
5
2
4
647503 (10/05/2017)
