OPTIONAL OUTPUT 2
nd
AND 3
rd
SELECTOR

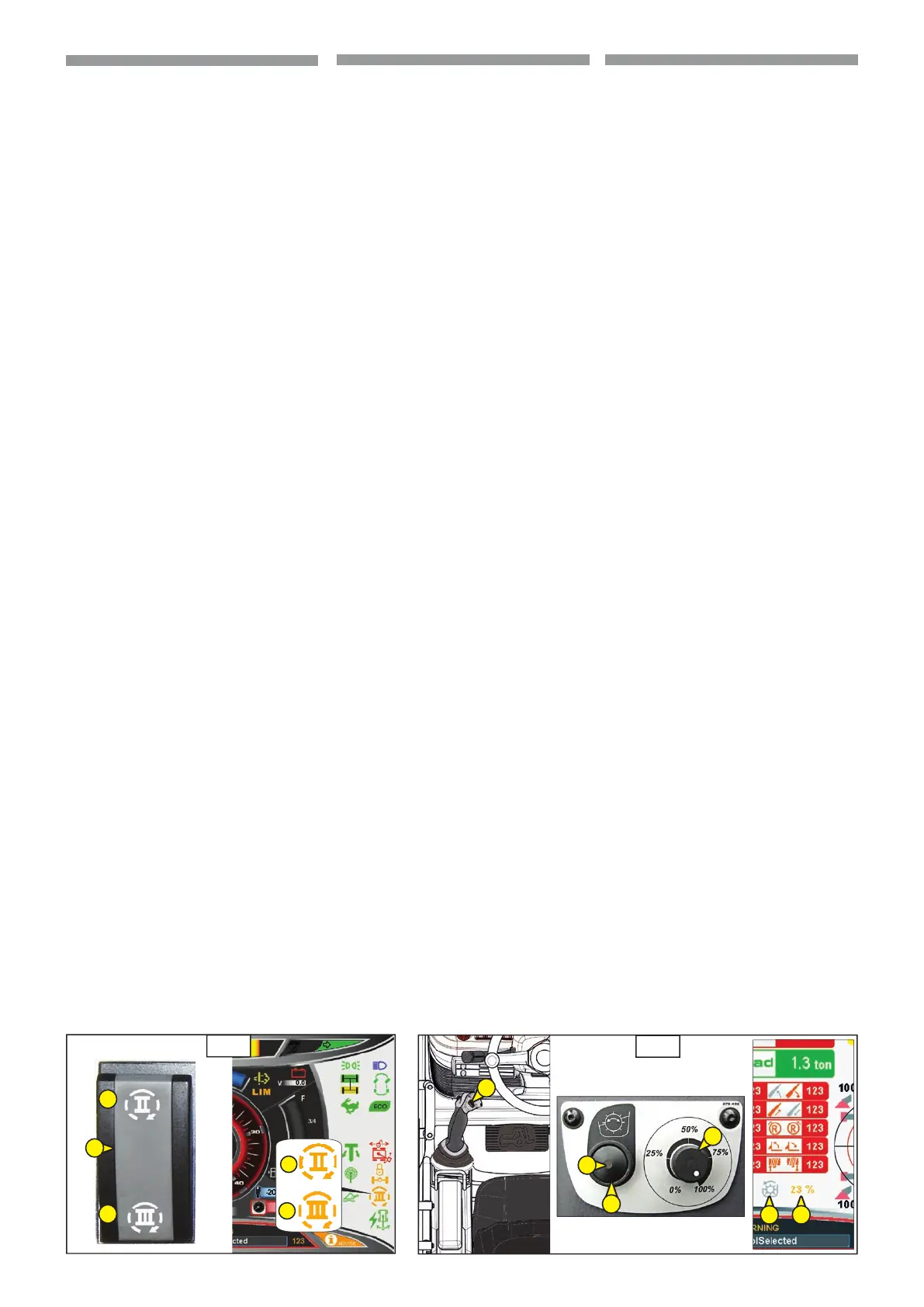

The selector (1,
3.32) is used for switch-
ing the hydraulic control, which carries out
two or three hydraulic movements using
the accessory.
Depending on the machine setup, select
the 2
nd
and 3
rd
optional output by pressing
the selector (1,
3.32).
Each time the 1,
3.32) selector is pressed,
the following is switched:
1. 2
nd
optional output (2,3.32)
2. 3
rd
optional output (3,3.32)
On the display, the (2a, 3a
3.32) indica-
tor light indicates the 2
nd
and 3
rd
optional
output available for use.
OPERATING MODE IN CONTINUOS OF
THE HYDRAULIC ATTACHMENTS
p
This OPTION must only be used
with an attachment requiring
continuous hydraulic movement,
such as a brush, feeder bucket,
mixer, spray etc. It is strictly
forbidden for use in handling
operations and all other
applications (winch, crane jib,
crane jib with winch, hook, etc.).
Continuous hydraulic movement of the
attachment
- Check that potentiometer (C,
3.33) is
set to 0%.
- Switch button (A,
3.33) to the front
or the back (depending on the type of
attachment), press button (B,
3.33)
and release button (A,
3.33). The red
indicator (1,
3.33)  ashes to indicate
that it is in operation.
- On the control panel in “F2-Working
page” a orange indicator light up
(B1,
3.33) to indicate that function is
active.
- Set the required  ow rate us-
ing potetiometer (C,
3.33).
On the control panel in “F2-Working
page” is displayed the setting (%).
- To stop continuous hydraulic move-
ment of the attachment, move switch
(C,
3.33) forwards or backwards
or press button (B,
3.33). Indicator
(1,
3.33) goes out.
- Set potentiometer (C,
3.33) to 0%.
Never leave the drivers cab without
resetting the potentiometer C to 0%.
Before starting the lift truck, make sure
the potentiometer is set to 0%.
NOTE: If the operator leaves the driver’s
cab, the continuous hydraulic
movement will automatically stop
and must be restarted.
3
2
2a
3a
B1 C1
C
B
1
A
SELETTORE 2
O
E 3
O
OPTIONAL
Il selettore (1,
3.32) è utilizzato per
eseguire la commutazione del comando
idraulico che esegue due o tre movimenti
idraulici dell’accessorio.
In base alla con gurazione della macchina,
selezionare il 2
o
e il 3
o
optional premendo
il selettore (1,
3.32).
Ogni pressione del selettore (1,
3.32)
commuta:
1. 2
o
optional (2,3.32)
2. 3
o
optional (3,3.32)
Sul display, l‘indicatore (2a, 3a
3.32)
segnala che il 2
o
e il 3
o
optional sono
disponibili per essere utilizzati.
MODALITÀ DI FUNZIONAMENTO
CONTINUA DEGLI ACCESSORI IDRAULICI
p
Questa OPZIONE deve essere
utilizzata solo con un accessorio
richiedente un movimento
idraulico continuo del tipo:
spazzatrice, benna distributrice,
miscelatore, spruzzatore etc..
Pertanto è tassativamente vietata
durante la movimentazione e in
tutti gli altri casi (argano, braccio,
braccio ad argano, gancio, ecc.).
Movimento idraulico continuo
dell’accessorio
- Veri care che il potenziometro (C,
3.33)
sia su 0 %.
- Muovere il pulsante (A,
3.33) in avanti
o indietro (secondo il tipo d’accessorio),
premere il pulsante (B,
3.33) e rilasciare
il pulsante (A,
3.33). La spia rossa
(1,
3.33) lampeggiante ne indica
l’utilizzo.
- Sul display, nella “F2-Pagina lavoro ,
un indicatore arancione (B1,
3.32)
segnala che la modalità di funzionamento
continua dell’accessorio è attiva.
- Regolare la portata necessaria
(da 0% a 100%) mediante il
potenziometro (C,
3.33).
Sul display, nella “F2-pagina lavoro, è
visualizzata la percentuale impostata (%).
- Per fermare il movimento idraulico
continuo dell’accessorio, muovere il
bottone (A,
3.33) in avanti o indietro
oppure premere il bottone (B,
3.33). La
spia (1,
3.33) è spenta.
- Posizionare il potenziometro (C,
3.33)
su 0 %. Non lasciare mai il posto di guida
senza riposizionare il potenziometro
(C,
3.33) su 0 %. Prima di avviare
il carrello elevatore veri care che il
potenziometro sia su 0 %.
NOTA: Se l’operatore si allontana dal
posto di guida, il movimento
idraulico continuo viene fermato
automaticamente ed è necessario
rimetterlo in funzione.
VALGBRYTER FOR 2. OG 3.
TILLEGGSFUNKSJON
Valgbryteren (1,
3.32) brukes til å omstille
den hydrauliske betjeningskontrollen som
utfører to eller tre hydrauliske bevegelser
på tilbehøret.
Velg 2. og 3. tilleggsfunksjon avhengig av
maskinens kon gurasjon ved å trykke på
valgbryteren (1,
3.32).
Hvert trykk på valgbryteren (1,
3.32)
omstiller til:
1. 2. tilleggsfunksjon (2,
3.32)
2. 3. tilleggsfunksjon (3,
3.32)
På displayet viser indikatoren (2a,
3a
3.32) at 2. og 3. tilleggsfunksjon er
tilgjengelige for bruk.
KONTINUERLIG DRIFTSMODUS FOR
NO HYDRAULISKE TILBEHØRENE
p
Denne TILLEGGSFUNKSJONEN må
kun brukes med et tilbehør som
krever en kontinuerlig hydraulisk
bevegelse av typen: feiemaskin,
mateskovl, blandemaskin,
sprøytemaskin osv.
Det er derfor absolutt forbudt
under håndtering og i alle andre
tilfeller (vinsj, arm, bomvinsj,
krok osv.).
Kontinuerlig hydraulisk bevegelse på
tilbehøret
- Kontroller at potensiometeret
(C,
3.33) står på 0 %.
- Flytt knappen (A,
3.33) forover eller
bakover (avhengig av typen tilbehør),
trykk på knappen (B,
3.33) og
slipp knappen (A,
3.33). Den røde
kontrollampen (1,
3.33) blinker for å
angi bruken.
- “F2-Siden for arbeid” på displayet
angir en oransje indikator (B1,
3.32)
kontinuerlig driftsmodus for tilbehøret
er aktivert.
- Juster nødvendig kapasitet (fra 0 % til
100 %) med potensiometeret (C,
3.33).
“F2-siden for arbeid” på displayet
vises innstilt prosentandel (%).
- Flytt knappen (A,
3.33) forover
eller bakover, eller trykk på knappen
(B,
3.33) for å stoppe den
kontinuerlige hydrauliske bevegelsen
på tilbehøret. Kontrollampen (1,
3.33)
er slukket.
- Sett potensiometeret (C,
3.33) på 0
%. Ikke forlat førerplassen uten å sette
potensiometeret (C,
3.33) tilbake på 0
%. Kontroller at potensiometeret står på
0 % før du starter ga eltrucken.
MERK: Dersom føreren forlater førerplassen,
stopper den kontinuerlige
hydrauliske bevegelsen automatisk
og deretter må den settes igang
igjen.
