Manitou MRT-X 2150 Privilege Plus ST3A S2 Operator's Manual

648970 IT-EN-NO (18/06/2018) MRT-X 2150 Privilege Plus ST3A S2 / MRT 2150 Privilege Plus ST4 S2 / MRT-X 2550 Privilege Plus ST3A S2 / MRT 2550 Privilege Plus ST4 S2
2-20
EN
IT
EN ESNO

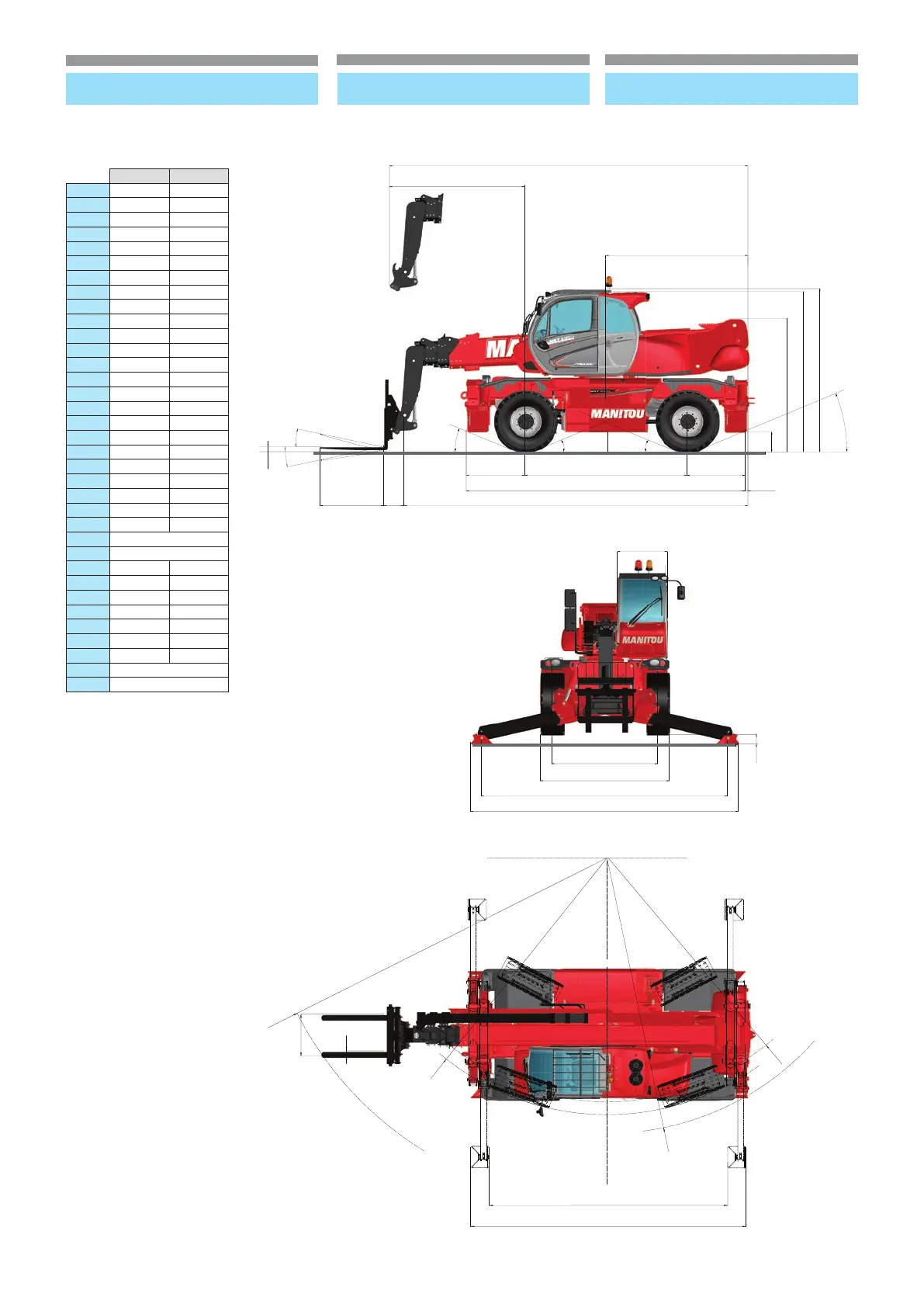

DIMENSIONS AND
LOAD DIAGRAMS
MRT 2150 Privilege Plus ST4 S2
MRT-X 2150 Privilege Plus ST3A S2
mm in
A
1200 47,24
A1 1320 51,97
A2 150 5,91
A3 60 2,36
B 380 14,96
C 6440 253,54
C1 6700 263,78
D 5290 208,27
E 1125 44,29
E1 2600 102,36
F 3050 120,08
G 1135 44,69
H1 350 13,78
H2 340 13,39
I 2600 102,36
J 3015 118,70
J1 3060 120,47
K 2650 104,33
K1 50 1,97
L 2045 80,51
M 2490 98,03
N 5160 203,15
O 5580 219,69
P 190 7,48
P2 16°
P3 23°
Q 5150 202,76
R 4430 174,41
S 4500 177,17
S1 5200 204,72
T 4650 183,07
U 6500 255,91
V 950 37,40
Y 13°
Z 105°
K
C1
GFE
I
D
H1
H2
J
J1
B CA
Z
Y
V
L
M
N
O
P
S
S1
A1
A2
Q
T
U
P2 P2
P3
P3
R
A3
E1
K1
DIMENSIONI E
DIAGRAMMI DI CARICO
MRT 2150 Privilege Plus ST4 S2
MRT-X 2150 Privilege Plus ST3A S2
MÅL OG
BELASTNINGSDIAGRAMMER
MRT 2150 Privilege Plus ST4 S2
MRT-X 2150 Privilege Plus ST3A S2
