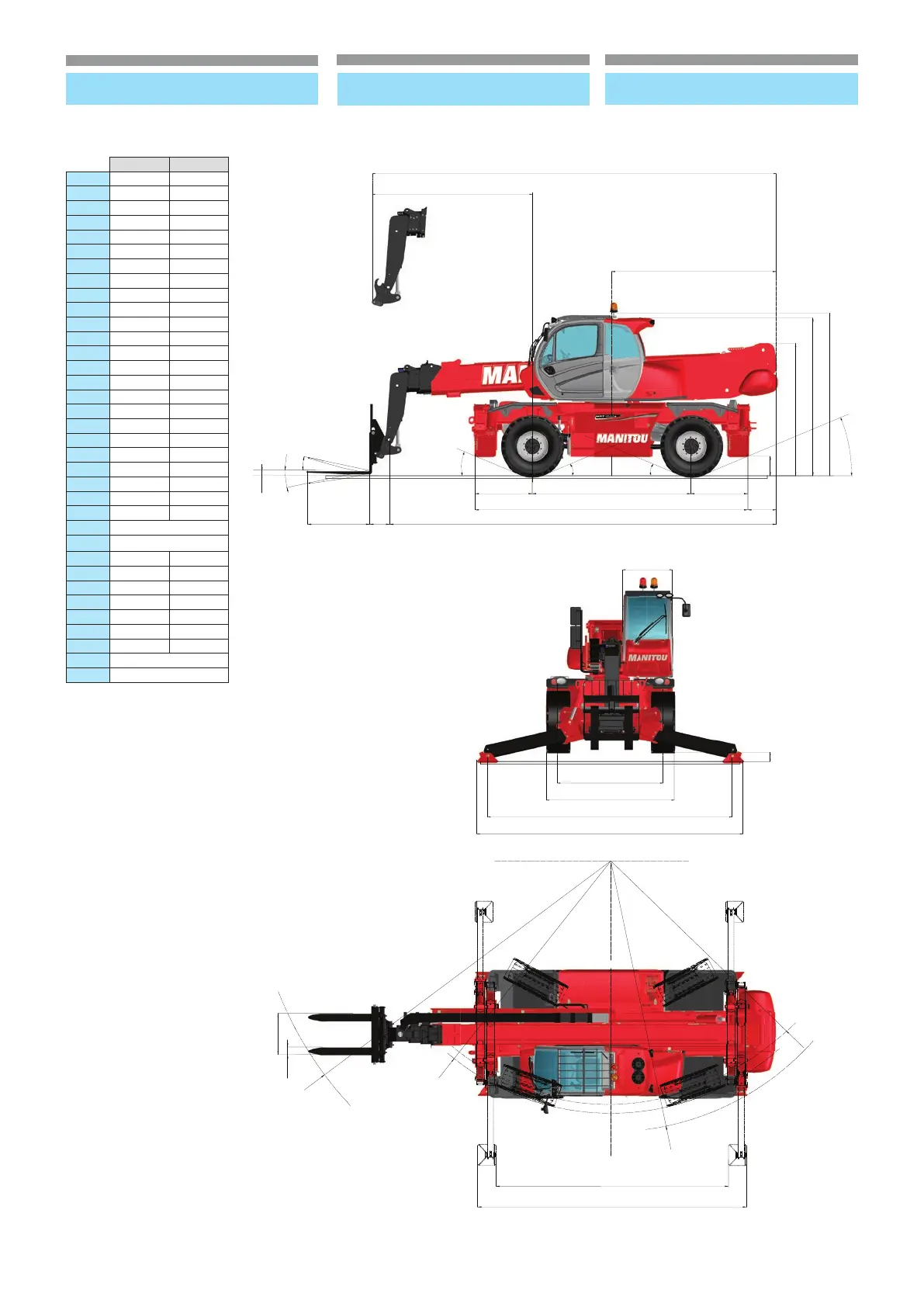

DIMENSIONS AND
LOAD DIAGRAMS
MRT 2550 Privilege Plus ST4 S2
MRT-X 2550 Privilege Plus ST3A S2
mm in
A
1200 47,24
A1 1320 51,97
A2 150 5,91
A3 60 2,36
B 380 14,96
C 7470 294,09
C1 7740 304,72
D 5372 211,50
E 1130 44,49
E1 3025 119,09
F 3040 119,69
G 1105 43,50
H1 330 12,99
H2 330 12,99
I 2630 103,54
J 2992 117,80
J1 3040 119,69
K 3180 125,20
K1 545 21,46
L 2045 80,51
M 2485 97,83
N 5180 203,94
O 5580 219,69
P 175 6,89
P2 14°
P3 21°
Q 5150 202,76
R 4380 172,44
S 4520 177,95
S1 5220 205,51
T 4600 181,10
U 6800 267,72
V 993 39,09
Y 13°
Z 105°
S
S1
Q
T
V
L
M
N
O
P
H2
P2 P2
P3
GFE
D
B
C
A
Z
Y
H1
K
I
J
A1
A2
U
A3
K1
C1
E1
R
J1
P3
DIMENSIONI E
DIAGRAMMI DI CARICO
MRT 2550 Privilege Plus ST4 S2
MRT-X 2550 Privilege Plus ST3A S2
MÅL OG
BELASTNINGSDIAGRAMMER
MRT 2550 Privilege Plus ST4 S2
MRT-X 2550 Privilege Plus ST3A S2
