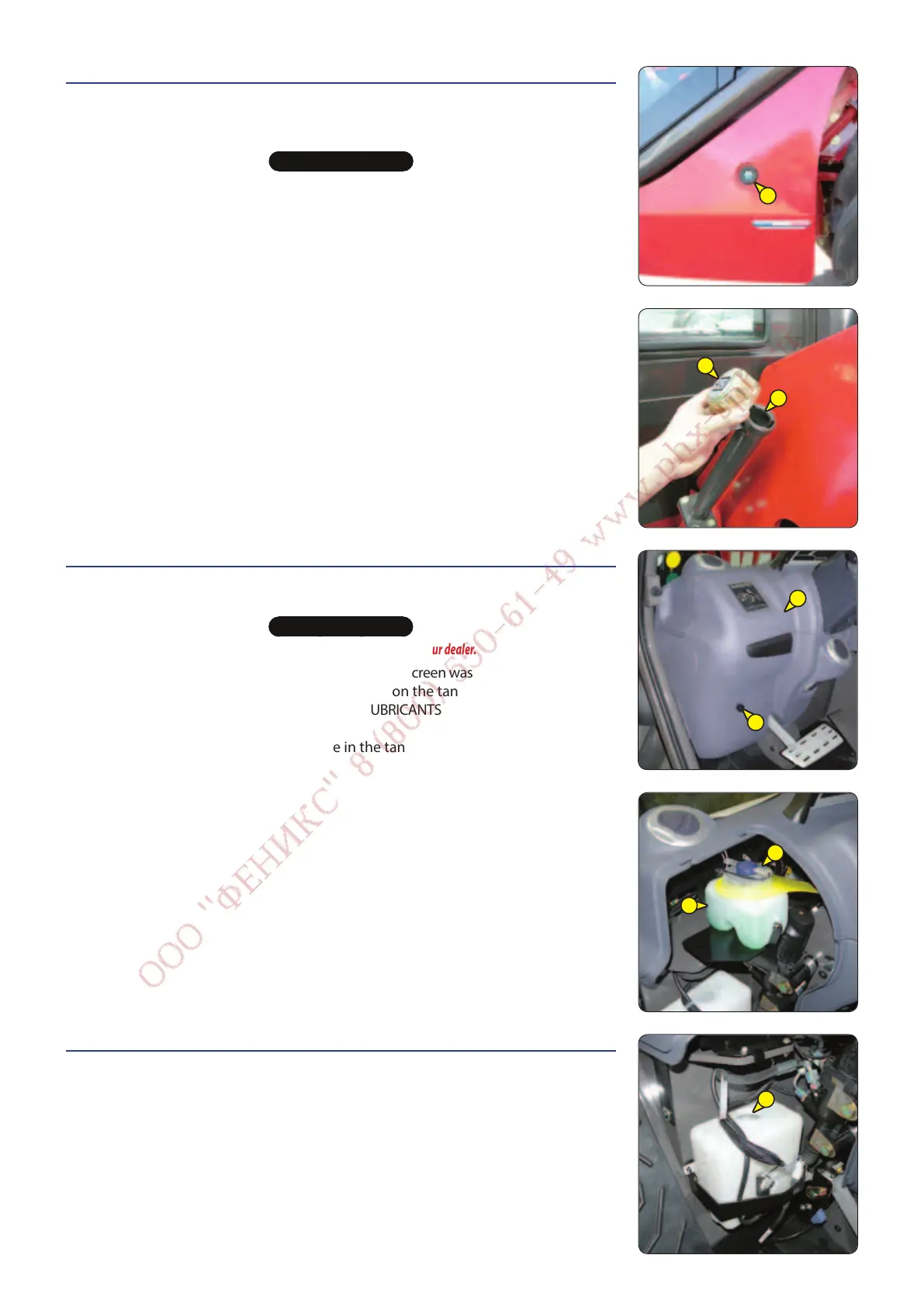

B6 – HYDRAULIC OIL LEVEL
CHECK
Place the lift truck on level ground with the engine stopped, and the boom retracted
and lowered as far as possible.

IMPORTANT

Use a clean funnel and clean the underside of the oil drum before filling.
- Check dipstick 1, the correct level must stand at the level of the red point.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove cap 2.
- Add oil through filler port 3.
- Refit the cap.
- Visually check that there is no leakage in the tank and pipes.
B7 – BRAKE OIL LEVEL
CHECK
Place the lift truck on level ground.

IMPORTANT

If the brake oil level is abnormally low, consult your dealer.
- Loosen screw 1 and lift up the brake fluid and windscreen washer tank access panel 2.
- The level is correct when it is at the MAX level on the tank 3.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) via the filler port.
- Pivot the tank 3 to access filler cap 4.
- Visually check that there is no leakage in the tank and pipes.
B8 – WINDSCREEN WASHER LIQUID LEVEL
CHECK
- Visually check the level.
- If necessary, add windscreen washer fluid (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL) through the filler port 3.
- Refit the brake oil and windscreen washer tank access panel 2 and re-tighten screw 1.
3 - 17
1
2
3
3
4
3
1
2
647449 (30/11/2015) MT 732/932 ST3B
