B5 – GENERAL GREASING
GREASE
To be carried out weekly, if the lift truck has been operated for less than 50 hours during the week.
IMPORTANT
In the event of prolonged use in an extremely dusty or oxidizing atmosphere, reduce this interval to every 10 hours of service or every day.
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) and remove the surplus
of grease.

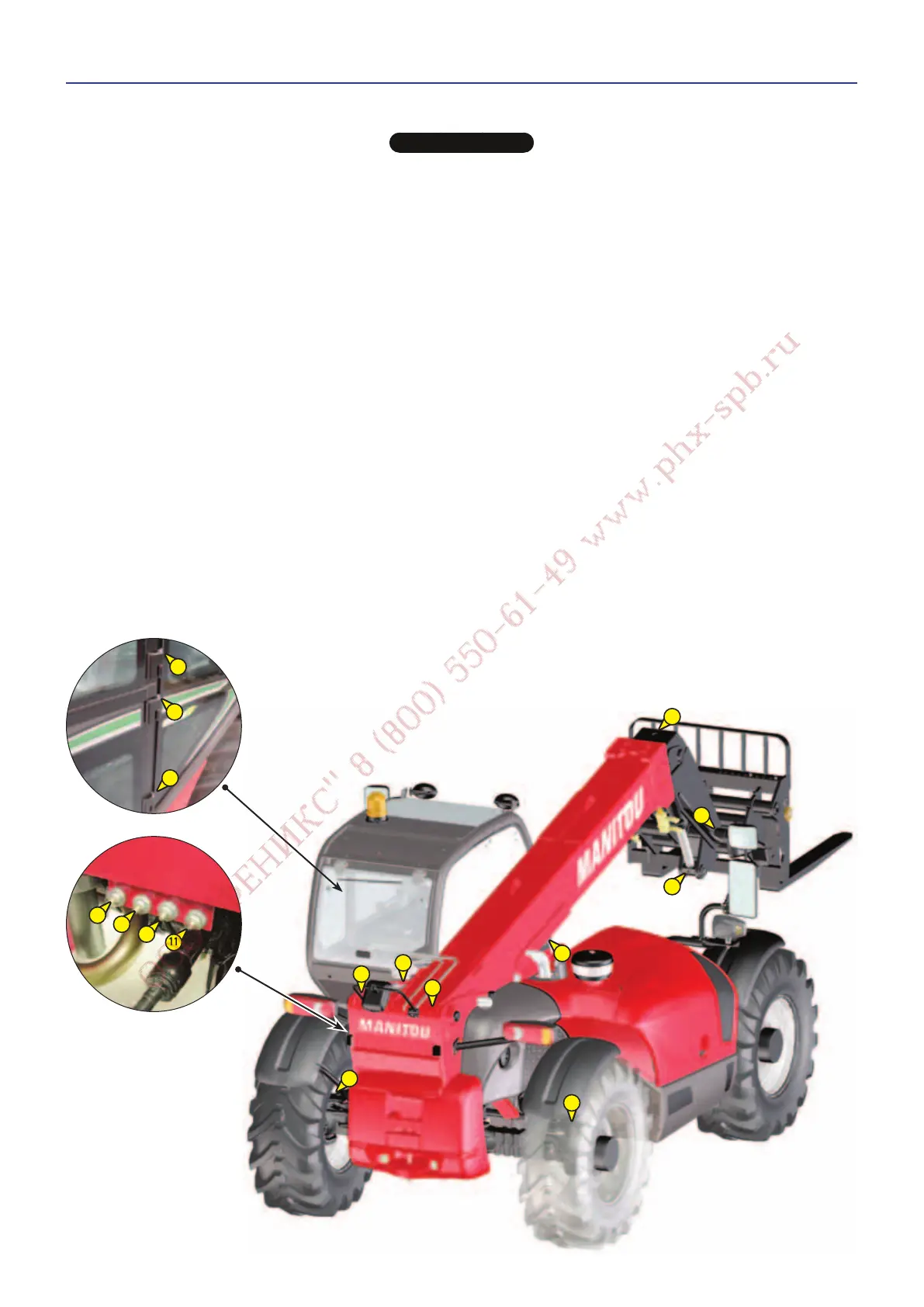

BOOM
1 - Lubricators of the boom axle (2 lubricators).
2 - Lubricators of the carriage axle (2 lubricators).
3 - Lubricator of the tilt cylinder foot axle (1 lubricator).
4 - Lubricator of the tilt cylinder head axle (1 lubricator).
5 - Lubricator of the lifting cylinder foot axle (1 lubricator).
6 - Lubricator of the lifting cylinder head axle (1 lubricator).
7 - Lubricator of the compensation cylinder foot axle (1 lubricator).
8 - Lubricator of the compensation cylinder head axle (1 lubricator).
CAB DOOR
9 - Door lubricators (4 lubricators).
FRONT AND REAR WHEEL REDUCTION GEAR PIVOTS
10 - Lubricators of the wheel reduction gear pivot pins (8 lubricators).
REAR AXLE OSCILLATION
11 - Rear axle oscillation lubricators (2 lubricators).
3 - 16
5
7
11
11
9
9
9
1
1
2
3
10
4
6
8
10
647449 (30/11/2015)
MT 732/932 ST3B
