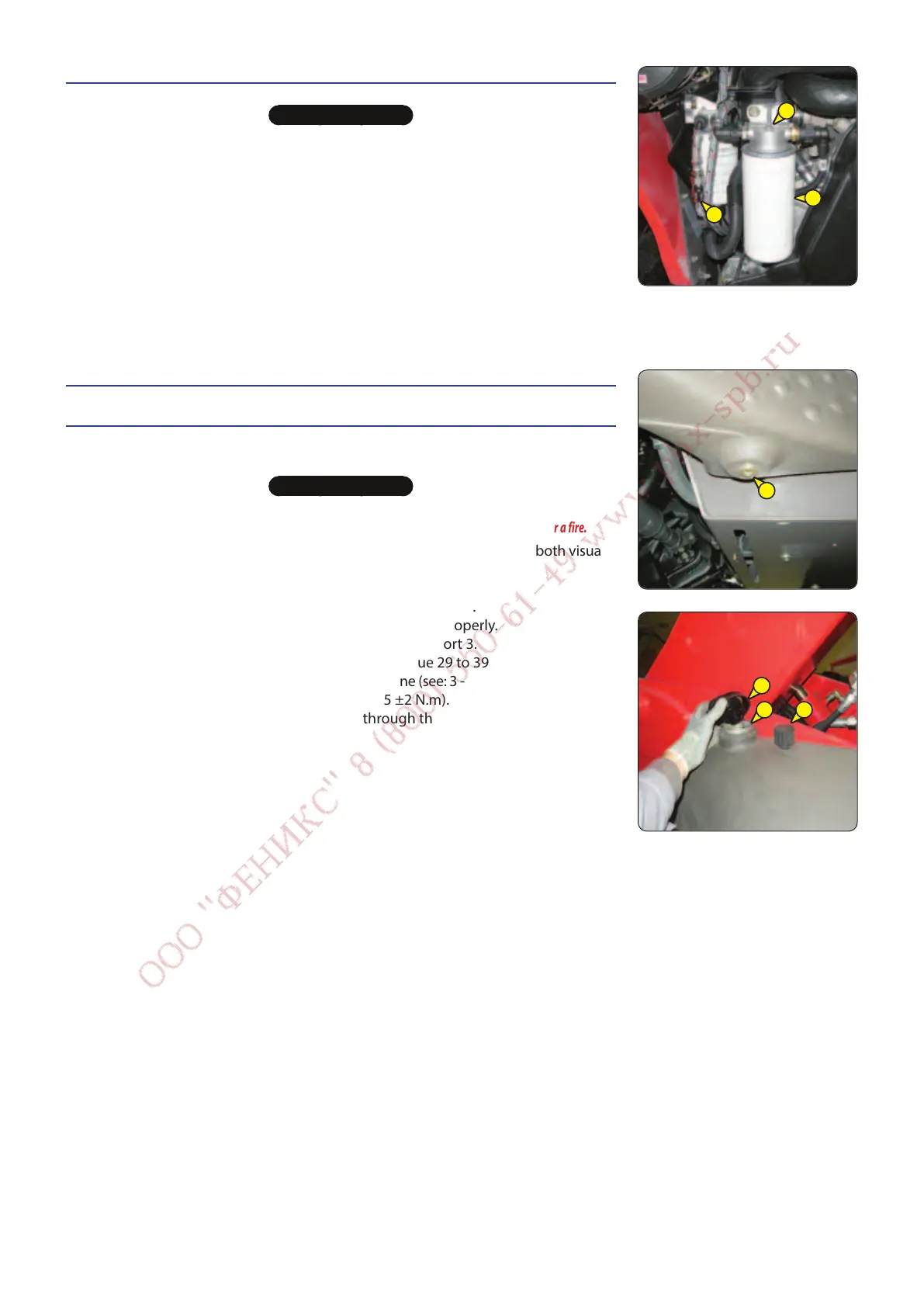

E3 – FUEL FILTER
CHANGE
IMPORTANT
Carefully clean the outside of the filter and its holder, to prevent dust from getting into the system.
- Unscrew and discard the fuel filter 1.
- Clean the inside of the filter head using a brush immersed in clean diesel oil.
- Refit a filter and a new seal lubricated with clean diesel beforehand (see: 3 -
MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Tighten the filter, making sure that the seal is correctly positioned (tightening
torque 10-12 N.m).
- Turn on the fuel supply by turning the thumbwheel 2 anti-clockwise.
- Open the bleed screw 4 of the fuel pre-filter and the bleed screw 3 of the fuel filter.
- Switch on the lift truck's ignition, and close the bleed screw as soon as the diesel
flows with no air.
E4 – FUEL TANK
CLEAN
E5 – FUEL TANK BREATHER
CHANGE
Place the lift truck on level ground with the engine stopped.
IMPORTANT
While carrying out these operations, do not smoke or approach with a flame.
Never try to carry out welding or any other operation by yourself, as this could cause an explosion or a fire.
- Inspect the parts susceptible to leaks in the fuel circuit and in the tank both visually
and by touch.
- In the event of a leak, contact your dealer.
- Place a container under drain plug 1 and unscrew the plug.
- Remove filling plug 2 to ensure that the oil is drained properly.
- Rinse out with ten liters of clean diesel through filler port 3.
- Refit and tighten the drain plug 1 (tightening torque 29 to 39 N.m).
- Unscrew the breather 4 and replace with a new one (see: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS) (tightening torque 5 ±2 N.m).
- Fill the fuel tank with clean diesel filtered through the filler port.
- Refit the filler plug.
1
2
3
1
2
3 4
