E6 – GEAR BOX OIL
DRAIN
E7 – GEAR BOX SUMP STRAINER
CLEAN
Place the lift truck on level ground with the engine stopped, the gear box oil still warm.
IMPORTANT
Raise the boom and place the boom safety wedge on the rod of the lifting cylinder (see: 1 - OPERATING AND SAFETY INSTRUCTIONS: LIFT TRUCK
MAINTENANCEINSTRUCTIONS).
Dispose of the drain oil in an ecological manner.

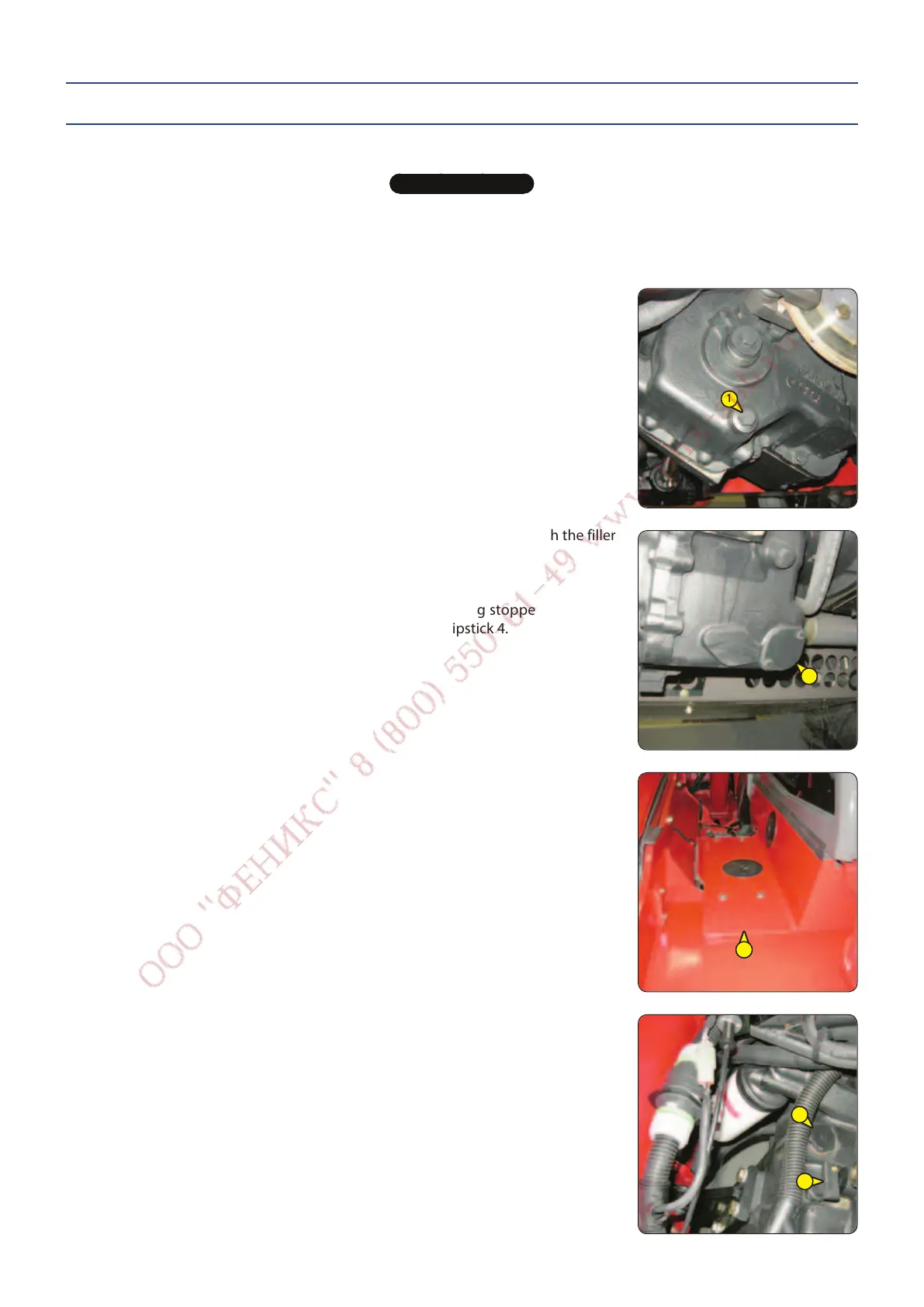

DRAINING THE OIL
- Place a container under drain plug 1 and under cover 2 and unscrew the drain plug.
- Remove the cover plate 3.
- Remove dipstick 4 and unscrew filling plug 5 in order to ensure that the oil is
drained properly.
CLEANING THE STRAINER
- Remove cover 2 and set aside the O-ring joint and sealing washer.
- Allow the rest of the oil to drain away.
- Remove and clean the strainer using a compressed air jet.
- Clean the magnetic section on the plate.
- Refit the assembly and tighten up plate 2 (tightening torque 18 to 31 N.m).
FILLING UP THE OIL
- Refit and tighten the drain plug 1 (tightening torque 34 to 54 N.m).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through the filler
port 5 and refit the plug.
- Start the engine and let it run for a few minutes.
- Check any possible leaks from the drain plug or cover.
- Stop the engine, and within 5 minutes of the engine being stopped, check the
correct level between the MIN and MAX marks on the dipstick 4.
- Top up the level if necessary.
- Refit cover plate 3.
3 - 28
1
2
3
4
5
