H2 – LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
RESET
According to the use of the lift truck, the device may require to be periodically reset.
This procedure allows this operation to be easily done.
- Provide a fork carrier or a bucket and a load corresponding to at least half the lift truck's rated capacity.
- Preferably perform the reset when the lift truck is still cold (before it is used) or ensure that the temperature of the rear
axle is not more than 50°C.
- Place the lift truck on flat, level ground with the wheels straight.

IMPORTANT

Carefully follow the boom positioning instructions. Two audible beeps and lighting of the warning indicator lamp will inform you if you have failed to follow these
instructions correctly. If in doubt, contact your dealer.
When the reset is complete, check correct operation of the longitudinal stability limiter and warning device (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS
OFSERVICE).

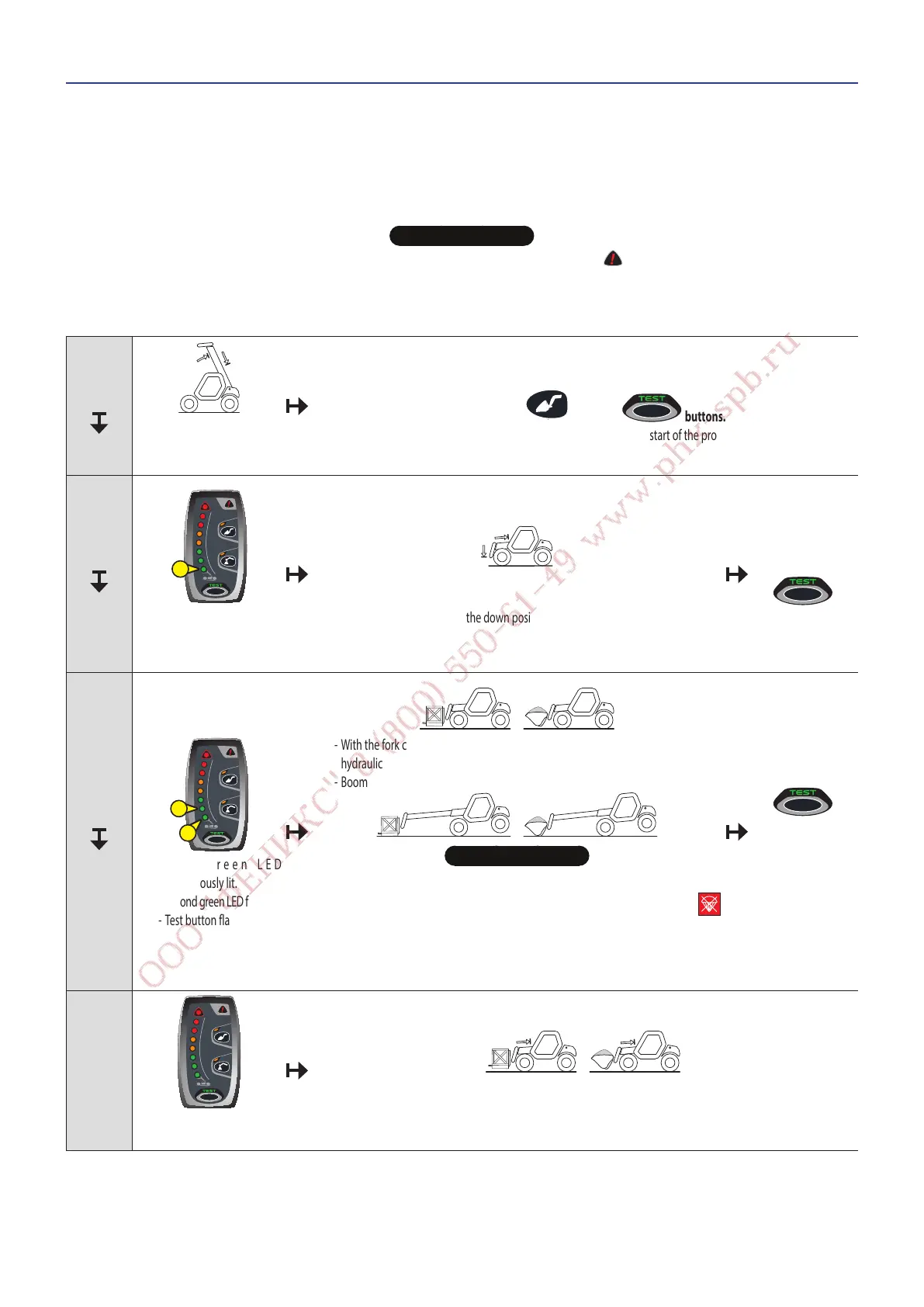

STEP 1
START
- Without attachments.
- Boom fully retracted and
raised.
Simultaneously press and hold down the
"BUCKET" MODE
and TEST buttons.
- Two beeps will sound and all the LEDs will flash twice to confirm the start of the procedure.
STEP 2
1
- An audible beep.
- First green LED flashing.
- Test button flashing.
- Without attachments.
- Carriage tilted fully backwards.
- Boom fully retracted and in the down position a few centimeters off the ground.
Short press the test
button.
STEP 3
2
1
-First green LED
continuously lit.
- Second green LED flashing.
- Test button flashing.
/
- With the fork carrier or the bucket and a load (keep boom retracted to allow all other
hydraulic movements).
- Boom fully retracted and in the down position a few centimeters off the ground.
/

IMPORTANT

Keep the load as close to the ground as possible throughout this operation.
- Hold down the disable the "aggravating" hydraulic movement cut-off button
(indicator lamp lit), and telescope the boom until the rear wheels leave the ground.
NOTE: This stage consists in unloading the rear axle. It can be done using a jack but
without bearing on the rear axle.
Short press the test
button.
Two beeps will
sound and all the
LEDs will flash twice
to confirm the end of
the procedure.
STEP 4
END
- All LEDs lit.
- A continuous audible beep.
/
- After completing the resetting procedure, the lift truck is in an overloaded condition. Retract the telescope
to restore the situation.
