2 - 41

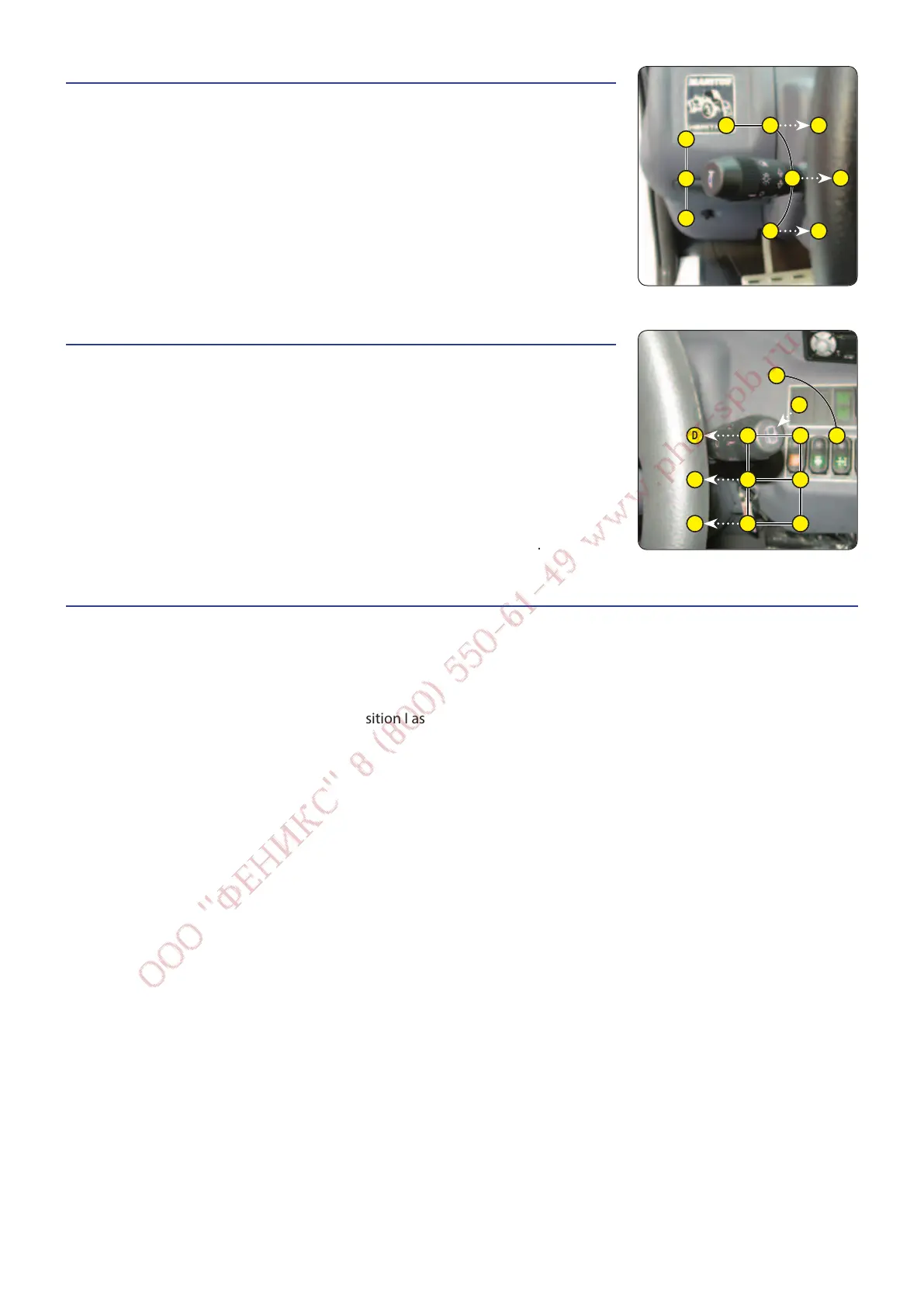

7 - LIGHTING, HORN AND INDICATOR LIGHTS
The switch controls the visual and sound alarms.
• A - All lights are off, the indicator lights do not flash.
• B - The right hand indicator lights flash.
• C - The left hand indicator lights flash.
• D - The sidelights and the rear lights are on.
• E - The dipped headlights and the rear lights are on.
• F - The main beam headlights and the rear lights are on.
• G - Headlight signal.
Pressing the end of the switch sounds the horn.
NOTE: The positions D - E - F - G can be carried out without the ignition being on.
8 - FRONT AND REAR WINDSCREEN WIPER SWITCH
FRONT WINDSCREEN WIPER
• A - Front windscreen wiper off.
• B - Front windscreen wiper low speed setting.
• C - Front windscreen wiper high speed setting.
• D - Front windscreen wiper intermittent setting.
REAR WINDSCREEN WIPER
• E - Rear windscreen wiper off.
• F - Rear windscreen wiper on.
• G - Rear windscreen washer, pulse driven (not used).
NOTE: These functions will only work when the ignition is switched on.
9 - IGNITION SWITCH
The ignition switch has five positions:
• P - Not used.
• O - Ignition switched off and engine stopped.
• I - Ignition + preheat.
• II - Not used.
• III - The engine starts and returns to position I as soon as the key is released.
F E G
G
GA
D
B
C
A
B
A
C
D
D
D
A
B
C
E
F
G
647449 (30/11/2015)
MT 732/932 ST3B
