Manitowoc 1400A - Lubrication Chart; Hydraulic oil reservoir; Oil filter, Hydraulic oil reservoir; Magnetic Plug, Hydraulic oil reservoir

National Crane 1-21-2019 Control # 104-07 8-5
1400A SERVICE MANUAL LUBRICATION
8
Lubrication Chart
Table 8-1
5
18
15
13
7
19
2
4
1
14
3
10a
10b
6
8
12
11
16

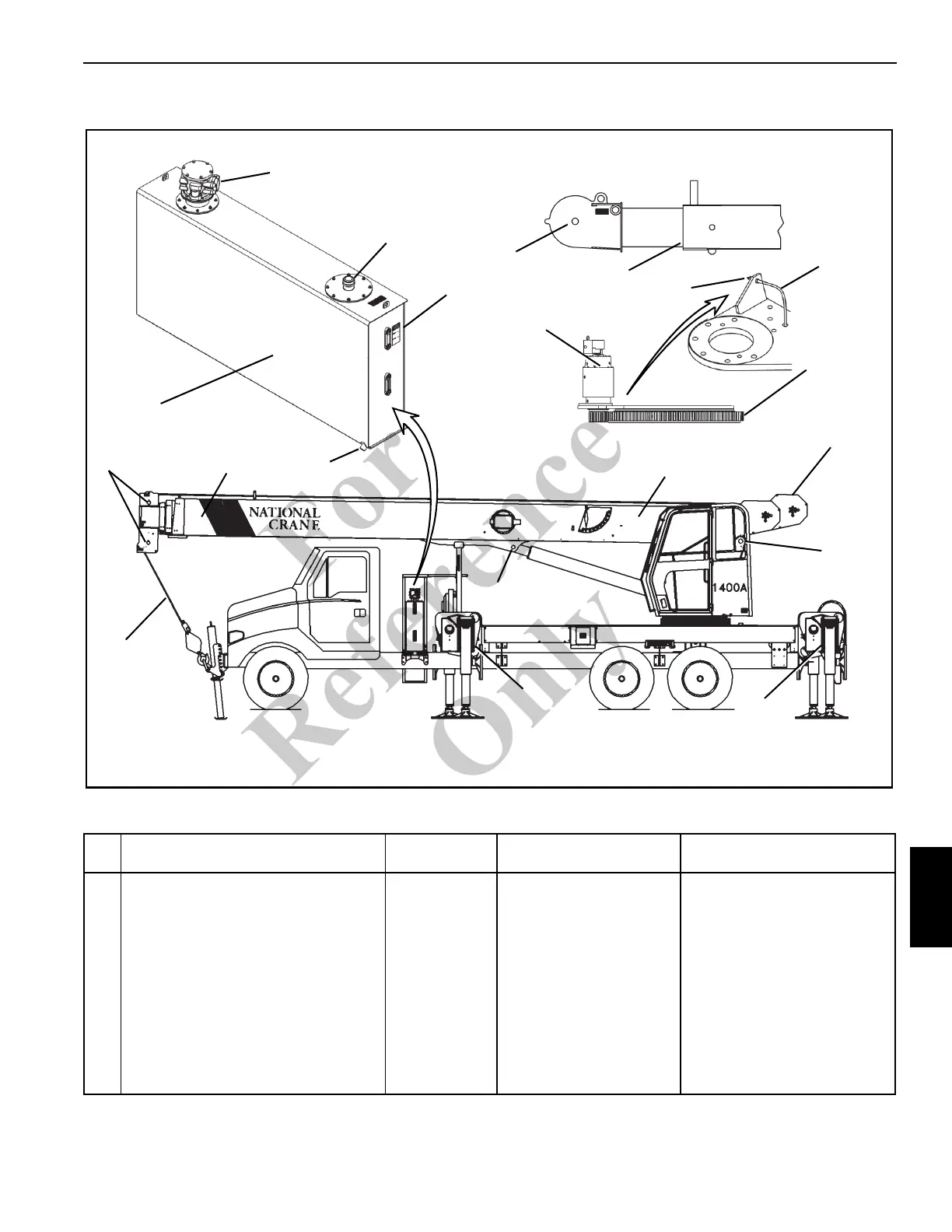

FIGURE 8-2
5
14
Grease
Tube
Item Application
Recommended
Lubricant
Procedure Frequency
1 Hydraulic oil reservoir HYDO Check fill change
Weekly As Required
Semi-Annually
2 Oil filter, Hydraulic oil reservoir Change or clean
After first 40 Hrs. As indicated by
gauge thereafter.
3 Magnetic Plug, Hydraulic oil reservoir Clean At oil filter service interval.
4 Breather, Hydraulic oil reservoir Clean Monthly
5
Sheave pins: boom (5 plcs), jib (1 pl),
block (1 pl), rooster sheave (1 pl)
EP-MPG Grease gun Weekly
6 Boom pivot pin EP-MPG Grease gun Monthly
7 Lift cylinder pins - 2 ea. EP-MPG Grease gun Monthly
8 Turntable bearing (4 plcs) EP-MPG Grease gun Weekly
