GRT8100 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3

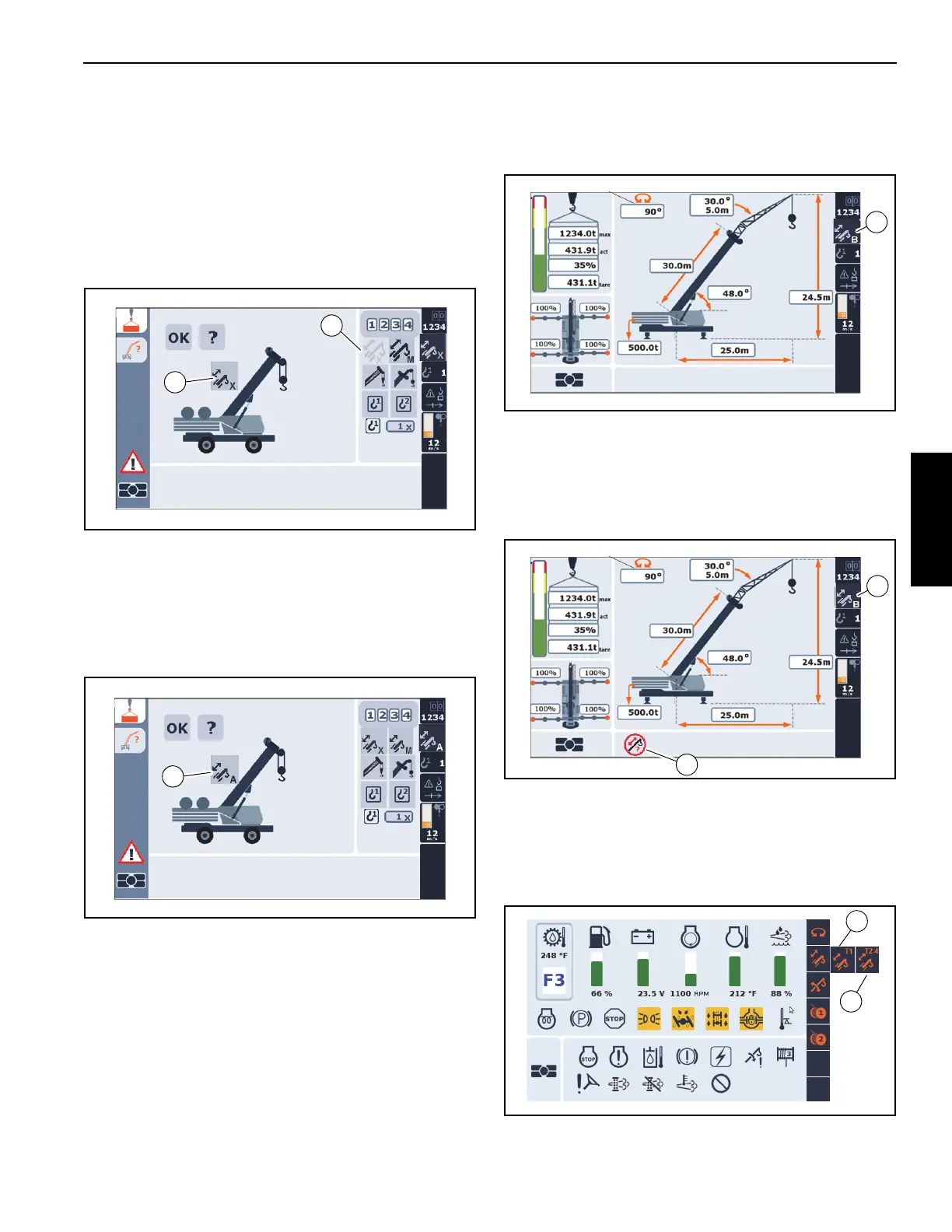

A&B Modes Disabled - No Load Chart For Selected
Rigging Code
Example: Operator manually selects a rigging code for “On
Rubber” using numeric spin boxes. The code is for Mode A,
which is disabled.
Any enabled mode not available for selection is grayed out
(1).
The selected mode (2) not available for the entered rigging
code flashes.
A & B Modes Disabled When “A” Mode Confirmed
Example: Operator disables an automatic mode on the
Telescoping Configuration Screen when mode is currently
active on the Operating Screen.
Flash selected mode (1), which was disabled.
RCL Display Operating Screen
Confirmed Telescoping Mode
Confirmed telescoping mode (1) shown in status bar.
Out of Sequence
Confirmed telescoping mode (1) shown in status bar.
Out of sequence symbol (2) displayed. RCL is locked out
with audible and visual indications.
Select mode M in the RCL setup screen to recover.
Operating Screen
Mode M: active telescoping section T1 (1) or T2-4 (2) always
shown in the status bar
Mode A, X, B: T1 (1) or T2-4 (2) only shown when
telescoping is active.
1
2
1
1
2
1
1
2
