21Grove RT890E
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
Load handling
Installation and removal of
counterweight and auxiliary hoist
Rear axle
oscillation
lockouts must
be set to
maintain 360
o
capacities
Boom
centered
over front
Diagram
for lifting
on tires
C6-829-003529
C6-829-001159
Front
360
o
12
o
6
o
Centerline
of boom
Diagram
for lifting
on outriggers
Centerline
of outrigger
support
Longitudinal
centerline
of crane
See note
at bottom
Centerline
of rotation
CG of
load
Over
front
Over
rear
Over
side
Over
side
360
o

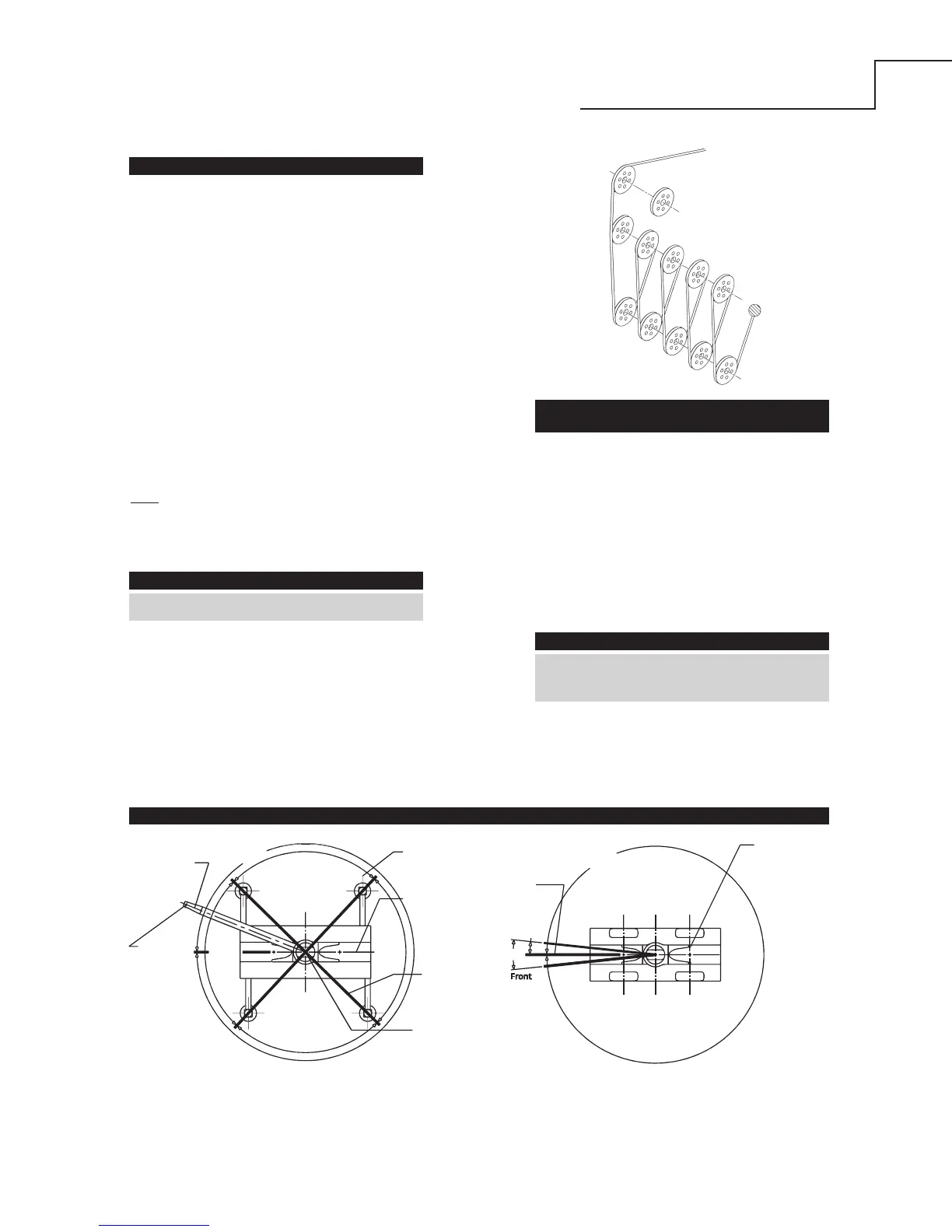

Working area diagram
Bold lines determine the limiting position of any load for operation within working areas indicated.
When lifting over swingaway and/or jib combinations, deduct
total weight of all load handling devices reeved over main
boom nose directly from swingaway or jib capacity.
NOTE: All load handling devices and boom attachments
are considered part of the load and suitable allowances
MUST BE MADE for their combined weights. Weights are for
Grove furnished equipment.
Weight reductions for load handling devices
Wire Hoist line pulls Drum rope
rope two speed hoist capacity (ft)
layer Low High 15 in drum
Available lb* Available lb* Layer Total
1 20,250 9610 101 101
2 18,490 8770 110 211
3 17,010 8070 120 331
4 15,750 7470 129 460
5 14,660 6960 139 599
*Max. lifting capacity: 6x37 or 35x7 class = 16,800 lb
Hoist performance
Permissible Nominal
Hoists Cable specs line pulls cable length
19 mm (3/4 in) 6x37 class,
Main EIPS, IWRC special flexible 16,800 lb 600 ft
min. breaking str. 58,800 lb
19 mm (3/4 in) Flex-X 35
Main and Aux. rotation resistant
(non-rotating) 16,800 lb 600 ft
min. breaking strength 85,800 lb
The approximate weight of 3/4 in wire rope is 1.5 lb/ft
33 ft – 56 ft
Folding boom extension
*33 ft extension (erected) 3750 lb
*56 ft extension (erected) 8000 lb
*72 ft (1 insert erected) 10,450 lb
*88 ft (2 inserts erected) 13,000 lb
*Reduction of main boom capacities
(no deduct required for stowed boom extension)
Rated lifting capacities in pounds on outriggers fully extended –
Radius in LMI Code #0801
feet Main boom length
37.3 ft*
10 24,000
12 24,000
15 24,000
20 24,000
25 24,000
30 24,000
*The boom must be fully retracted.
A6-829-103450
Auxiliary boom nose 133 lb
Hookblocks and headache balls:
80 USt, 5 sheave 1600 lb +
90 USt, 5 sheave 1300 lb +
10 USt overhaul ball 568 lb +
+ Refer to rating plate for actual weight.
Line pulls and reeving information
