eikon e2s Service and Repair Manual UL 171
4.

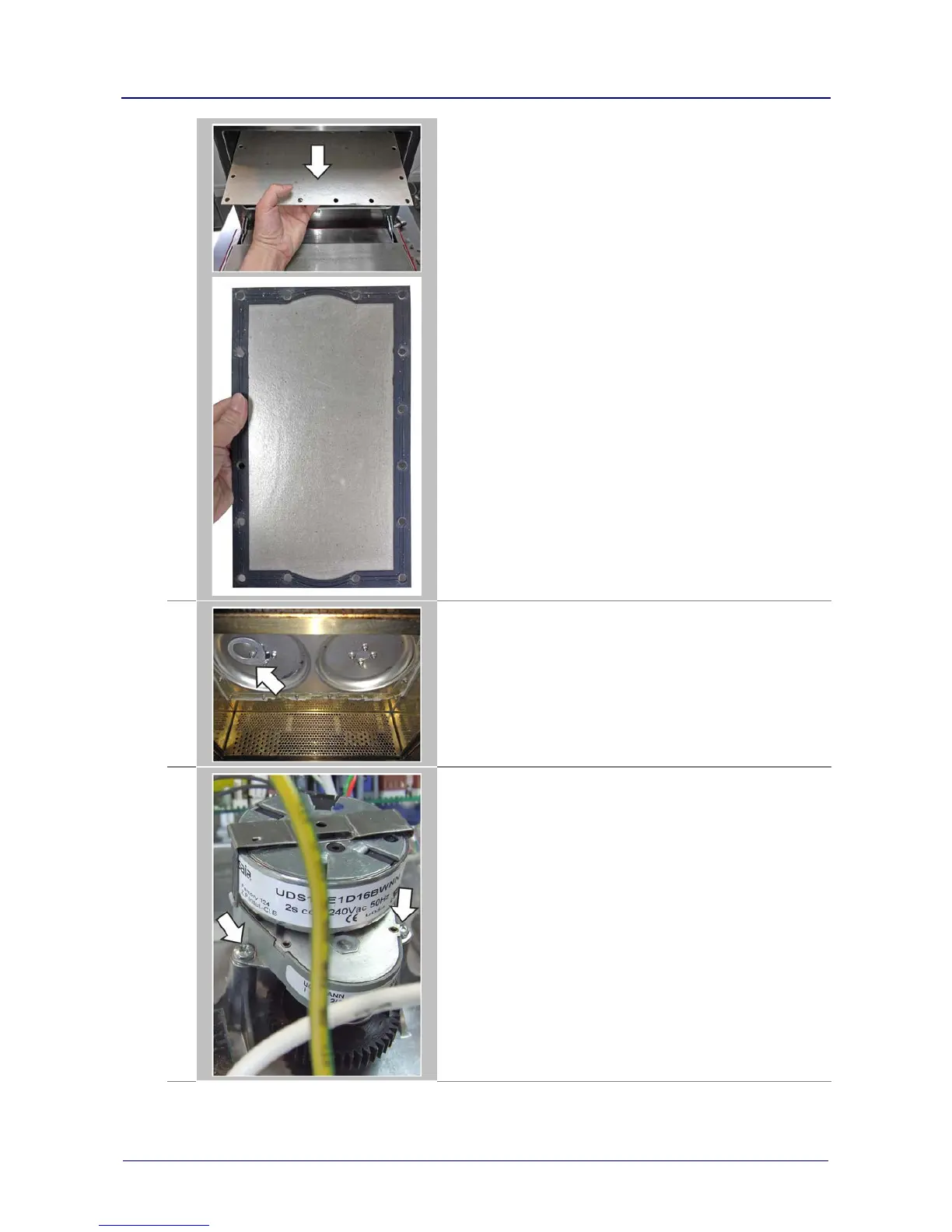

Remove the partition plate from the cavity.
NOTE:
The partition plate features a rubber gasket on the side pointing
upwards (to the stirrer) when mounted.
The rubber gasket prevents grease laden air from soiling the
stirrers and needs to be intact at any time.
5.
The image shows the 1000W e2s variant equipped with one
stirrer/stirrer motor.
The 2000W e2s variant has a second stirrer/stirrer motor in the
right niche.
6.
After removing the partition plate the stirrer motor on top of the
cavity can be dismounted using a Pozidriv PZ1 screwdriver.
NOTE:
The threads at the stirrer motor are locked with Loctite.
