Limit Switch Wiring
Wire Color
Switch
Terminals
Function
Black 13 Normally Open
Green 14 Input
White 21 Normally Closed
Blue 14 22 Jumper
Item Description
1 Hydraulic Cylinder
2Cam
3Pawl
4Spring
5 Adjusting Nut (qty 2)
6 Eyebolt
7 Ratchet
8Limit Switch
9Setscrew
10 Limit Switch Shaft
11 Limit Switch Lever
View A—Engaged
View B—Disengaged
View C

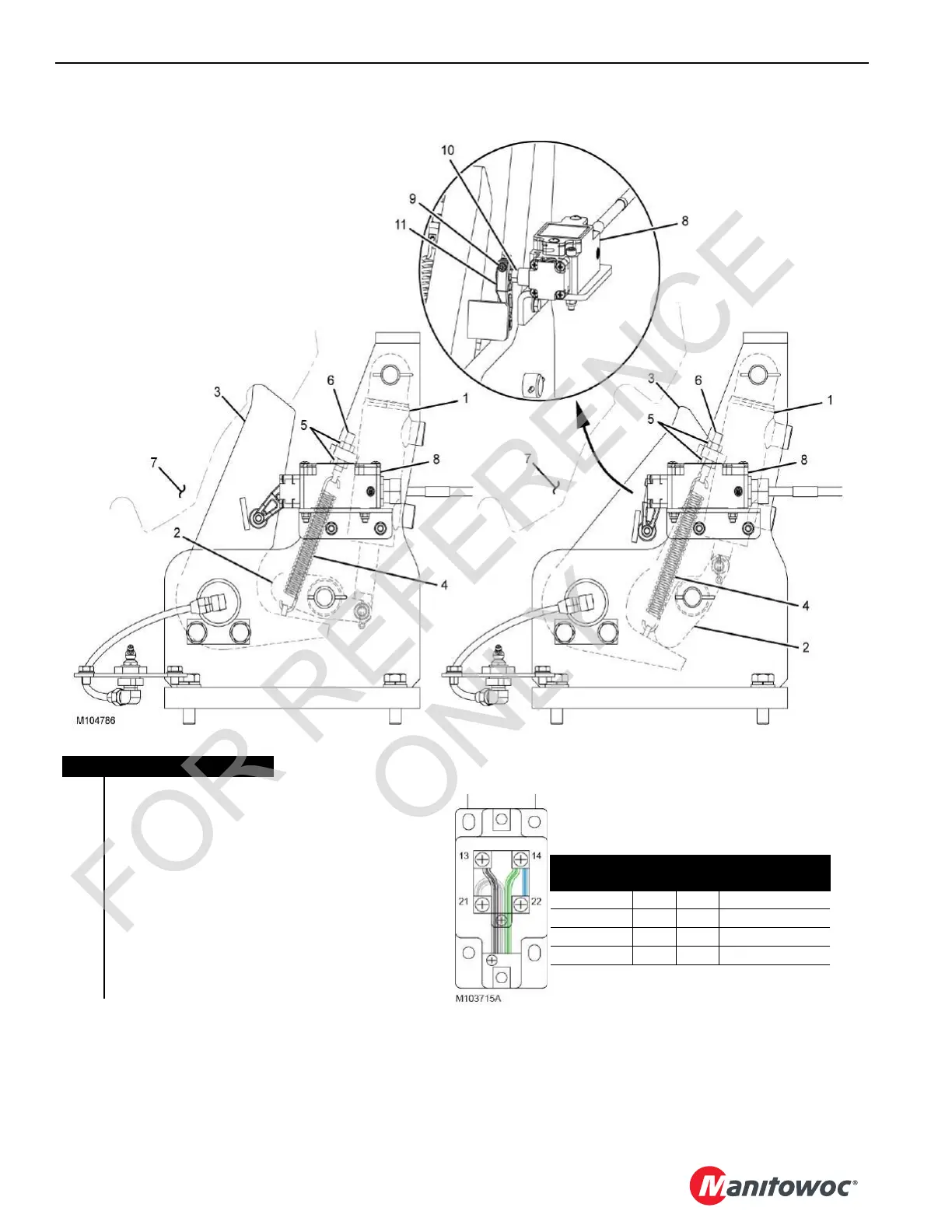

FIGURE 5-16
