Swing Hydraulic Diagram
A detailed hydraulic schematic is provided at the end of Section 2 in this Service Manual.

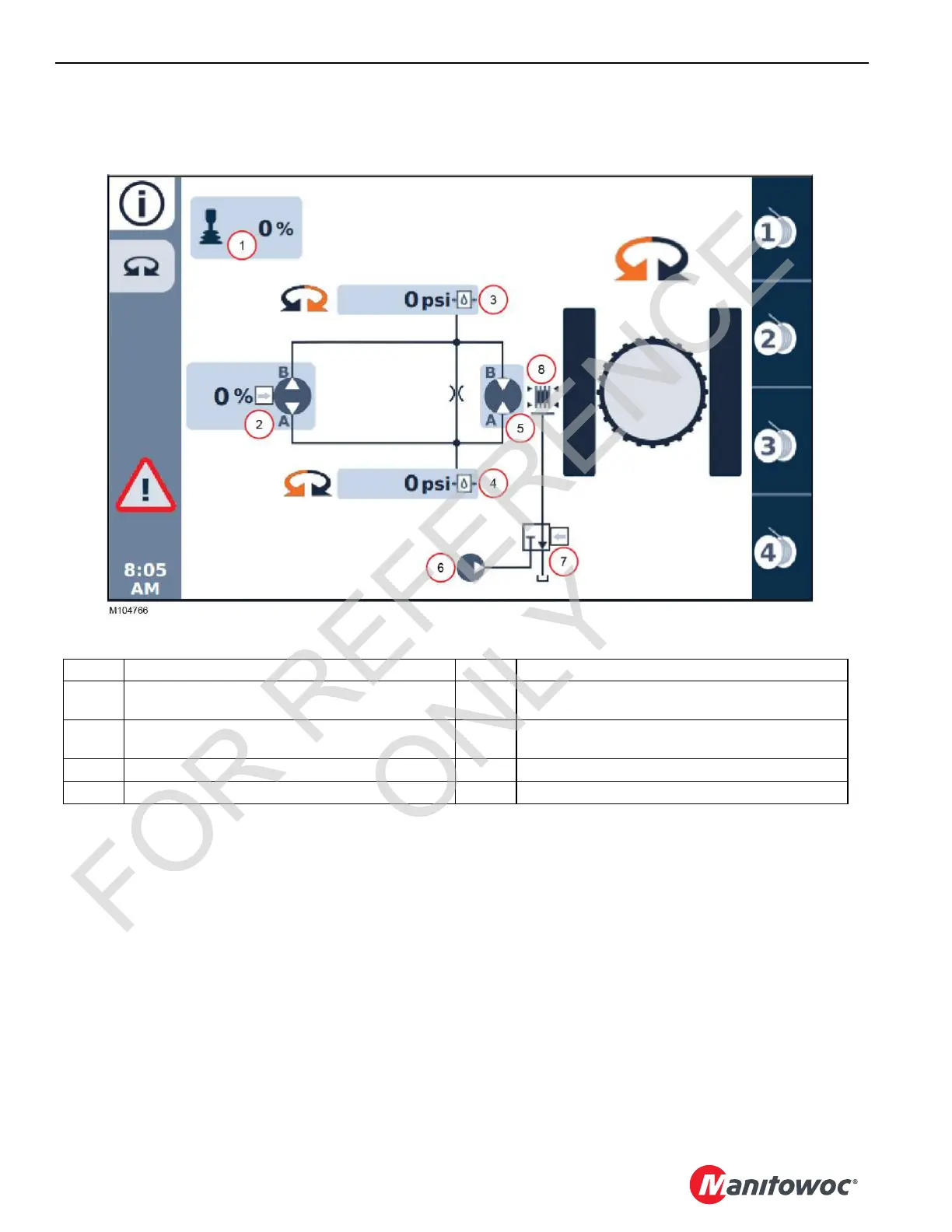

FIGURE 6-1
Item Swing Components Item Swing Components
1 Control Handle (Command -100 to 100%)
+ number = swing right, – number = swing left
5Motor
2 Pump (Command -100 to 100%)
+ number = swing right, – number = swing left
6 Accessory Pump
3 Pressure Sensor (Right Swing) 7 Brake Valve
4 Pressure Sensor (Right Left) 8 Brake
