Manitowoc MLC80A-1 - Swing Electrical Diagram

Manitowoc Published 10-09-2020, Control # 259-06 6-5
MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL SWING SYSTEM
6

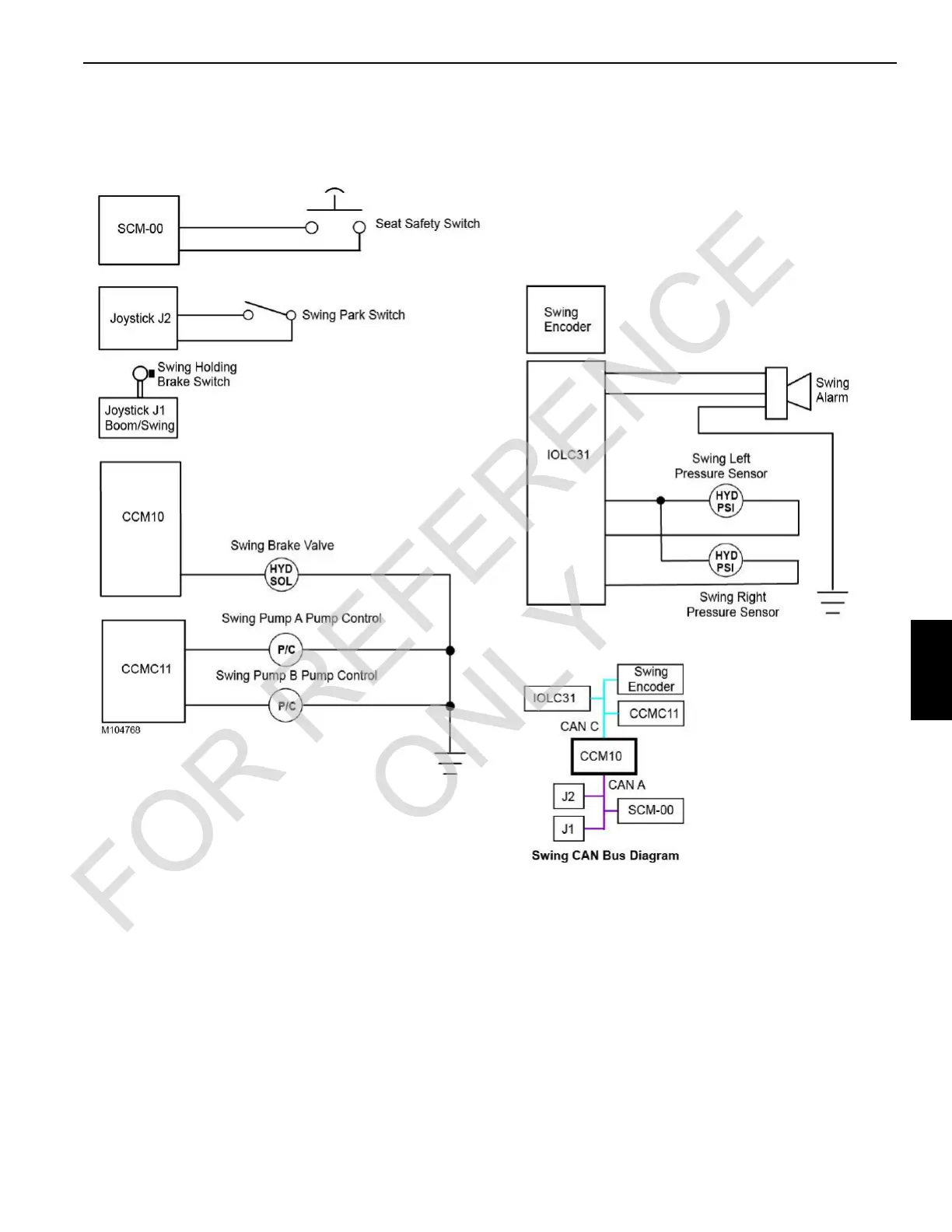

Swing Electrical Diagram
A detailed electrical schematic is provided at the end of Section 3 in this Service Manual.
FIGURE 6-2
FOR REFERENCE
ONLY
