MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
Travel Motors
The travel motors (Figure 2-9) are 160 cc (max), 70 cc (min)
bidirectional, variable-displacement motors. Motor
displacement is controlled by the two-speed signal and
pressure override.

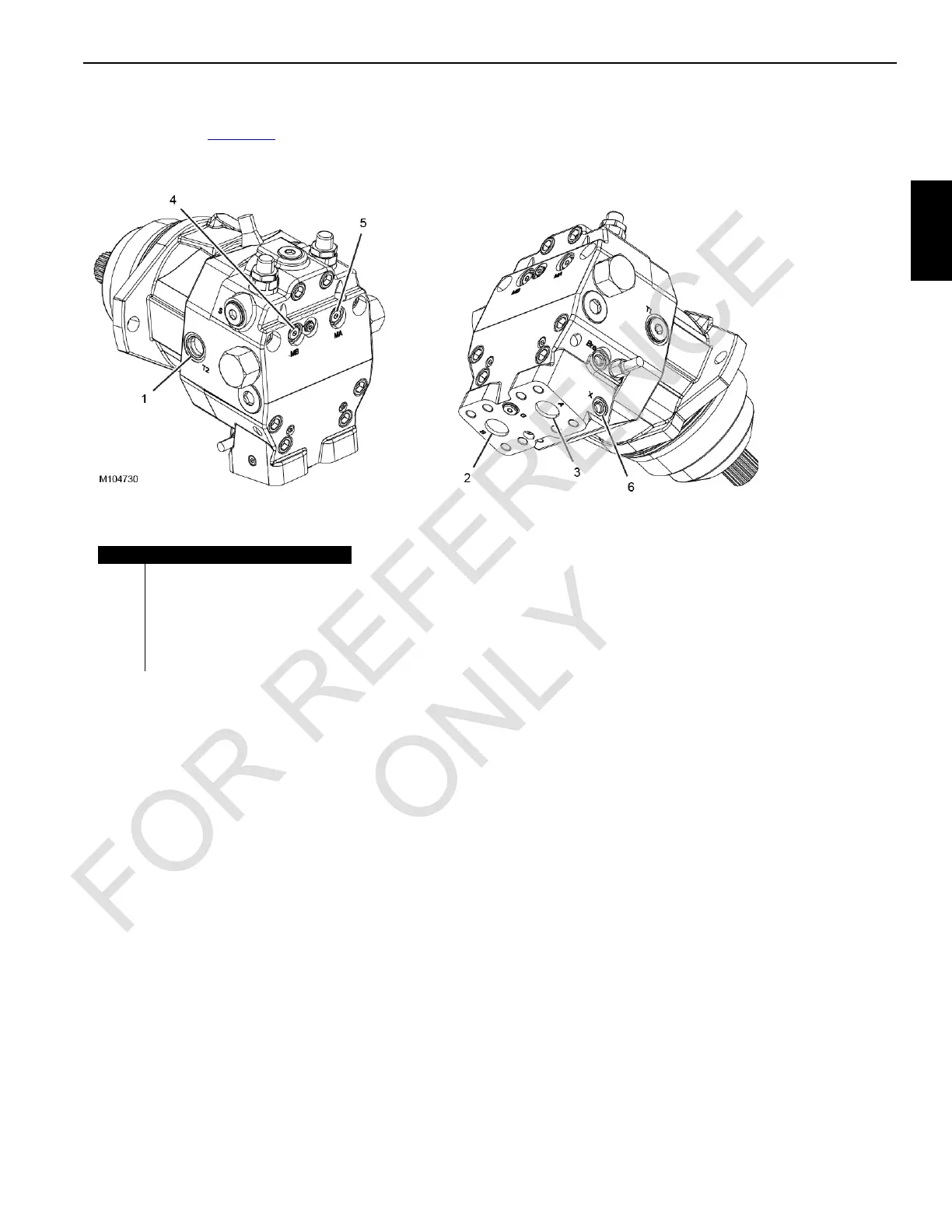

FIGURE 2-9
Item Description
1 Tank Port T2
2 Pressure Port B
3 Pressure Port A
4Test Port Ma
5Test Port Mb
6 2-Speed Port X
