HOISTS MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
5-26
Published 10-09-2020, Control # 259-06

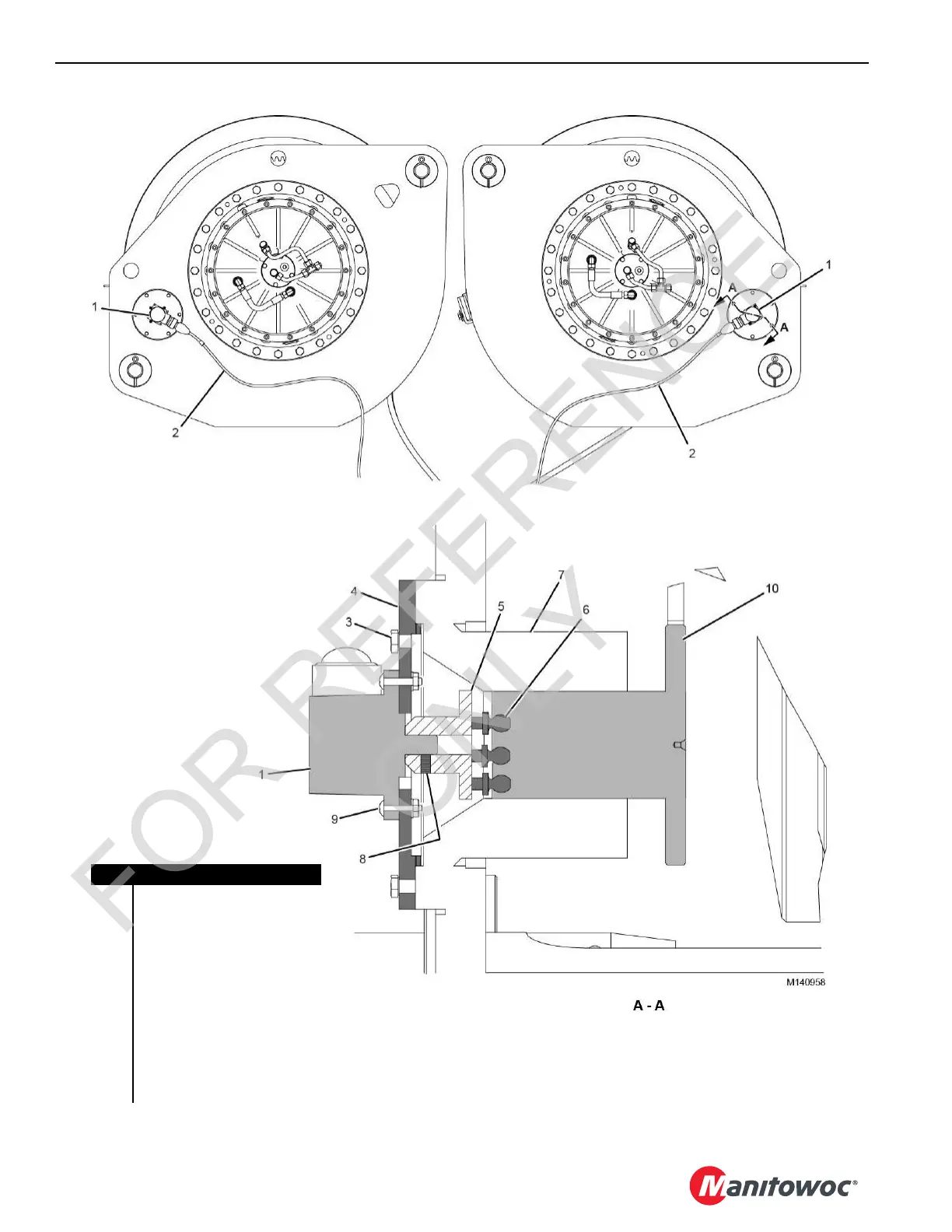

FIGURE 5-19
Item Description
1 Speed Sensor
2 Electrical Cable
3 Hex Cap Screw (Qty 6)
4Cover
5Driver
6 Driver Studs (Qty 3)
7 Bearing Housing
8 Set Screw
9 Phillips Head Screw, Flat
Washer and Nut (Qty 4)
10 Drive Pinion
