UNDERCARRIAGE MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
8-6
Published 10-09-2020, Control # 259-06

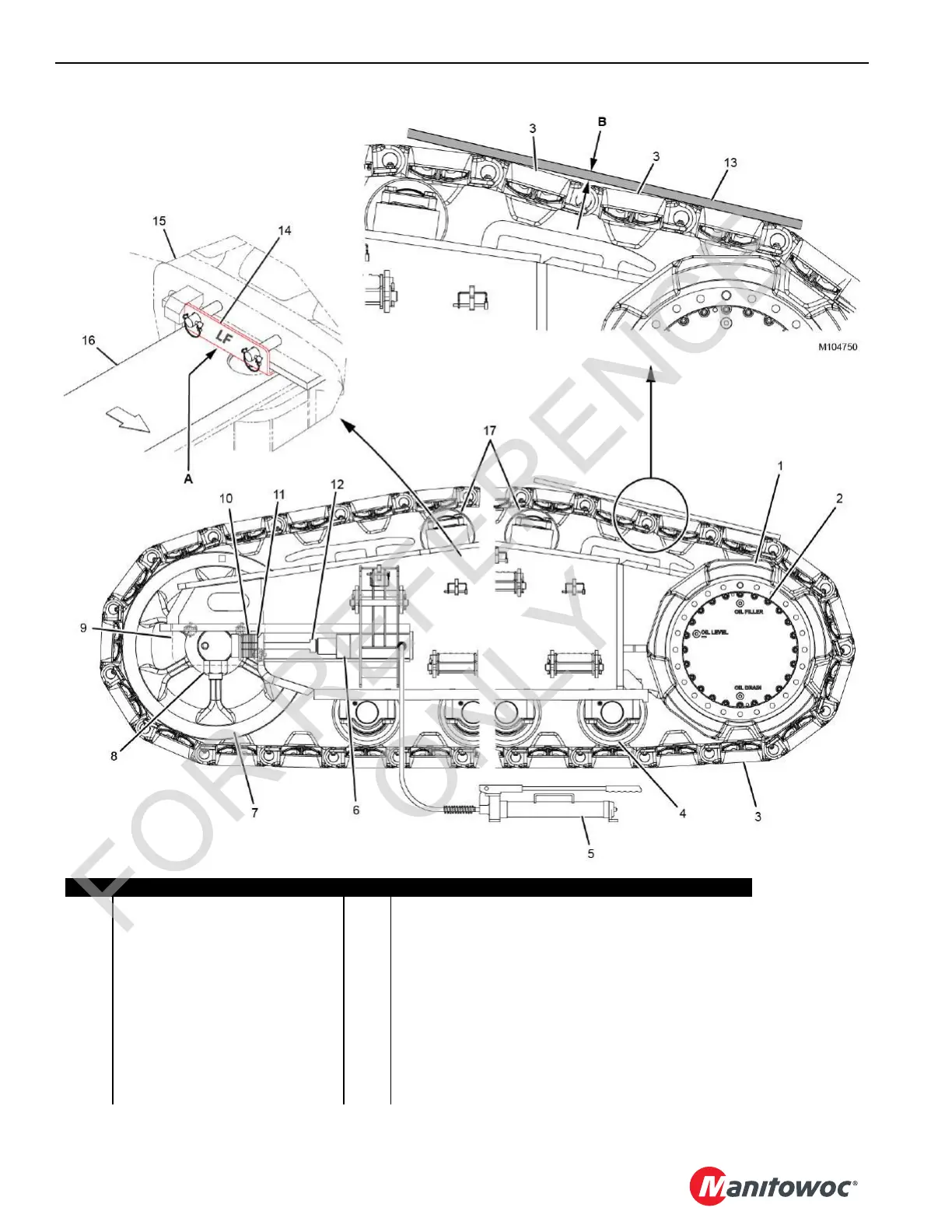

FIGURE 8-4
Quantities are for Both Crawler
Item Description Item Description
1 Drive Tumbler 10 Shim: Qty 18, 6.4 mm (0.25 in) thick
2 Gearbox 11 Shim: Qty 2, 3.4 mm (0.134 in) thick
3 Tread 12 Adjusting Rod
4 Idler Rollers 13 Straightedge
5 Hand Pump 14 Shim Pack: 1 each 2 mm - 10 mm (0.08 in - 0.39 in) thick
6 Cylinder 15 Crawler
7 Front Roller 16 Carbody Leg (4 places)
8 Nut and Bolt 17 Top Rollers
9 Cover (shown removed) A Crawler to Carbody Gap: 1 mm to 3 mm (0.04 in to 0.112 in)
B Tread Slack Dimension
• 13 mm (0.5 in) — Tight Limit
• 51 mm (2.0 in) — Loose Limit
View B
View A
4 Places
