HYDRAULIC SYSTEM MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL

2-18

Published 10-09-2020, Control # 259-06

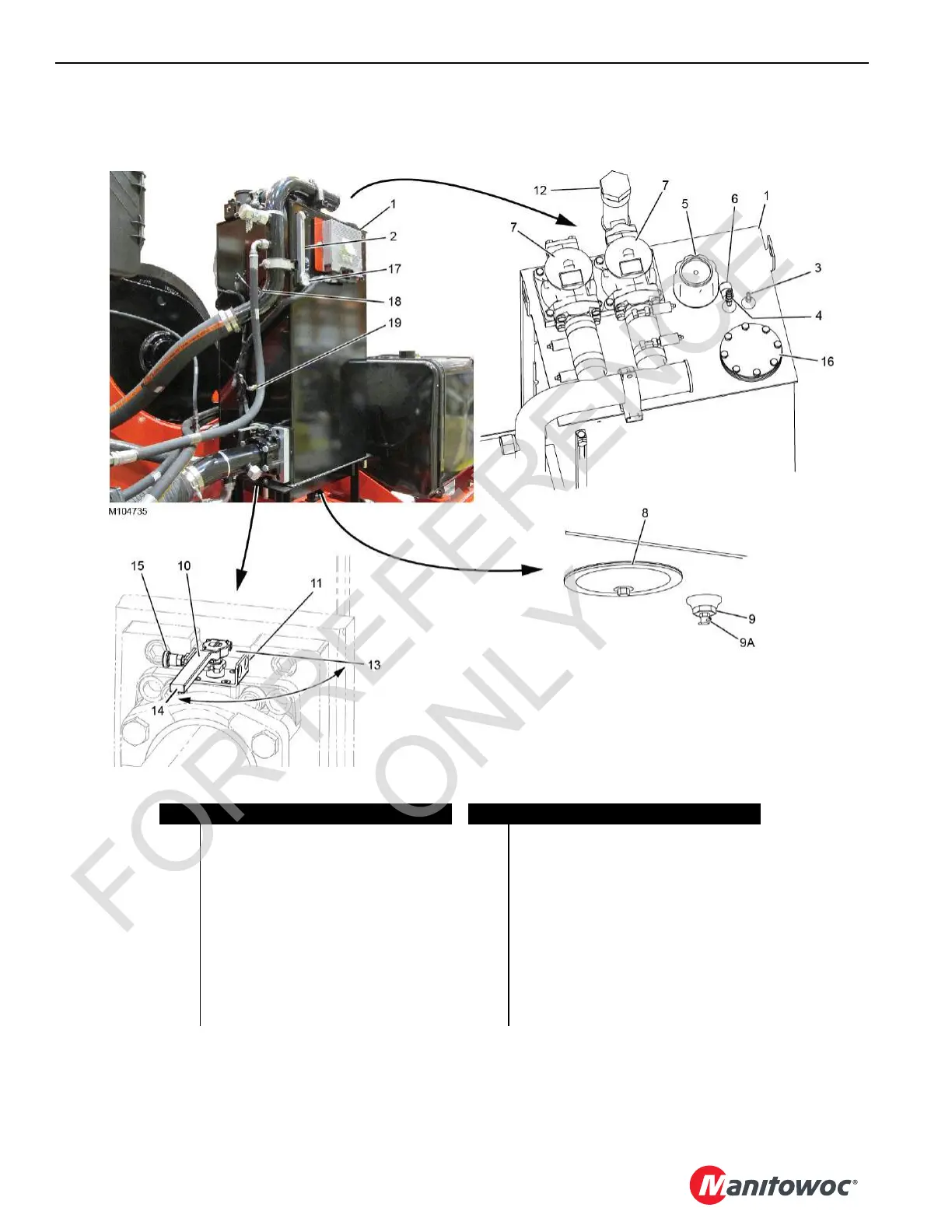

FIGURE 2-15

Item Description

1 Hydraulic Tank

2 Oil Level Sight Gauge

3 Schrader Valve

4 Vent Valve (requires a mating coupler)

5 Desiccant Breather

6 Level Sensor

7 Pipe Nipple

8 Access Cover

9 Drain Plug (with Vent Valve)

9A Vent Plug (for draining water)

Item Description

10 Shut-Off Valve

11 Padlock Holes

12 Fill Plug

13 Shut-Off Closed Position

14 Shut-Off Open Position

15 Locking Knob

16 Hydraulic Tank Heater (not shown)

17 Temperature Gauge

18 Oil Level Switch

19 Temperature Sensor
