BOOM MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL
4-6
Published 10-09-2020, Control # 259-06

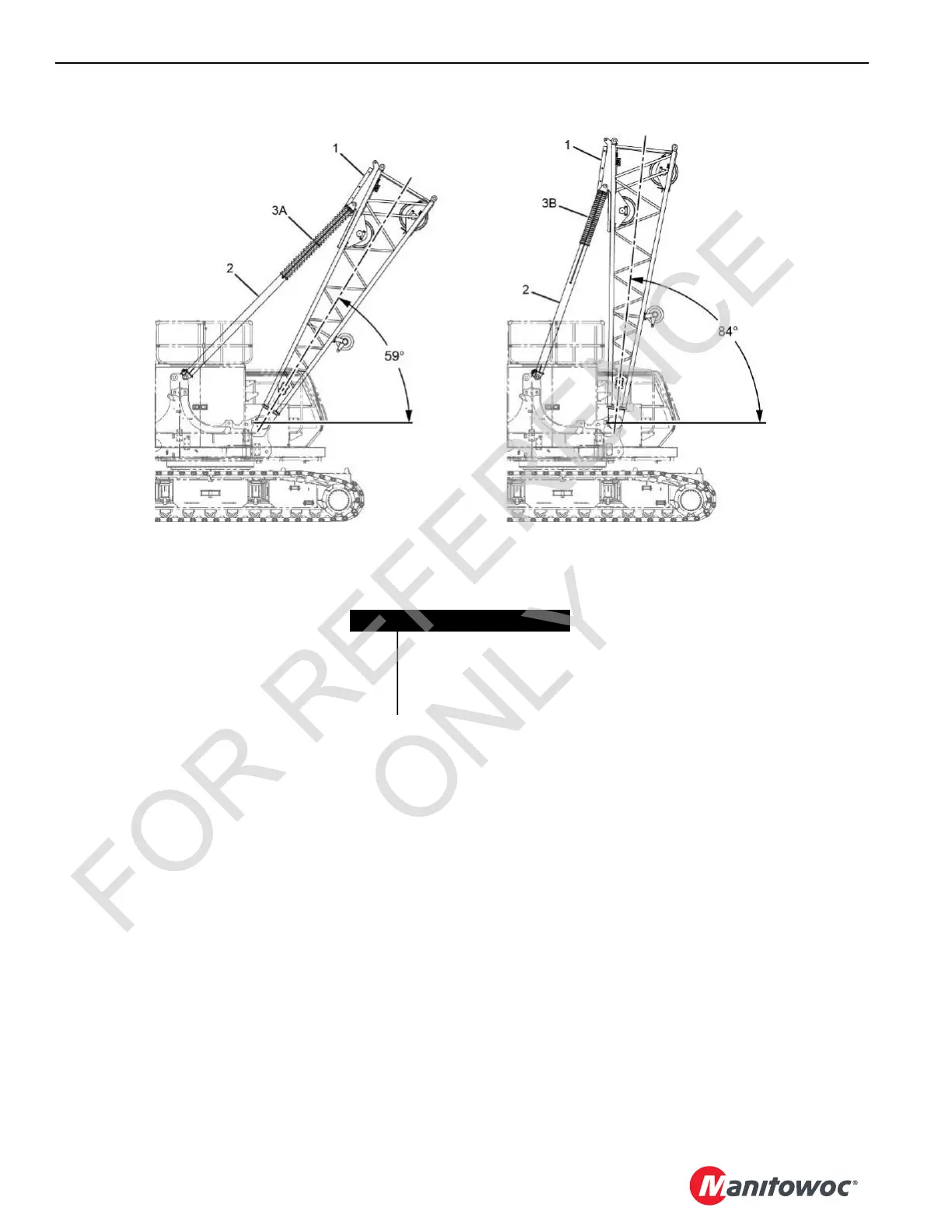

FIGURE 4-4
View B
Physical Stop
View A
Start of Cushioning
Item Description
1Boom Butt
2 Physical Boom Stop (2)
3A Springs (fully relaxed)
3B Springs (fully compressed)
