National Crane 3-29-2018 Control # 610-00 6-15
NBT40-1 SERIES OPERATOR MANUAL SET-UP
Platform Quick Attachment
The platform assembly uses a three point quick attaching
system to attach the platform to the tip of the boom or jib. See
Figure 6-13.
1. Reference (“Jib Operation” 6-2) for jib configuration prior
to attaching aerial platform to jib.
2. For platform attachment to boom, remove and stow the
jib deployment pin (If equipped with a jib) from the lower
ear on the boom nose.
3. Extend boom in order to dis-engage boom from jib
attaching point.
4. Position the required platform attaching hardware on
either the tip of the boom or jib.
5. Insert pins through the hole in the attaching hardware.

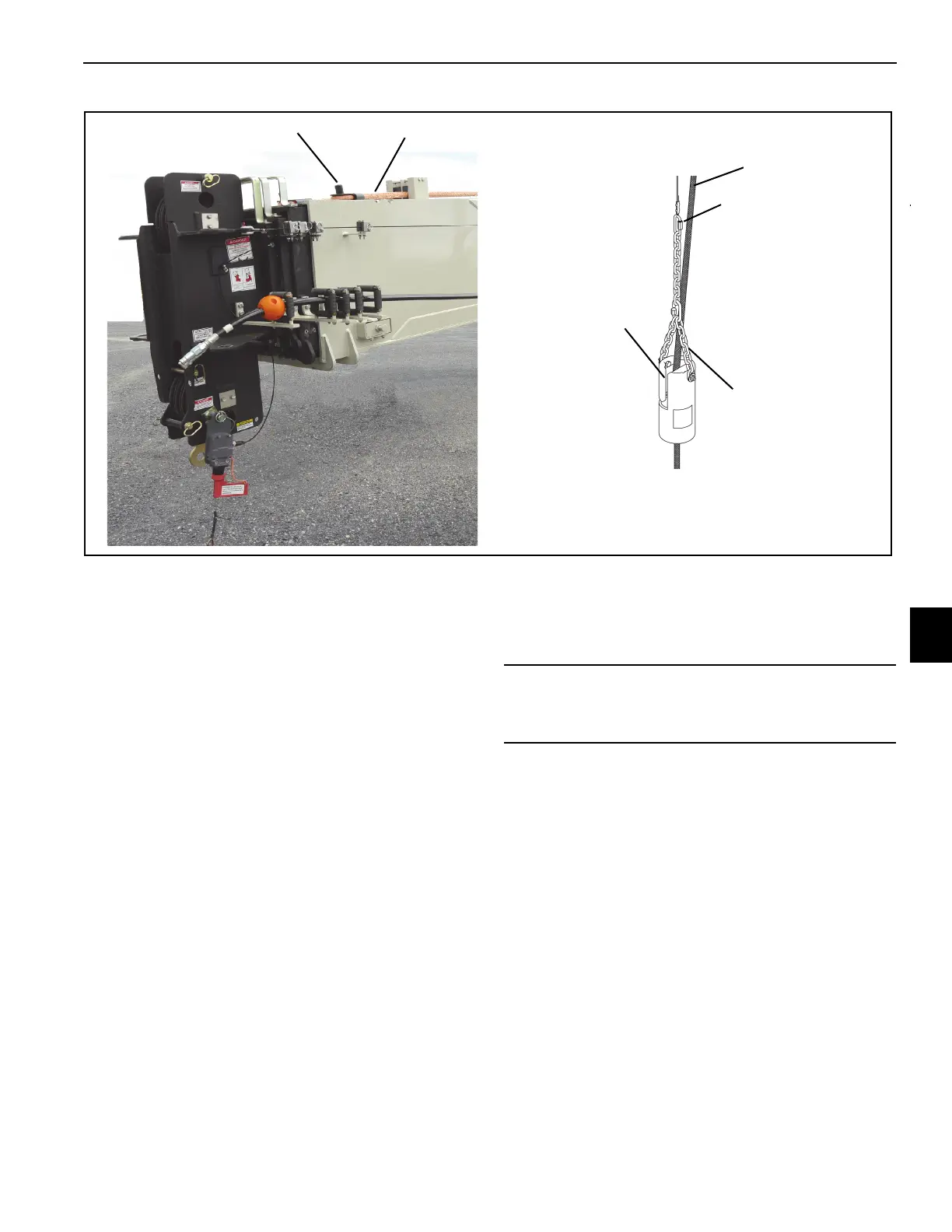

The chain must
be between the
cable and the slot
in the weight.
Link
Slot in A2B
Weight
FIGURE 6-12
Anchor Peg
Hoist Rope
Hoist Rope
Loadline
CAUTION
Keep hands, fingers and body parts clear of the mounting
attachment points. Serious bodily injury may result
To Next Page
